IMA-S Stainless Steel Servo Motor
Hygienic servo actuators for the most demanding food and beverage applications
The IMA-S is a hygienically designed integrated electric servo actuator for the food and beverage processing industry. The IP69K rated design features all 316 stainless steel construction and both hygienic fasteners and cord grips, ideal for open machine designs and effective clean-in-place.
Supports Third Party Drive Integration
Tolomatic’s stainless steel integrated motor actuator — IMA-S — supports integration with a wide range manufacturers’ servo drives.
Tolomatic’s integrated motor products (IMA & IMAS) support integration with a wide range manufacturers’ servo drives. We also support seamless integration with Rockwell Automation through the use of approved custom motor files (CMF) as a Technology and Encompass partner. You can learn more about interfacing the IMA actuator and absolute encoder with Rockwell Automation servo drives by reviewing the installation, maintenance and operation manual.
This product line includes the IMA-SA model which incorporates an option for an internal anti-rotate feature eliminating the need for an external guidance mechanism, ideal for applications such as volumetric filling and pumping.
Feedback options include multi-turn absolute encoders (Hiperface DSL, Hiperface Sin-Cos, EnDat 2.2), incremental encoder, and a resolver to integrate with most PLC or control systems. The hygienic, stainless steel IMA-S servo actuator easily integrates with Rockwell Automation (Allen-Bradley) Kinetix platform through pre-existing motor files (CMF/BLB) for straightforward drive and PLC integration.
Improve hygienic machine design with IMA-S food grade integrated servo motor actuators
- Provides complete control over speed and position at all times
- Hygienic design to allow for food grade cleaning and sanitizing
- Resists corrosion with 316 stainless steel body
- Provides IP69k wash-down protection with blue seals/o-rings and hygienic fasteners/cord grips
- Improves performance, flexibility and efficiency in comparison to fluid power technologies
| Size | IMA-S 22 | IMA-S 33 | IMA-S 33SA |
|---|---|---|---|
| Standard | 12 in. | 18 in. | 12 in. |
| Metric | 305 mm | 457 mm | 305 mm |
| Size | IMA-S 22 | IMA-S 33 | IMA-S 33SA |
|---|---|---|---|
| Standard | 325 lbf | 2,500 lbf | 2,500 lbf |
| Metric | 1.45 kN | 11.1 kN | 11.1 kN |
| Size | IMA-S 22 | IMA-S 33 | IMA-S 33SA |
|---|---|---|---|
| Standard | 19.6 in/sec | 19.6 in/sec | 19.6 in/sec |
| Metric | 500 mm/sec | 500 mm/sec | 500 mm/sec |
Features & Ordering
IMA-S: Hygienic Integrated Servo Actuator Features
The efficient, corrosion resistant 316 stainless steel design of the IMA-S hygienic integrated servo motor actuator is power dense, and features:
- Skewed winding to minimizing cogging torque for smooth, repeatable motion
- A low electric time constraint motor for quick response
- Welded, polished joints to create exceptionally hygienic seams
- Chemically inert, wear resistant blue gaskets and o-rings
- Flexible feedback and cable options including single (DSL) and dual cable
- An FDA-approved field replaceable seal cartridge that is IP69K rated for wash-down protection
IMA-S: Hygienic Integrated Servo Actuator Features
Specifications

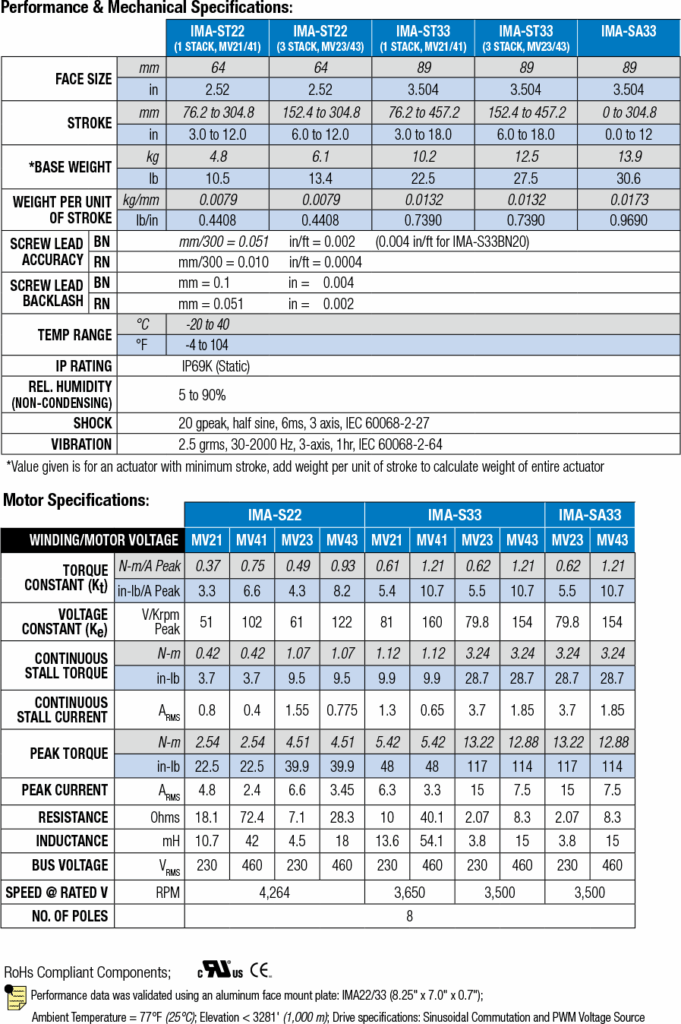

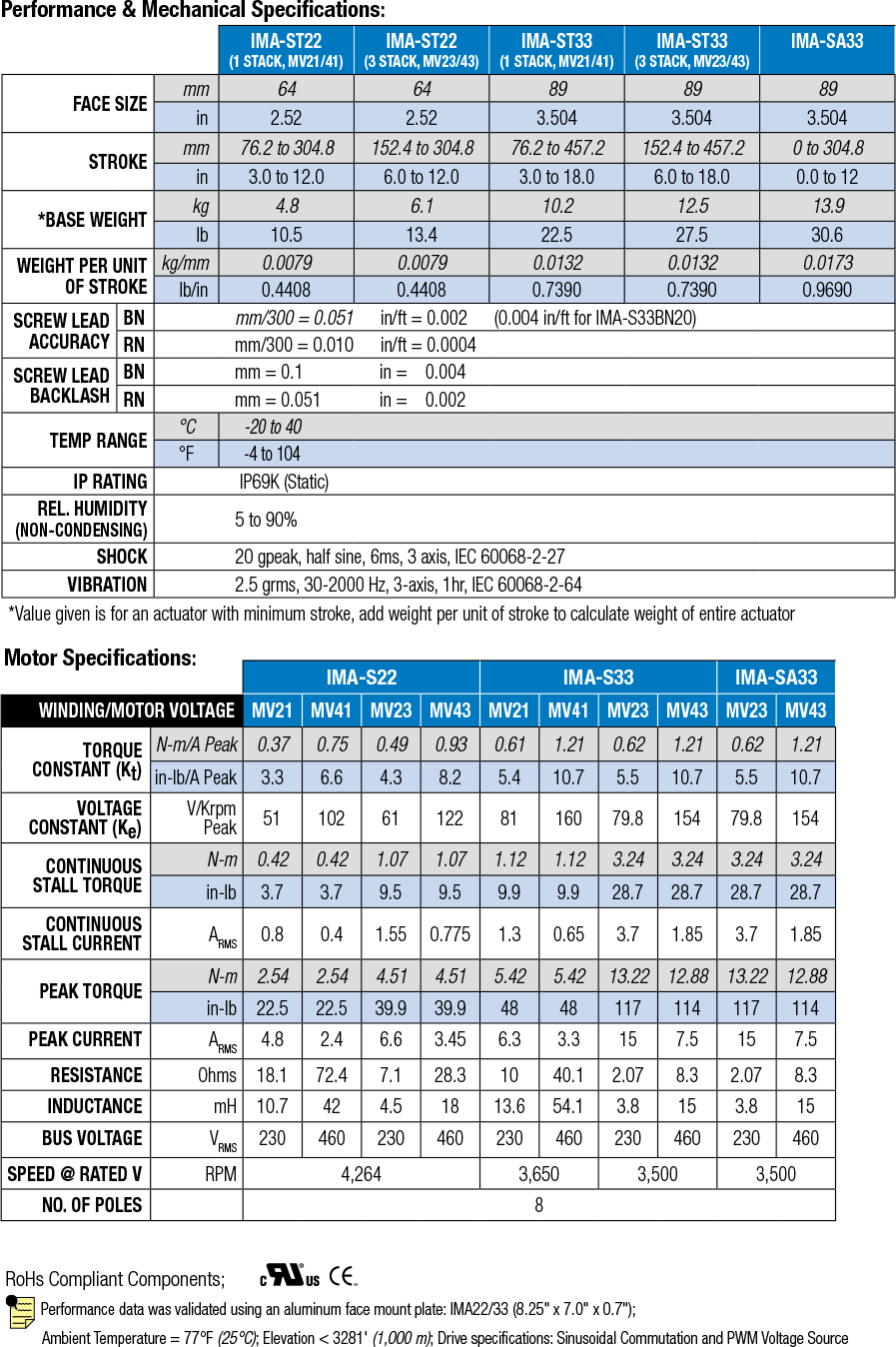

IMA-S Performance & Mechanical Specifications
IMA-S Perf., Mech. & Motor Specifications
Motor Specifications
Critical Speed & Screw Buckling Load-IMA-S
Life
Relubrication, Side Load, Brake
Dimensions
IMA-S Dimensions
IMA-S Options Dimensions (MET, FFG, PCD)
