Float-A-Shaft® 2 to 1 Ratio Right Angle Gearboxes with High Torque Roller Bearing
The Float-A-Shaft® 2 to 1 high torque right angle gearbox offers both standard mounting and flat base mounting for application flexibility and maximum torque capabilities of 720 in-lbs (81.4 Nm).
- Mechanically retained roller bearing for durability
- Allows use of standard transmission shafting
- Hardened steel thrust races and bearings
- Races are keyed to shaft for simultaneous rotation
Order Float-A-Shaft® 2:1 High Torque – Standard Mount
Part Number
0259-0200
0260-0200
0261-0200
0262-0200
0263-0200
“A” Bore Size
1/2 in
1/2 in
1/2 in
1/2 in
1/2 in
“B” Bore Size
3/4 in
3/4 in
1 in
1 in
1 1/4 in
Rotation
RH
LH
RH
LH
RH
A Bore Keyway
1/8 x 1/16 in
1/8 x 1/16 in
1/8 x 1/16 in
1/8 x 1/16 in
1/8 x 1/16 in
B Bore Keyway
3/16 x 3/32 in
3/16 x 3/32 in
1/4 x 1/8 in
1/4 x 1/8 in
1/4 x 1/8 in
Max. Input Torque
890 in-lb at 50 RPM
890 in-lb at 50 RPM
890 in-lb at 50 RPM
890 in-lb at 50 RPM
890 in-lb at 50 RPM
Model Type
U.S. Imperial
U.S. Imperial
U.S. Imperial
U.S. Imperial
U.S. Imperial
Bearing Type
High Torque Roller
High Torque Roller
High Torque Roller
High Torque Roller
High Torque Roller
Mounting Style
Standard Mount
Standard Mount
Standard Mount
Standard Mount
Standard Mount
Price
$544.79
USD
USD
$544.79
USD
USD
$544.79
USD
USD
$544.79
USD
USD
$544.79
USD
USD
Order Float-A-Shaft® 2:1 High Torque – Flat Base Mount
Part Number
0279-0200
0280-0200
0281-0200
0283-0200
0284-0200
“A” Bore Size
1/2 in
1/2 in
1/2 in
1/2 in
1/2 in
“B” Bore Size
3/4 in
3/4 in
1 in
1 1/4 in
1 1/4 in
Rotation
RH
LH
RH
RH
LH
A Bore Keyway
1/8 x 1/16 in
1/8 x 1/16 in
1/8 x 1/16 in
1/8 x 1/16 in
1/8 x 1/16 in
B Bore Keyway
3/16 x 3/32 in
3/16 x 3/32 in
1/4 x 1/8 in
1/4 x 1/8 in
1/4 x 1/8 in
Max. Input Torque
890 in-lb at 50 RPM
890 in-lb at 50 RPM
890 in-lb at 50 RPM
890 in-lb at 50 RPM
890 in-lb at 50 RPM
Model Type
U.S. Imperial
U.S. Imperial
U.S. Imperial
U.S. Imperial
U.S. Imperial
Bearing Type
High Torque Roller
High Torque Roller
High Torque Roller
High Torque Roller
High Torque Roller
Mounting Style
Flat Base Mount
Flat Base Mount
Flat Base Mount
Flat Base Mount
Flat Base Mount
Price
$590.34
USD
USD
$590.34
USD
USD
$590.34
USD
USD
$590.34
USD
USD
$590.34
USD
USD
Float-a-Shaft: Standard 2:1 High Torque Features
Float-a-Shaft: Standard 2:1 High Torque Specs

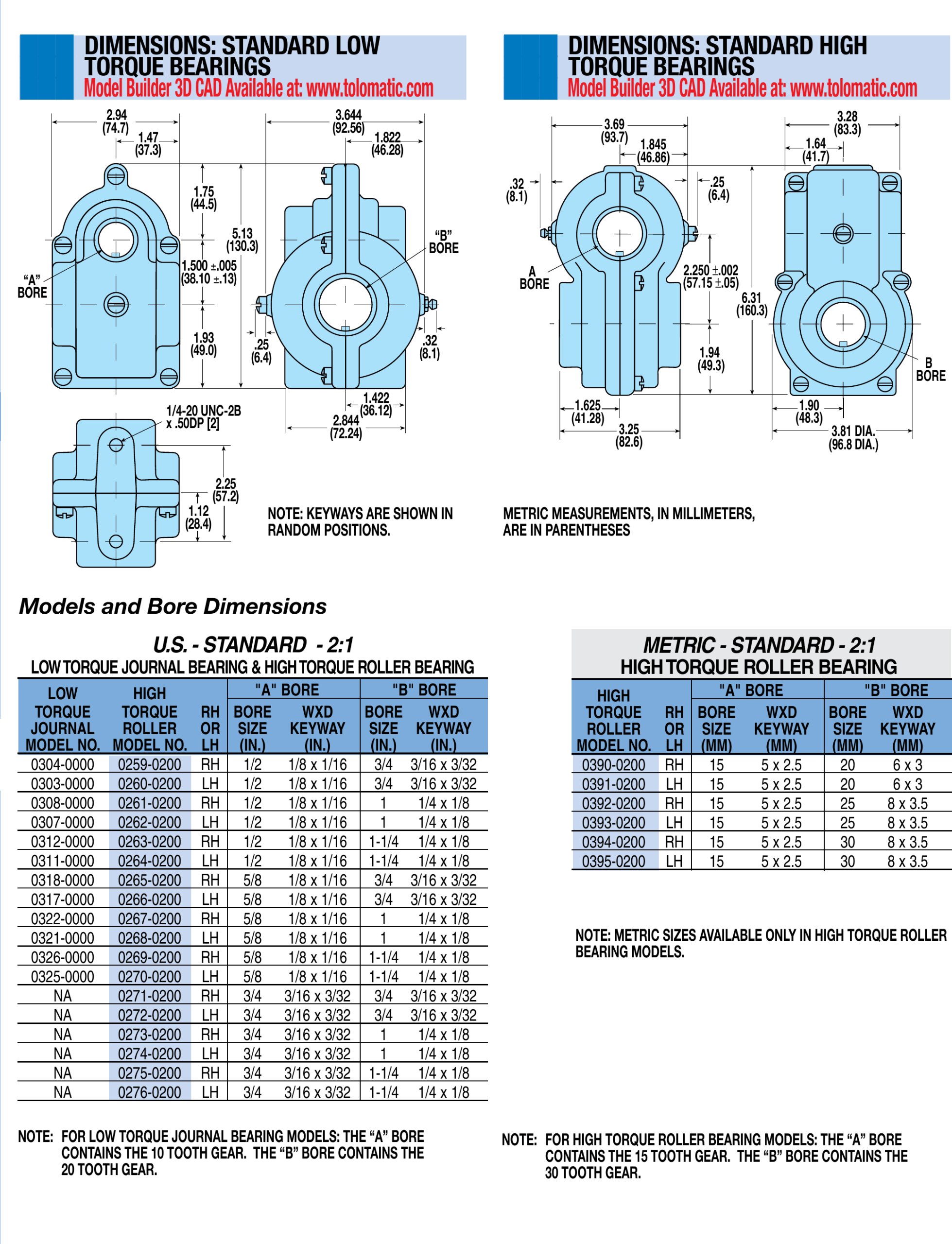

Float-a-Shaft: Standard 2:1 High Torque Dimensions
Float-a-Shaft: Standard 2:1 High Torque Flat Base Dimensions
Float-a-Shaft Rotation & Installation Guidelines
