RSH Hygienic Electric Actuators

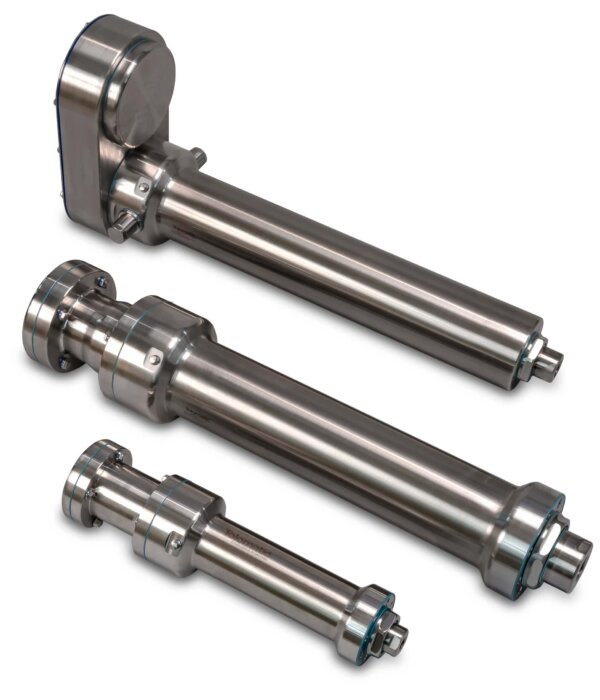

RSH hygienic electric actuators feature 316 stainless steel construction and an IP69K ingress rating.
Tolomatic’s RSH line of hygienically designed stainless steel electric actuators are the perfect solution for food and beverage applications where higher forces are required for pressing, pumping, cutting or slicing. Standard motor mounts for a wide variety of stainless steel servo motor manufacturers, to make your system a complete Stainless Solution.
- 3 body sizes with 316 series stainless steel construction
- Force/thrust capabilities up to 7,943 lbf (35.3 kN)
- Stroke lengths up to 48 inches (1.2 m)
- Ball and roller screw options
- IP69K standard protection against high pressure washdown
Features & Ordering
Download the RSH Brochure for full details on features

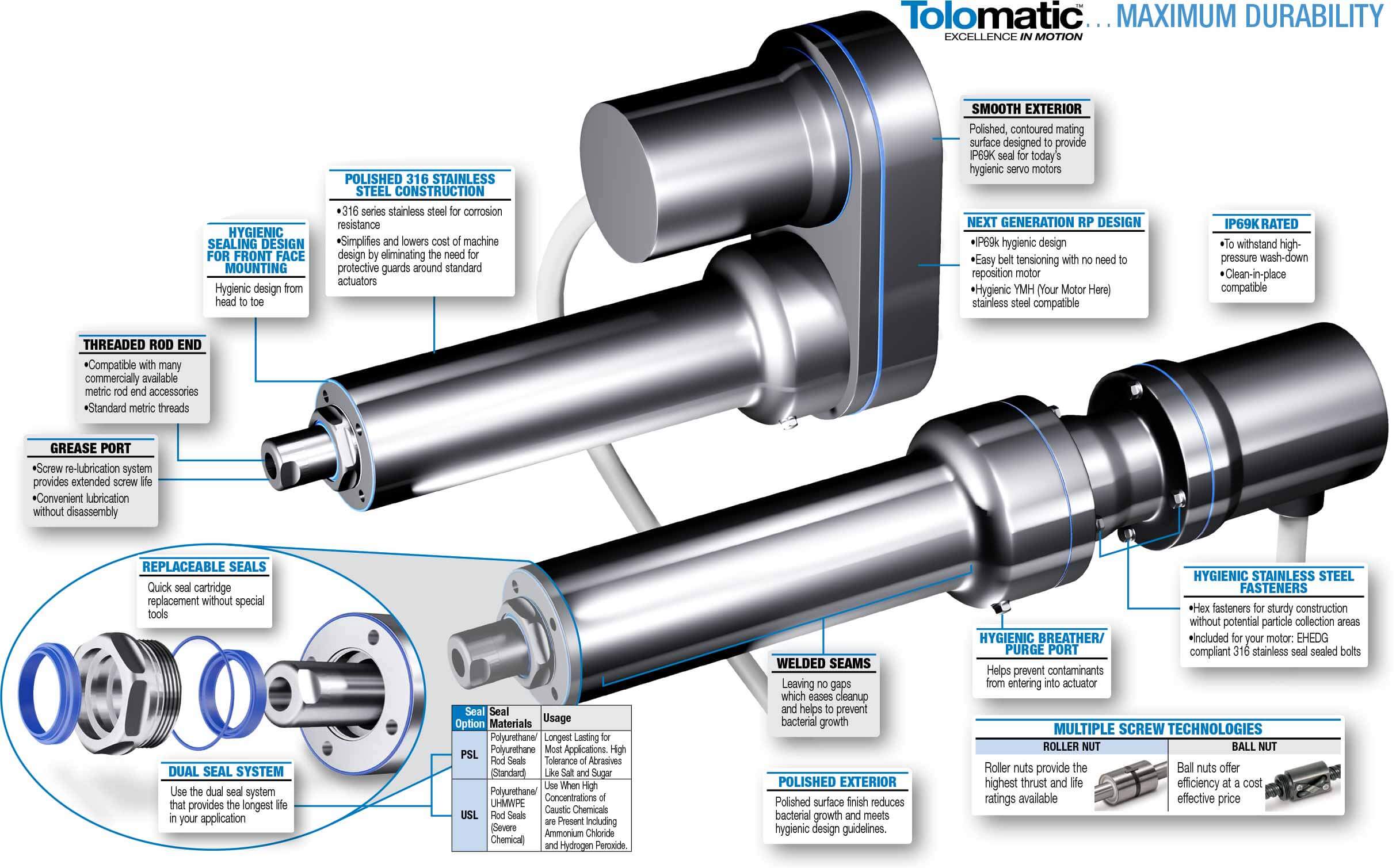

RSH Features
RSH Ordering
Specifications
| Size | Units | RSH22 | RSH25 | RSH30 |
|---|---|---|---|---|
| Maximum Stroke | in (mm) | 39.4 (1,000) | 39.4 (1,000) | 48 (1,219) |
| Maximum Force | lbf (N) | 1,700 (7,562) | 4,159 (18,500) | 7,943 (35,330) |
| Maximum Speed | in/sec (mm/sec) | 19.6 (498) | 19.6 (498) | 19.6 (498) |

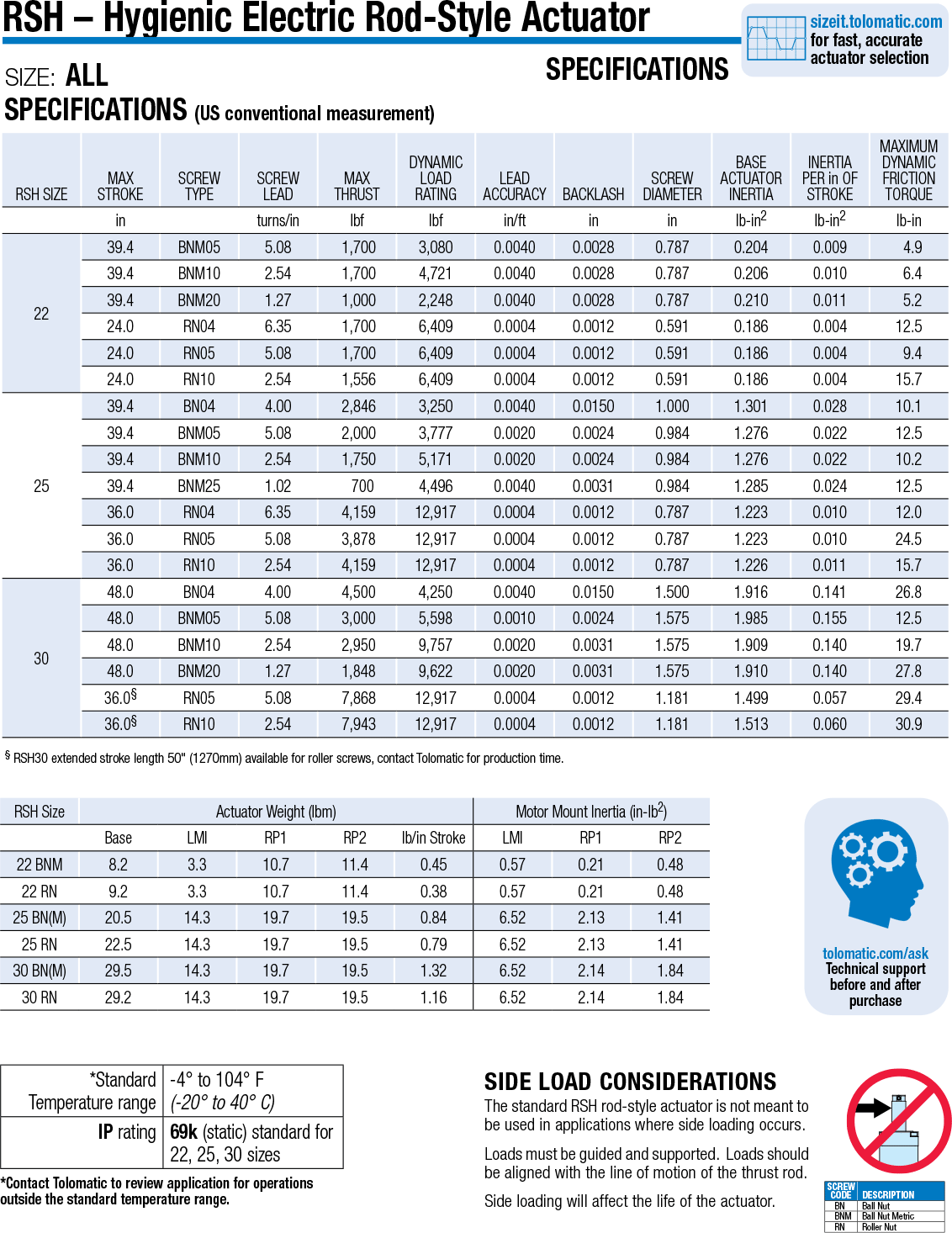

Specifications RSH Hygienic US Measurements

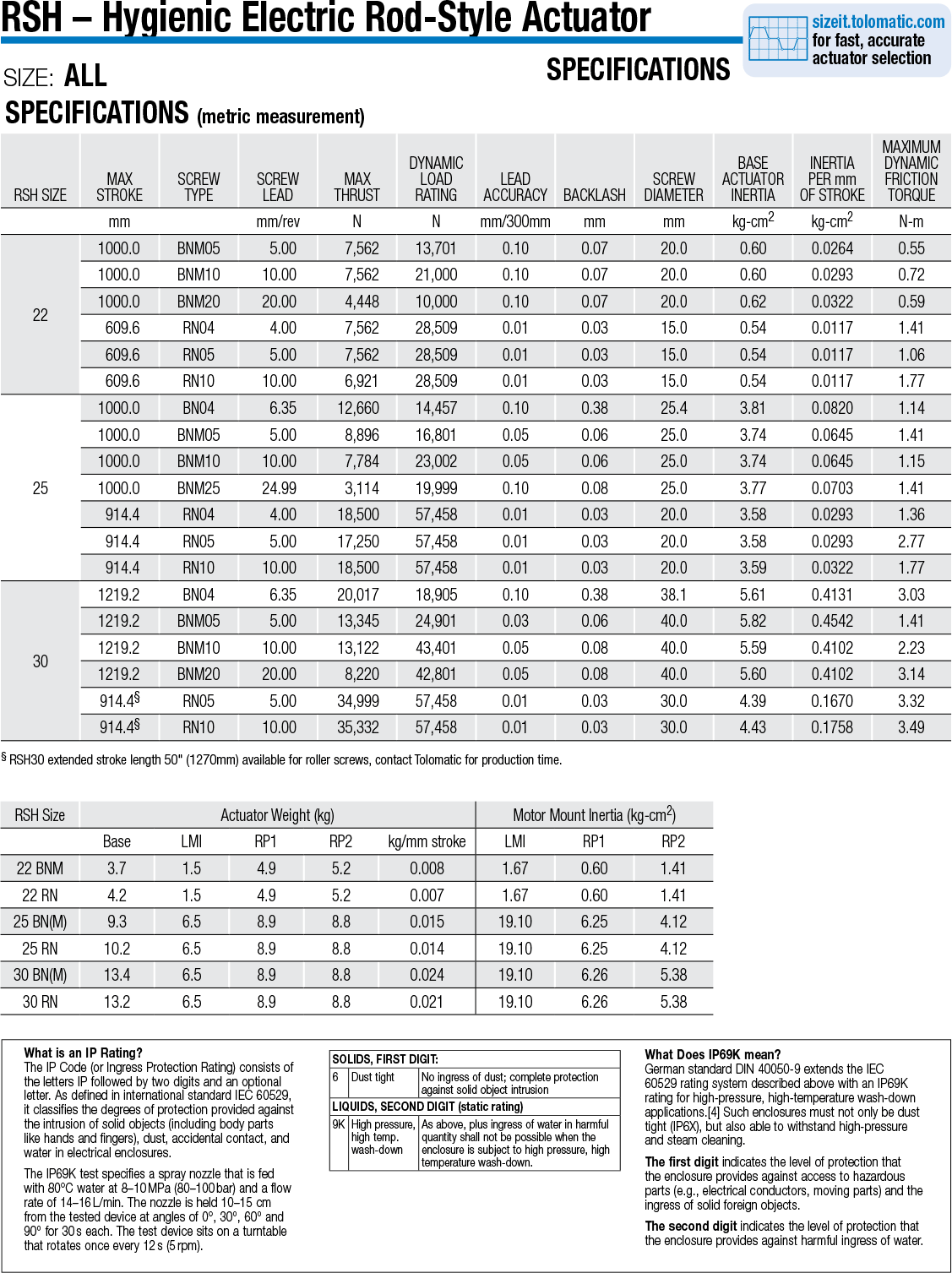

Specifications RSH Hygienic Metric Measurements
RSH Detailed Specifications
| RSH Size | Actuator Weight (lb) | Motor Mount Inertia (in-lb2) | ||||||
|---|---|---|---|---|---|---|---|---|
| Base | LMI | RP1 | RP2 | lb/in Stroke | LMI | RP1 | RP2 | |
| 22 BNM | 8.2 | 3.3 | 10.7 | 11.4 | 0.45 | 0.57 | 0.21 | 0.48 |
| 22 RN | 9.2 | 3.3 | 10.7 | 11.4 | 0.38 | 0.57 | 0.21 | 0.48 |
| 25 BN(M) | 20.5 | 14.3 | 19.7 | 19.5 | 0.84 | 6.52 | 2.13 | 1.41 |
| 25 RN | 22.5 | 14.3 | 19.7 | 19.5 | 0.79 | 6.52 | 2.13 | 1.41 |
| 30 BN(M) | 29.5 | 14.3 | 19.7 | 19.5 | 1.32 | 6.52 | 2.14 | 1.84 |
| 30 RN | 29.2 | 14.3 | 19.7 | 19.5 | 1.16 | 6.52 | 2.14 | 1.84 |
| RSH Size | Actuator Weight (kg) | Motor Mount Inertia (kg-cm2) | ||||||
|---|---|---|---|---|---|---|---|---|
| Base | LMI | RP1 | RP2 | kg/mm stroke | LMI | RP1 | RP2 | |
| 22 BNM | 3.7 | 1.5 | 4.9 | 5.2 | 0.008 | 1.67 | 0.60 | 1.41 |
| 22 RN | 4.2 | 1.5 | 4.9 | 5.2 | 0.007 | 1.67 | 0.60 | 1.41 |
| 25 BN(M) | 9.3 | 6.5 | 8.9 | 8.8 | 0.015 | 19.10 | 6.25 | 4.12 |
| 25 RN | 10.2 | 6.5 | 8.9 | 8.8 | 0.014 | 19.10 | 6.25 | 4.12 |
| 30 BN(M) | 13.4 | 6.5 | 8.9 | 8.8 | 0.024 | 19.10 | 6.26 | 5.38 |
| 30 RN | 13.2 | 6.5 | 8.9 | 8.8 | 0.021 | 19.10 | 6.26 | 5.38 |
| RSH SIZE | MAX STROKE | SCREW TYPE | SCREW LEAD | MAX THRUST | DYNAMIC LOAD RATING | LEAD ACCURACY | BACKLASH | SCREW DIAMETER | BASE ACTUATOR INERTIA | INERTIA PER in OF STROKE | MAXIMUM DYNAMIC FRICTION TORQUE |
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | turns/in | lbf | lbf | in/ft | in | in | lb-in2 | lb-in2 | lb-in | ||
| 22 | 39.4 | BNM05 | 5.08 | 1,700 | 3,080 | 0.0040 | 0.0028 | 0.787 | 0.204 | 0.009 | 4.9 |
| 39.4 | BNM10 | 2.54 | 1,700 | 4,721 | 0.0040 | 0.0028 | 0.787 | 0.206 | 0.010 | 6.4 | |
| 39.4 | BNM20 | 1.27 | 1,000 | 2,248 | 0.0040 | 0.0028 | 0.787 | 0.210 | 0.011 | 5.2 | |
| 24.0 | RN04 | 6.35 | 1,700 | 6,409 | 0.0004 | 0.0012 | 0.591 | 0.186 | 0.004 | 12.5 | |
| 24.0 | RN05 | 5.08 | 1,700 | 6,409 | 0.0004 | 0.0012 | 0.591 | 0.186 | 0.004 | 9.4 | |
| 24.0 | RN10 | 2.54 | 1,556 | 6,409 | 0.0004 | 0.0012 | 0.591 | 0.186 | 0.004 | 15.7 | |
| 25 | 39.4 | BN04 | 4.00 | 2,846 | 3,250 | 0.0040 | 0.0150 | 1.000 | 1.301 | 0.028 | 10.1 |
| 39.4 | BNM05 | 5.08 | 2,000 | 3,777 | 0.0020 | 0.0024 | 0.984 | 1.276 | 0.022 | 12.5 | |
| 39.4 | BNM10 | 2.54 | 1,750 | 5,171 | 0.0020 | 0.0024 | 0.984 | 1.276 | 0.022 | 10.2 | |
| 39.4 | BNM25 | 1.02 | 700 | 4,496 | 0.0040 | 0.0031 | 0.984 | 1.285 | 0.024 | 12.5 | |
| 36.0 | RN04 | 6.35 | 4,159 | 12,917 | 0.0004 | 0.0012 | 0.787 | 1.223 | 0.010 | 12.0 | |
| 36.0 | RN05 | 5.08 | 3,878 | 12,917 | 0.0004 | 0.0012 | 0.787 | 1.223 | 0.010 | 24.5 | |
| 36.0 | RN10 | 2.54 | 4,159 | 12,917 | 0.0004 | 0.0012 | 0.787 | 1.226 | 0.011 | 15.7 | |
| 30 | 48.0 | BN04 | 4.00 | 4,500 | 4,250 | 0.0040 | 0.0150 | 1.500 | 1.916 | 0.141 | 26.8 |
| 48.0 | BNM05 | 5.08 | 3,000 | 5,598 | 0.0010 | 0.0024 | 1.575 | 1.985 | 0.155 | 12.5 | |
| 48.0 | BNM10 | 2.54 | 2,950 | 9,757 | 0.0020 | 0.0031 | 1.575 | 1.909 | 0.140 | 19.7 | |
| 48.0 | BNM20 | 1.27 | 1,848 | 9,622 | 0.0020 | 0.0031 | 1.575 | 1.910 | 0.140 | 27.8 | |
| 36.0§ | RN05 | 5.08 | 7,868 | 12,917 | 0.0004 | 0.0012 | 1.181 | 1.499 | 0.057 | 29.4 | |
| 36.0§ | RN10 | 2.54 | 7,943 | 12,917 | 0.0004 | 0.0012 | 1.181 | 1.513 | 0.060 | 30.9 |
§ RSH30 extended stroke length 50″ (1270mm) available for roller screws, contact Tolomatic for production time.
| *Standard Temperature range | -4° to 104° F (-20° to 40° C) |
|---|---|
| IP rating | 69k (static) standard for 22, 25, 30 sizes |
| RSH SIZE | MAX STROKE | SCREW TYPE | SCREW LEAD | MAX THRUST | DYNAMIC LOAD RATING | LEAD ACCURACY | BACKLASH | SCREW DIAMETER | BASE ACTUATOR INERTIA | INERTIA PER mm OF STROKE | MAXIMUM DYNAMIC FRICTION TORQUE |
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm/rev | N | N | mm/300mm | mm | mm | kg-cm2 | kg-cm2 | N-m | ||
| 22 | 1000.0 | BNM05 | 5.00 | 7,562 | 13,701 | 0.10 | 0.07 | 20.0 | 0.60 | 0.0264 | 0.55 |
| 1000.0 | BNM10 | 10.00 | 7,562 | 21,000 | 0.10 | 0.07 | 20.0 | 0.60 | 0.0293 | 0.72 | |
| 1000.0 | BNM20 | 20.00 | 4,448 | 10,000 | 0.10 | 0.07 | 20.0 | 0.62 | 0.0322 | 0.59 | |
| 609.6 | RN04 | 4.00 | 7,562 | 28,509 | 0.01 | 0.03 | 15.0 | 0.54 | 0.0117 | 1.41 | |
| 609.6 | RN05 | 5.00 | 7,562 | 28,509 | 0.01 | 0.03 | 15.0 | 0.54 | 0.0117 | 1.06 | |
| 609.6 | RN10 | 10.00 | 6,921 | 28,509 | 0.01 | 0.03 | 15.0 | 0.54 | 0.0117 | 1.77 | |
| 25 | 1000.0 | BN04 | 6.35 | 12,660 | 14,457 | 0.10 | 0.38 | 25.4 | 3.81 | 0.0820 | 1.14 |
| 1000.0 | BNM05 | 5.00 | 8,896 | 16,801 | 0.05 | 0.06 | 25.0 | 3.74 | 0.0645 | 1.41 | |
| 1000.0 | BNM10 | 10.00 | 7,784 | 23,002 | 0.05 | 0.06 | 25.0 | 3.74 | 0.0645 | 1.15 | |
| 1000.0 | BNM25 | 24.99 | 3,114 | 19,999 | 0.10 | 0.08 | 25.0 | 3.77 | 0.0703 | 1.41 | |
| 914.4 | RN04 | 4.00 | 18,500 | 57,458 | 0.01 | 0.03 | 20.0 | 3.58 | 0.0293 | 1.36 | |
| 914.4 | RN05 | 5.00 | 17,250 | 57,458 | 0.01 | 0.03 | 20.0 | 3.58 | 0.0293 | 2.77 | |
| 914.4 | RN10 | 10.00 | 18,500 | 57,458 | 0.01 | 0.03 | 20.0 | 3.59 | 0.0322 | 1.77 | |
| 30 | 1219.2 | BN04 | 6.35 | 20,017 | 18,905 | 0.10 | 0.38 | 38.1 | 5.61 | 0.4131 | 3.03 |
| 1219.2 | BNM05 | 5.00 | 13,345 | 24,901 | 0.03 | 0.06 | 40.0 | 5.82 | 0.4542 | 1.41 | |
| 1219.2 | BNM10 | 10.00 | 13,122 | 43,401 | 0.05 | 0.08 | 40.0 | 5.59 | 0.4102 | 2.23 | |
| 1219.2 | BNM20 | 20.00 | 8,220 | 42,801 | 0.05 | 0.08 | 40.0 | 5.60 | 0.4102 | 3.14 | |
| 914.4§ | RN05 | 5.00 | 34,999 | 57,458 | 0.01 | 0.03 | 30.0 | 4.39 | 0.1670 | 3.32 | |
| 914.4§ | RN10 | 10.00 | 35,332 | 57,458 | 0.01 | 0.03 | 30.0 | 4.43 | 0.1758 | 3.49 |
§ RSH30 extended stroke length 50″ (1270mm) available for roller screws, contact Tolomatic for production time.
| *Standard Temperature range | -4° to 104° F (-20° to 40° C) |
|---|---|
| IP rating | 69k (static) standard for 22, 25, 30 sizes |
Dimensions
RSH 22, 25, 30 Dimensions
