MXE-P Linear Actuators

The MXE-P has a profiled rail that guides the carrier across the entire extrusion for high load capability.

The MXE is Tolomatic’s most advanced Screw driven linear actuator series, with 2 different carrier guide options: Solid Bearing (S) and Profiled Rail (P). The Profiled Rail carrier provides the highest load support and rigidity of the MXB series. The recirculating ball bearing linear guides allow for long operation life, easy maintenance, and high speed travel.

6 Body Sizes
Maximum Load carrying capacity up to 2,583 lbf (1,171 kg)
Stroke lengths up to 134 in (3.4m)
Travel speeds up to 60 in/s (1.5 m/s)
Acme and Ball Screw drive options
Auxiliary carrier option for increased load and moment support

Download Brochure Watch Video Download Flyer Your Motor Here® Size Your Actuator Request a Quote Contact an Engineer

Features & Ordering

Download the MXE-P Brochure for full details on features

MXE-P Brochure

MXE-P Features

View and Print

MXE-P Ordering

View and Print

Specifications

MXE-P Electric Rodless Actuator Specifications
Specifications	Units	MXE16P	MXE25P	MXE32P	MXE40P	MXE50P	MXE63P
Maximum Stroke	in (mm)	31 (787)	134 (3,404)	133 (3,378)	131 (3,327)	131 (3,327)	125 (3,175)
Maximum Force	lbf (N)	45 (200)	170 (756)	170 (756)	800 (3,327)	2,700 (12,010)	4,300 (19,127)
Maximum Load	lbs (kg)	217 (98)	449 (204)	569 (258)	736 (334)	1,014 (460)	1,292 (586)
Maximum Speed	in/sec (mm/sec)	42 (1,067)	60 (1,524)	60 (1,524)	60 (1,524)	60 (1,524)	50 (1,270)

IMAGE--MXE-P Actuator Specs & Breakaway Torque

View and Print

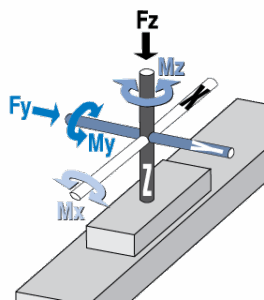

MXE-P Bending Moments and Load - US Measurements

Size	Maximum Bending Moments			Maximum Load
	Mx	My	Mz	Fy	Fz
	in-lbs	in-lbs	in-lbs	lbf	lbf
16	39	339	339	217	217
25	126	502	377	449	449
32	226	1,344	1,344	569	569
40	604	1,913	1,913	736	736
50	811	3,483	3,483	1,014	1,014
63	1,019	5,339	5,339	1,292	1,292

See MXE catalog 8300-4000 for complete information
The above ratings are the maximum values for shock-free, vibration-free operation in a typical industrial environment, which must not be exceeded even in dynamic operation. Contact Tolomatic for assistance in selecting the most appropriate actuator for your application.
Mating surface of mounted component must maintain a flatness of at least .0015″ [0.040 mm]

MXE-P Bending Moments and Load - Metric Measurements

Size	Maximum Bending Moments			Maximum Load
	Mx	My	Mz	Fy	Fz
	N-m	N-m	N-m	N	N
16	4.5	38.3	38.3	966	966
25	14.3	56.7	42.6	1,996	1,996
32	25.6	152 .0	152 .0	2,531	2,531
40	68.2	216 .0	216 .0	3,274	3,274
50	91.7	394 .0	394 .0	4,510	4,510
63	115 .0	603 .0	603 .0	5,745	5,745

MXE-P Bending Moments and Load / Auxiliary Carrier - US Measurements

Size	“D” Min.	Maximum Bending Moments*			Maximum Load
	“D” Min.	Mx a	My a	Mz a	Fy a	Fz a
	in	in-lbs	in-lbs	in-lbs	lbf	lbf
16	5.0	79	620	620	434	434
25	6.0	252	1,610	1,610	898	898
32	7.0	453	2,202	2,202	1,138	1,138
40	8.5	1,208	3,601	3,601	1,472	1,472
50	8.6	1,623	4,966	4,966	2,028	2,028
63	13.0	2,038	9,508	9,508	2,583	2,583

*At minimum “D” distance
(See graphs for Mya and Mza moment with increased “D” dimensions MXE catalog 8300-4000 and complete information)
The above ratings are the maximum values for shock-free, vibration-free operation in a typical industrial environment, which must not be exceeded even in dynamic operation. Contact Tolomatic for assistance in selecting the most appropriate actuator for your application.
Mating surface of mounted component must maintain a flatness of at least .0015″ [0.040 mm]

MXE-P Bending Moments and Load / Auxiliary Carrier - Metric Measurements

Size	“D” Min.	Maximum Bending Moments*			Maximum Load
	“D” Min.	Mx a	My a	Mz a	Fy a	Fz a
	mm	N-m	N-m	N-m	N	N
16	127	8.9	70.0	70.0	1,932	1,932
25	152	28.5	182	182	3,993	3,993
32	178	51.1	249	249	5,063	5,063
40	216	136 .0	407	407	6,549	6,549
50	218	183 .0	561	561	9,020	9,020
63	330	230 .0	1,074	1,074	11,490	11,490

MXE Screw Specifications - US Measurements

Size	Screw Dia.	Screw Code	Screw Pitch	Screw Lead	Lead Accuracy	Backlash	Max. Thrust	Max. Stroke
Size	in	Screw Code	rev/in	in	in/ft	in	lb	in
16	0.250	SN02	2.00	0.50	0.005	0.015	45	31.0
	0.250	SN04	4.00	0.25	0.005	0.015	45	31.0
	0.250	SN16	16.00	0.06	0.005	0.015	45	31.0
25	0.375	BN08	8.00	0.13	0.004	0.015	130	62.3
	0.375	BNL08	8.00	0.13	0.004	0.002	130	62.3
	0.394	BNM10	2.54	0.39	0.004	0.003	412	62.3
	0.500	SN01	1.00	1.00	0.006	0.007	170	98.3
	0.500	SN02	2.00	0.50	0.005	0.007	170	134.3
	0.500	SN05	5.00	0.20	0.006	0.007	170	134.3
32	0.375	BN08	8.00	0.13	0.004	0.015	130	61.9
	0.375	BNL08	8.00	0.13	0.004	0.002	130	61.9
	0.394	BNM10	2.54	0.39	0.004	0.003	412	61.9
	0.500	SN01	1.00	1.00	0.006	0.007	170	97.9
	0.500	SN02	2.00	0.50	0.005	0.007	170	133.9
	0.500	SN05	5.00	0.20	0.006	0.007	170	133.9
40	0.500	BN02	2.00	0.50	0.003	0.015	800	59.9
	0.500	BNL02	2.00	0.50	0.003	0.002	800	59.9
	0.625	BN05	5.00	0.20	0.003	0.015	800	59.9
	0.625	BNL05	5.00	0.20	0.003	0.002	800	59.9
	0.625	SN02	2.00	0.50	0.005	0.007	200	131.9
	0.750	SN01	1.00	1.00	0.005	0.007	300	131.9
50	0.750	BN02	2.00	0.50	0.004	0.015	2,700	130.7
	0.750	BNL02	2.00	0.50	0.004	0.002	2,700	130.7
	0.750	BN05	5.00	0.20	0.003	0.015	950	130.7
	0.750	BNL05	5.00	0.20	0.003	0.002	950	130.7
63	1.000	BN01	1.00	1.00	0.004	0.015	2,500	125.4
	1.000	BNL01	1.00	1.00	0.004	0.002	2,500	125.4
	1.000	BN02	2.00	0.50	0.004	0.015	4,300	125.4
	1.000	BNL02	2.00	0.50	0.004	0.002	4,300	125.4
	1.000	BN04	4.00	0.25	0.004	0.015	3,300	125.4
	1.000	BNL04	4.00	0.25	0.004	0.002	3,300	125.4

MXE Screw Specifications - Metric Measurements

Size	Screw Dia.	Screw Code	Screw Lead	Lead Accuracy	Backlash	Max. Thrust	Max. Stroke
Size	mm	Screw Code	mm	mm/ 300mm	mm	N	mm
16	6.35	SN02	12.70	0.13	0.38	200	787.4
	6.35	SN04	6.35	0.13	0.38	200	787.4
	6.35	SN16	1.59	0.13	0.38	200	787.4
25	9.53	BN08	3.18	0.10	0.38	578	1,582.4
	9.53	BNL08	3.18	0.10	0.05	578	1,582.4
	10.00	BNM10	10.00	0.10	0.06	1,832	1,582.4
	12.70	SN01	25.40	0.15	0.18	756	2,496.8
	12.70	SN02	12.70	0.13	0.18	756	3,411.2
	12.70	SN05	5.08	0.15	0.18	756	3,411.2
32	9.53	BN08	3.18	0.10	0.38	578	1,572.3
	9.53	BNL08	3.18	0.10	0.05	578	1,572.3
	10.00	BNM10	10.00	0.10	0.06	1,832	1,572.3
	12.70	SN01	25.40	0.15	0.18	756	2,486.7
	12.70	SN02	12.70	0.13	0.18	756	3,401.1
	12.70	SN05	5.08	0.15	0.18	756	3,401.1
40	12.70	BN02	12.70	0.08	0.38	3,559	1,521.5
	12.70	BNL02	12.70	0.08	0.05	3,559	1,521.5
	15.88	BN05	5.08	0.08	0.38	3,559	1,521.5
	15.88	BNL05	5.08	0.08	0.05	3,559	1,521.5
	15.88	SN02	12.70	0.13	0.18	890	3,350.3
	19.05	SN01	25.40	0.13	0.18	1,334	3,350.3
50	19.05	BN02	12.70	0.10	0.38	12,010	3,319.8
	19.05	BNL02	12.70	0.10	0.05	12,010	3,319.8
	19.05	BN05	5.08	0.08	0.38	4,226	3,319.8
	19.05	BNL05	5.08	0.08	0.05	4,226	3,319.8
63	25.40	BN01	25.40	0.10	0.38	11,121	3,185.2
	25.40	BNL01	25.40	0.10	0.05	11,121	3,185.2
	25.40	BN02	12.70	0.10	0.38	19,127	3,185.2
	25.40	BNL02	12.70	0.10	0.05	19,127	3,185.2
	25.40	BN04	6.35	0.10	0.38	14,679	3,185.2
	25.40	BNL04	6.35	0.10	0.05	14,679	3,185.2

MXE Breakaway Torque - US Measurements

SIZE	SCREW DIA.	SCREW CODE	BREAKAWAY TORQUE
	SCREW DIA.	SCREW CODE	SINGLE CARRIER	AUXILIARY CARRIER
	in		oz-in	oz-in
MXE16	0.250	SN02	10	14
	0.250	SN04	10	14
	0.250	SN16	10	14
MXE25	0.375	BN08	16	18
	0.375	BNL08	16	18
	0.394	BNM10	16	18
	0.500	SN01	30	46
	0.500	SN02	25	35
	0.500	SN05	18	22
MXE32	0.375	BN08	16	18
	0.375	BNL08	16	18
	0.500	BNM10	30	46
	0.394	SN01	16	18
	0.500	SN02	25	35
	0.500	SN05	18	22
MXE40	0.500	BN02	28	35
	0.500	BNL02	28	35
	0.625	BN05	35	45
	0.625	BNL05	35	45
	0.625	SN02	35	44
	0.750	SN01	50	72
MXE50	0.750	BN02	40	50
	0.750	BNL02	40	50
	0.750	BN05	35	45
	0.750	BNL05	35	45
MXE63	1.000	BN01	75	107
	1.000	BNL01	75	107
	1.000	BN02	75	107
	1.000	BNL02	75	107
	1.000	BN04	85	121
	1.000	BNL04	85	121

MXE Breakaway Torque - Metric Measurements

SIZE	SCREW DIA.	SCREW CODE	BREAKAWAY TORQUE
	SCREW DIA.	SCREW CODE	SINGLE CARRIER	AUXILIARY CARRIER
	mm		N-m	N-m
MXE16	6.35	SN02	0.071	0.099
	6.35	SN04	0.071	0.099
	6.35	SN16	0.071	0.099
MXE25	9.53	BN08	0.113	0.127
	9.53	BNL08	0.113	0.127
	10.00	BNM10	0.113	0.127
	12.70	SN01	0.212	0.325
	12.70	SN02	0.177	0.247
	12.70	SN05	0.127	0.155
MXE32	9.53	BN08	0.113	0.127
	9.53	BNL08	0.113	0.127
	10.00	BNM10	0.113	0.127
	12.70	SN01	0.212	0.325
	12.70	SN02	0.177	0.247
	12.70	SN05	0.127	0.155
MXE40	12.70	BN02	0.198	0.247
	12.70	BNL02	0.198	0.247
	15.88	BN05	0.247	0.318
	15.88	BNL05	0.247	0.318
	15.88	SN02	0.245	0.311
	19.05	SN01	0.353	0.508
MXE50	19.05	BN02	0.282	0.353
	19.05	BNL02	0.282	0.353
	19.05	BN05	0.247	0.318
	19.05	BNL05	0.247	0.318
MXE63	25.40	BN01	0.530	0.756
	25.40	BNL01	0.530	0.756
	25.40	BN02	0.530	0.756
	25.40	BNL02	0.530	0.756
	25.40	BN04	0.600	0.855
	25.40	BNL04	0.600	0.855

MXE-P Reflected Inertia - US Measurements

Size	Screw Dia.	Screw Code	Reflected Inertia	Reflected Inertia
				Base Actuator		Per in of Stroke
				In-line	Rev Parallel	Per in of Stroke
	in		rev/in	lb-in²	lb-in²	lb-in²
16	0.250	SN02	2.00	0.0069	0.0069	0.0001
	0.250	SN04	4.00	0.0023	0.0023	0.0001
	0.250	SN16	16.00	0.0009	0.0009	0.0001
25	0.375	BN08	8.00	0.0063	0.0063	0.0005
	0.375	BNL08	8.00	0.0063	0.0063	0.0005
	0.394	BNM10	2.54	0.0063	0.0063	0.0005
	0.500	SN01	1.00	0.0541	0.0541	0.0017
	0.500	SN02	2.00	0.0224	0.0224	0.0017
	0.500	SN05	5.00	0.0135	0.0135	0.0017
32	0.375	BN08	8.00	0.0068	0.0068	0.0005
	0.375	BNL08	8.00	0.0068	0.0068	0.0005
	0.500	BNM10	2.54	0.1005	0.1015	0.0017
	0.394	SN01	1.00	0.0063	0.0063	0.0005
	0.500	SN02	2.00	0.0340	0.0350	0.0017
	0.500	SN05	5.00	0.0153	0.0163	0.0017
40	0.500	BN02	2.00	0.0544	0.0545	0.0017
	0.500	BNL02	2.00	0.0544	0.0545	0.0017
	0.625	BN05	5.00	0.0512	0.0518	0.0042
	0.625	BNL05	5.00	0.0512	0.0518	0.0042
	0.625	SN02	2.00	0.0842	0.0848	0.0042
	0.750	SN01	1.00	0.2276	0.2282	0.0087
50	0.750	BN02	2.00	0.1565	0.1578	0.0087
	0.750	BNL02	2.00	0.1565	0.1578	0.0087
	0.750	BN05	5.00	0.1124	0.1137	0.0087
	0.750	BNL05	5.00	0.1124	0.1137	0.0087
63	1.000	BN01	1.00	0.9466	0.9474	0.0275
	1.000	BNL01	1.00	0.9466	0.9474	0.0275
	1.000	BN02	2.00	0.6116	0.6124	0.0275
	1.000	BNL02	2.00	0.6116	0.6124	0.0275
	1.000	BN04	4.00	0.5282	0.5290	0.0275
	1.000	BNL04	4.00	0.5282	0.5290	0.0275

MXE-P Reflected Inertia - Metric Measurements

Size	Screw Dia.	Screw Code	Reflected Inertia
			Base Actuator		Per 25mm of Stroke
			In-line	Rev Parallel	Per 25mm of Stroke
	mm		kg-cm²	kg-cm²	kg-cm²
16	6.35	SN02	0.0202	0.0202	0.0003
	6.35	SN04	0.0067	0.0067	0.0003
	6.35	SN16	0.0026	0.0026	0.0003
25	9.53	BN08	0.0183	0.0183	0.0015
	9.53	BNL08	0.0183	0.0183	0.0015
	10.00	BNM10	0.0183	0.0183	0.0015
	12.70	SN01	0.1583	0.1583	0.0050
	12.70	SN02	0.0654	0.0654	0.0050
	12.70	SN05	0.0395	0.0395	0.0050
32	9.53	BN08	0.0198	0.0198	0.0015
	9.53	BNL08	0.0198	0.0198	0.0015
	10.00	BNM10	0.0183	0.0183	0.0015
	12.70	SN01	0.2940	0.2969	0.0050
	12.70	SN02	0.0994	0.1023	0.0050
	12.70	SN05	0.0449	0.0478	0.0050
40	12.70	BN02	0.1593	0.1594	0.0050
	12.70	BNL02	0.1593	0.1594	0.0050
	15.88	BN05	0.1500	0.1517	0.0123
	15.88	BNL05	0.1500	0.1517	0.0123
	15.88	SN02	0.2463	0.2480	0.0123
	19.05	SN01	0.6661	0.6679	0.0255
50	19.05	BN02	0.4580	0.4618	0.0255
	19.05	BNL02	0.4580	0.4618	0.0255
	19.05	BN05	0.3289	0.3327	0.0255
	19.05	BNL05	0.3289	0.3327	0.0255
63	25.40	BN01	2.7688	2.7711	0.0805
	25.40	BNL01	2.7688	2.7711	0.0805
	25.40	BN02	1.7889	1.7813	0.0805
	25.40	BNL02	1.7889	1.7813	0.0805
	25.40	BN04	1.5450	1.5473	0.0805
	25.40	BNL04	1.5450	1.5473	0.0805

MXE-P Weight, Straightness, Temp - US Measurements

SIZE	WEIGHT			STRAIGHTNESS / FLATNESS***	TEMP. RANGE
	CARRIER*	BASE ACTUATOR**	PER in OF STROKE	STRAIGHTNESS / FLATNESS***	TEMP. RANGE
	lb	lb	lb/in	in	°F
16	0.58	1.43	0.12	.00067 x L†	40 to 130
25	1.02	2.44	0.25
32	2.12	3.30	0.37
40	3.72	6.88	0.58
50	6.97	18.27	0.84
63	14.92	39.34	1.36

*including nut bracket assembly
**Excluding nut bracket and carrier assembly
***Actuator mounted on a flat surface and fully restrained (See tube clamp graphs MXE catalog 8300-4000)
† L = Maximum distance between tube clamps

MXE-P Weight, Straightness, Temp - Metric Measurements

SIZE	WEIGHT			STRAIGHTNESS / FLATNESS***	TEMP. RANGE
	CARRIER*	BASE ACTUATOR**	PER mm OF STROKE	STRAIGHTNESS / FLATNESS***	TEMP. RANGE
	kg	kg	kg/mm	mm	°C
16	0.26	0.65	0.0021	.0170 x L †	4 to 54
25	0.46	1.11	0.0045
32	0.96	1.50	0.0066
40	1.69	3.12	0.0104
50	3.16	8.29	0.0150
63	6.77	17.84	0.0243

Dimensions

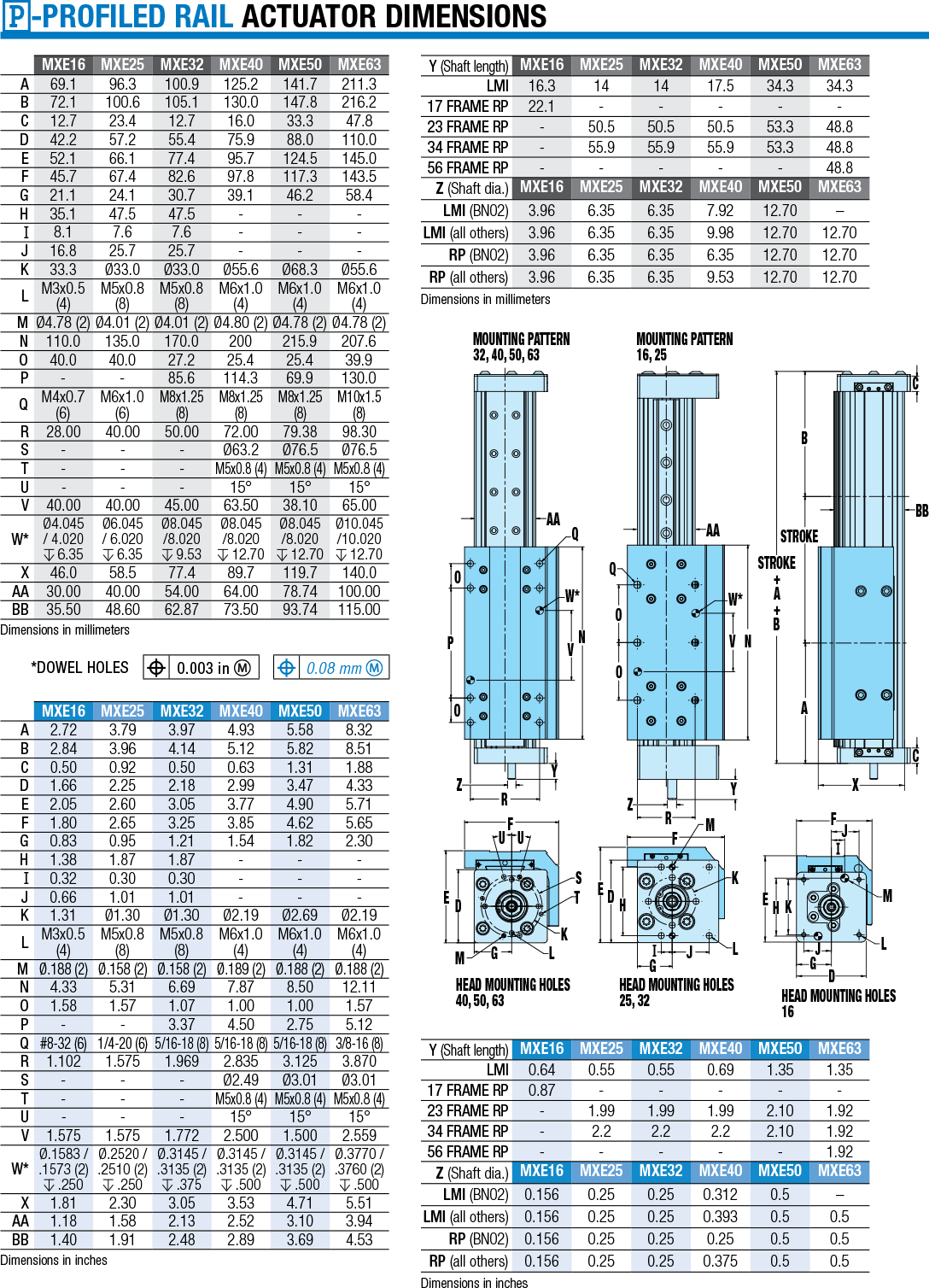

MXE-P Profiled Rail Actuator Dimensions

View and Print

Get CAD

Manuals & Part Sheets

Additional Resources

Information Center:

Filter by language:

English

Chinese

German

Spanish

Application Checklists

Electric Rodless Actuator Application Checklist

Catalogs & Brochures

Certifications

E-Books

Flyers

MXE-P Profiled Rail Rodless Electric Actuators - Flyer

Guides

Tech Bulletins

Mounting a Motor to an Electric Actuator

Terms & Conditions

Videos

Product Overview: MXE-P Screw Driven Actuator

White Papers

Success Stories

Semiconductor Manufacturing

Product Family: Electric
Product Used: ERD15 & MXE40P

Vacuum Induction Furnace

Application Description:
Using vacuum induction melting to heat treat and refine ingot material/chemistry for use in a variety of different molds

Print Head Positioning

Application Description:
Positioning head for large format printing press

Crucible Lift Assembly

Application Description:
A crucible lift assembly for the manufacture of semiconductor chips for use in electrical components

Welding & Inspection

Application Description: Positioning a thermal welding device and camera system that verifies each weld for quality.

MXE-P Linear Actuators

The MXE-P has a profiled rail that guides the carrier across the entire extrusion for high load capability.

Features & Ordering

MXE-P Features

MXE-P Ordering

Specifications

MXE-P Electric Rodless Actuator Specifications

IMAGE--MXE-P Actuator Specs & Breakaway Torque

MXE-P Bending Moments and Load - US Measurements

MXE-P Bending Moments and Load - Metric Measurements

MXE-P Bending Moments and Load / Auxiliary Carrier - US Measurements

MXE-P Bending Moments and Load / Auxiliary Carrier - Metric Measurements

MXE Screw Specifications - US Measurements

MXE Screw Specifications - Metric Measurements

MXE Breakaway Torque - US Measurements

MXE Breakaway Torque - Metric Measurements

MXE-P Reflected Inertia - US Measurements

MXE-P Reflected Inertia - Metric Measurements

MXE-P Weight, Straightness, Temp - US Measurements

MXE-P Weight, Straightness, Temp - Metric Measurements

Dimensions

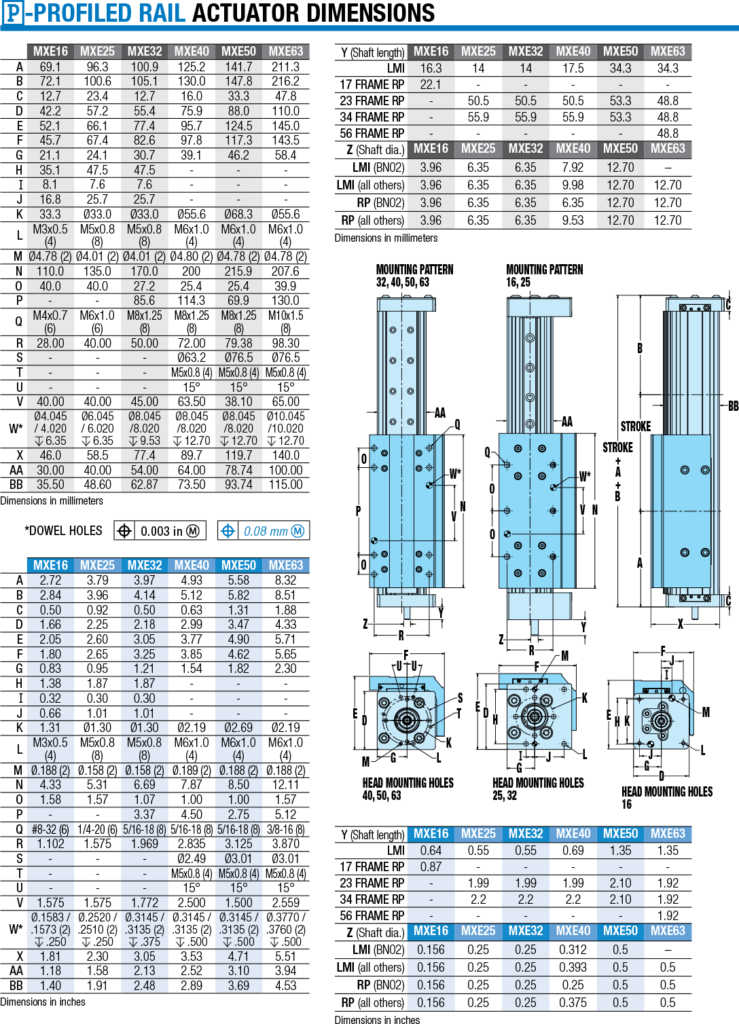

MXE-P Profiled Rail Actuator Dimensions

Get CAD

MXE16P

MXE25P

MXE32P

MXE40P

MXE50P

MXE63P

Manuals & Part Sheets

Additional Resources

Information Center:

Application Checklists

Catalogs & Brochures

Certifications

E-Books

Flyers

Guides

Tech Bulletins

Terms & Conditions

Videos

White Papers

Success Stories

Email CAD File for
