Economical electric rod cylinder that is compatible with NEMA & metric mount stepper and servo motors. Ideal for pneumatic replacement. Forces up to 500 lbf (2.2 kN).

Hydraulic-class electric linear actuators that are roller screw driven, and provide extremely high forces, precision, and long life. Ideal for hydraulic replacement. Forces up to 66,000 lbf (294 kN).

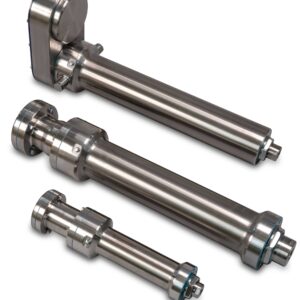

316 stainless steel construction and IP69K rating provide an electric rod style actuator ideal for food, beverage, and pharmaceutical machines. Forces up to 7,943 lbf (35.3 kN).

Electric rod actuator integrated with a servo motor in a single, compact design that integrates with 3rd party drives and accessories. Forces up to 8,044 lbf (35.8 kN).

Combines a hygienic electric rod actuator and motor into one package. It is IP69K, built with 316 SST, and works with 3rd party drives and accessories. Forces up to 2,500 lbf (11.1 kN).

Food grade design combines an electric rod actuator and motor into one design with a white epoxy coating for wash-down environments. Integrates with 3rd party drives and accessories. Forces up to 6,900 lbf (30.6kN).

Precision ground planetary roller screws provide higher force capability, efficient operation, and longer machine life.

Screw driven electric rodless design with profiled rail bearing system for large loads and high bending moments. Loads up to 1,290 lbs (586 kg).

Linear actuator that uses a profiled rail bearing and belt drive train to move heavy loads at high speeds. Loads up to 1,290 lbs (586 kg).

Screw driven electric rodless design with solid bearing carrier for a long service life ideal for moderate loads. Loads up to 520 lbs (236 kg).

Belt driven actuator is designed for applications where loads are externally guided and supported and high speeds are required. Forces up to 420 lbf (1.9 kN).

Compact belt drive linear actuator for use in applications requiring light to moderate load carrying with guidance and high speeds. Loads up to 520 lbs (236 kg).

Tolomatic B3S ball screw linear actuators have an enclosed ball bearing design that accommodates heavy loads, high bending moments to deliver long service life.

B3W linear belt drive actuators have an enclosed ball bearing design for heavy loads, high bending moments, and long service life.

Rugged stage with twin profile rails and a machined base, providing a highly rigid and accurate actuator. Mult-axis configurations are standard and ideal for adding a 7th degree of freedom for robots. Loads up to 4,320 lbs (1,960 kg).

Tolomatic BCS rodless screw actuators provide good tracking and superior load support. View the product details.

Electric rod actuator integrated with a servo motor in a single, compact design that integrates with 3rd party drives and accessories. Forces up to 8,044 lbf (35.8 kN).

Combines a hygienic electric rod actuator and motor into one package. It is IP69K, built with 316 SST, and works with 3rd party drives and accessories. Forces up to 2,500 lbf (11.1 kN).

Food grade design combines an electric rod actuator and motor into one design with a white epoxy coating for wash-down environments. Integrates with 3rd party drives and accessories. Forces up to 6,900 lbf (30.6kN).

Integrated servo motor/actuator used in robotic resistance spot welding which offers a compact, power dense actuator solution with best-in-class performance. Forces up to 4,050lbf (18kN).

MXP-N internal bearing compact air cylinder offers a space-saving design over typical rod type air cylinders.

The MXP-S solid bearing long stroke pneumatic air cylinder offers a large carrier mounting pattern for load stability.

MXP-P profiled rail air actuators offer high load carrying capacities, low profile and smooth motion.

Tolomatic BC3 heavy duty pneumatic actuators are designed specifically for large load carrying capacities.

BC2 pneumatic band cylinders provide multiple mounting options and a wide variety of load carrying capacities.

Tolomatic double acting pneumatic air cylinders offer a cost savings over Rod & Rodless cylinders when strokes exceed four feet and provide a versatile space-saving design.

Single acting pneumatic air cylinders provide a cost saving advantage over double acting cylinders.

MG magnetic linear cylinders offer coupling forces up to 100 lbs (45.4 Kg) with an all enclosed cylinder design for contaminant protection.

MGS magnetic linear slides offer coupling forces up to 70 lbs (31.8 Kg) and multi-ported block heads for flexible air connection.

LS pneumatic linear slides are an excellent choice for X-Y configurations or where space constraints are a factor.

Diseño compacto que transfiere el torque a 90 grados

El torque depende de la velocidad rotacional de entrada

Diseño compacto que transfiere el torque a 90 grados

El torque depende de la velocidad rotacional de entrada

Maximum dynamic torque of 520 in-lbs (58.7 Nm) at 100 PSI (6.9 bar)

Maximum dynamic torque of 1000 in-lbs (113 Nm) at 100 PSI (6.9 bar)

Maximum dynamic torque of 2000 in-lbs (226 Nm) at 100 PSI (6.9 bar)

Maximum dynamic torque of 5000 in-lbs (565 Nm) at 1000 PSI (68.95 bar)

Maximum dynamic torque of 10,000 in-lbs (1130 Nm) at 1000 PSI (68.95 bar)

Maximum dynamic torque of 31,000 in-lbs (3503 Nm) at 1000 PSI (68.95 bar).
