H/ME220 Series Hydraulic/Mechanical Brake
The H/ME220 hydraulic and mechanical brakes are available in single acting models with float pin holes that can accommodate up to 1/2 inch (12.7 mm) thick discs.
- Durable aluminum construction
- Replaceable high-grade friction material
- Optional Buna-N seals
- Maximum disc diameter of 16 inches (406 mm)
Order H/ME220
Part Number
0744-0630
0744-0640
0744-0650
0744-0660
Model
H/ME220ACG
H/ME220BCG
H/ME220LCG
H/ME220ECG
Hydraulic Max. Dynamic Torque
16" Disc: 30,844 in-lb, 6-5/16" Disc: 10,152 in-lb
16" Disc: 30,844 in-lb, 6-5/16" Disc: 10,152 in-lb
16" Disc: 30,844 in-lb, 6-5/16" Disc: 10,152 in-lb
16" Disc: 30,844 in-lb, 6-5/16" Disc: 10,152 in-lb
Mechanical Max. Dynamic Torque
- - -
Hydraulic Max. Static Torque
16" Disc: 15,422 in-lb, 6-5/16" Disc: 5,076 in-lb
16" Disc: 15,422 in-lb, 6-5/16" Disc: 5,076 in-lb
16" Disc: 15,422 in-lb, 6-5/16" Disc: 5,076 in-lb
16" Disc: 15,422 in-lb, 6-5/16" Disc: 5,076 in-lb
Mechanical Max. Static Torque
16" Disc: 15,425 in-lb, 6-5/16" Disc: 5,077 in-lb
16" Disc: 15,425 in-lb, 6-5/16" Disc: 5,077 in-lb
16" Disc: 15,425 in-lb, 6-5/16" Disc: 5,077 in-lb
16" Disc: 15,425 in-lb, 6-5/16" Disc: 5,077 in-lb
Lever Style
Standard Lever
Standard Lever
Standard Lever
Standard Lever
Max. Lever Force
580 lbs
580 lbs
580 lbs
580 lbs
Effective Piston Area
4 in²
4 in²
4 in²
4 in²
Disc Diameter
6-5/16″ to 16"
6-5/16″ to 16"
6-5/16″ to 16"
6-5/16″ to 16"
Disc Thickness
5/32 in
1/4 in
3/8 in
1/2 in
Price
$502.67
USD
USD
$504.51
USD
USD
$507.82
USD
USD
$507.82
USD
USD
H/ME220 Features
H/ME220 Specs & Torque
H/ME220 Mechanical Performance Data

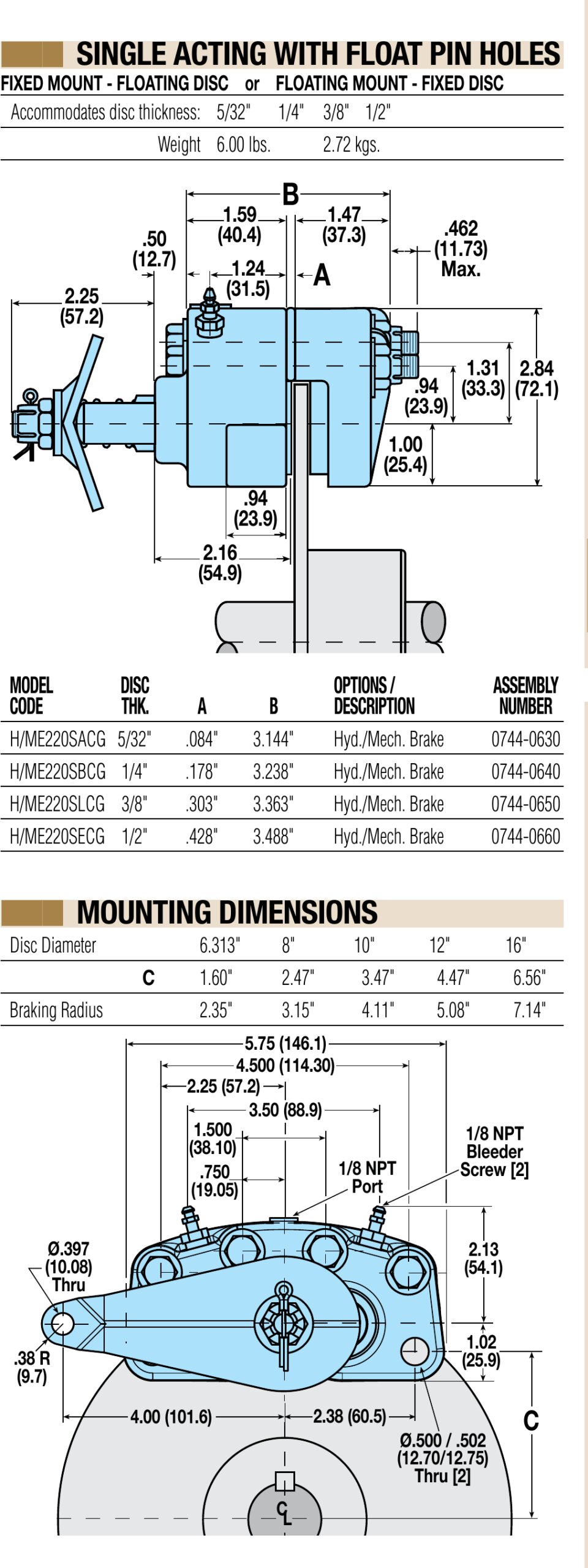

H/ME220 Dimensions
