The B3W features a robust integrated and enclosed bearing design for the toughest environments.
Tolomatic’s B3W is a linear belt driven rodless actuator series that has a enclosed carrier support bearing design that provides long life and high load capability. The bearings and belt are protected by a stainless steel dust band that provides a IP44 rating against dust and debris. The B3W is the ideal choice for tough environments, especially those with high amounts of particulate and require long operating life.
- 3 body sizes
- Maximum Load carrying capacity up to 8,032 lbf (3,642 kg)
- Stroke lengths up to 574 in (15.6m)
- Travel speeds up to 200 in/s (5 m/s)
- IP44 rating against dust and debris
- Auxiliary carrier and dual wraparound carrier options available for increased load capability
Features & Ordering
Download the B3W Brochure for full details on features
B3W Features
B3W Ordering
Specifications
| Specifications | Units | B3W10 | B3W15 | B3W20 |
|---|---|---|---|---|
| Maximum Stroke | in (mm) | 470 (11,938) | 416 (10,566) | 320 (8,128) |
| Maximum Force | lbf (N) | 150 (667) | 250 (1,112) | 325 (1,446) |
| Maximum Load | lbs (kg) | 591 (286) | 1,454 (660) | 2,008 (911) |
| Maximum Speed | in/sec (mm/sec) | 157 (3,988) | 200 (5,080) | 200 (5,080) |
B3W Specifications in US & Metric

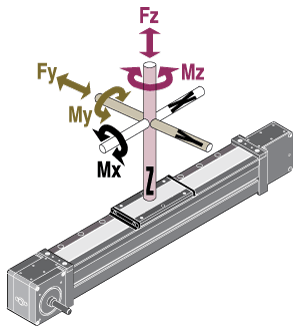

B3W Dynamic Bending Moments and Loads - US Measurements
| Dynamic Bending Moments and Loads | U.S. CONVENTIONAL | ||||
|---|---|---|---|---|---|
| SINGLE (STANDARD) CARRIER | Size | 10 | 15 | 20 | |
 |
Mx Moment (Roll) | (lb-in) | 250 | 859 | 1,662 |
| My Moment (Pitch) | (lb-in) | 269 | 1,033 | 1,472 | |
| Mz Moment (Yaw) | (lb-in) | 156 | 596 | 850 | |
| Fy Load (Radial) | (lb) | 341 | 840 | 1,159 | |
| Fz Load (Lateral) | (lb) | 591 | 1454 | 2008 | |
| AUXILIARY CARRIER: Increases rigidity, load-carrying capacity and moments | Size | 10 | 15 | 20 | |
 |
Mx Moment (Roll) | *(lb-in) | 500 | 1,718 | 3,324 |
| My Moment (Pitch) | *(lb-in) | 2,825 | 11,734 | 16,265 | |
| Mz Moment (Yaw) | *(lb-in) | 1,630 | 6,779 | 9,388 | |
| Fy Load (Radial) | (lb) | 682 | 1,680 | 2,318 | |
| Fz Load (Lateral) | (lb) | 1,182 | 2,908 | 4,016 | |
| Minimum Dimension ‘D’ ( in) | 4.88 | 8.07 | 8.10 | ||
| DUAL 180˚ CARRIER: Allows 90˚ rotation of load, adds load bearing surface | Size | 10 | 15 | 20 | |
 |
Mx Moment (Roll) | (lb-in) | 657 | 2,468 | 4,527 |
| My Moment (Pitch) | (lb-in) | 312 | 1,192 | 1,700 | |
| Mz Moment (Yaw) | (lb-in) | 538 | 2,066 | 2,944 | |
| Fy Load (Radial) | (lb) | 1,182 | 2,908 | 4,016 | |
| Fz Load (Lateral) | (lb) | 682 | 1,680 | 2,318 | |

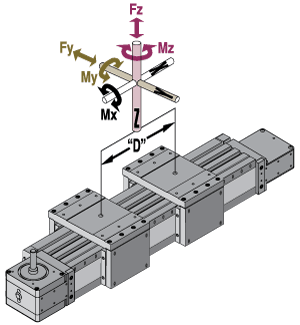

| AUXILIARY DUAL 180˚ CARRIER: Substantially increases moment and loads | Size | 10 | 15 | 20 | |
 |
Mx Moment (Roll) | * (lb-in) | 1,314 | 4,936 | 9,054 |
| My Moment (Pitch) | * (lb-in) | 3,328 | 13,558 | 18,776 | |
| Mz Moment (Yaw) | * (lb-in) | 5,768 | 23,468 | 32,530 | |
| Fy Load (Radial) | (lb) | 2,364 | 5,816 | 8,032 | |
| Fz Load (Lateral) | (lb) | 1,364 | 3,360 | 4,636 | |
| Minimum Dimension ‘D’ ( in) | 4.88 | 8.07 | 8.10 | ||
The Dual 180˚ carrier requires its own proprietary tube supports and foot mounts. See dimensional information. Breakaway torque will also increase when using the Auxiliary carrier or the Dual 180˚ carrier options. When ordering, determine working stroke and enter this value into the configuration string. Overall actuator length will automatically be calculated.
Deflection Considerations: In applications where substantial Mx or My moments come into play, deflection of the cylinder tube, carrier and supports must be considered. The deflection factors shown in the Load Deflection charts on the following page are based on cylinder mounted with tube supports at minimum recommended spacing. If more rigidity is desired, refer to the Auxiliary or Dual Carrier options.
*Loads shown in table are at minimum “D” dimension, for ratings with longer “D” dimension see graphs in B3 Catalog 3600-4176
B3W Dynamic Bending Moments and Loads - Metric Measurements
| Dynamic Bending Moments and Loads | METRIC | ||||
|---|---|---|---|---|---|
| SINGLE (STANDARD) CARRIER | Size | 10 | 15 | 20 | |
|
Mx Moment (Roll) | ( N-m ) | 28.2 | 97 | 188 |
| My Moment (Pitch) | ( N -m ) | 30.4 | 117 | 166 | |
| Mz Moment (Yaw) | ( N-m ) | 17.6 | 67 | 96 | |
| Fy Load (Radial) | ( kg ) | 155 | 381 | 526 | |
| Fz Load (Lateral) | ( kg ) | 268 | 660 | 911 | |
| AUXILIARY CARRIER: Increases rigidity, load-carrying capacity and moments | Size | 10 | 15 | 20 | |
|
Mx Moment (Roll) | *( N-m ) | 57 | 194 | 376 |
| My Moment (Pitch) | *( N-m ) | 319 | 1,326 | 1,838 | |
| Mz Moment (Yaw) | *( N-m ) | 184 | 766 | 1,061 | |
| Fy Load (Radial) | ( kg ) | 309 | 762 | 1,051 | |
| Fz Load (Lateral) | ( kg ) | 536 | 1,319 | 1,822 | |
| Minimum Dimension ‘D’ ( mm ) | 124 | 205 | 206 | ||
| DUAL 180˚ CARRIER: Allows 90˚ rotation of load, adds load bearing surface | Size | 10 | 15 | 20 | |
|
Mx Moment (Roll) | ( N-m ) | 74 | 279 | 512 |
| My Moment (Pitch) | ( N-m ) | 35.3 | 135 | 192 | |
| Mz Moment (Yaw) | ( N-m ) | 61 | 233 | 333 | |
| Fy Load (Radial) | ( kg ) | 536 | 1,319 | 1,822 | |
| Fz Load (Lateral) | ( kg ) | 309 | 762 | 1051 | |
| AUXILIARY DUAL 180˚ CARRIER: Substantially increases moment and loads | Size | 10 | 15 | 20 | |
|
Mx Moment (Roll) | * ( N-m ) | 149 | 558 | 1,023 |
| My Moment (Pitch) | * ( N-m ) | 376 | 1,532 | 2,121 | |
| Mz Moment (Yaw) | * ( N-m ) | 652 | 2,652 | 3,675 | |
| Fy Load (Radial) | ( kg ) | 1,072 | 2,638 | 3,643 | |
| Fz Load (Lateral) | ( kg ) | 619 | 1,524 | 2,103 | |
| Minimum Dimension ‘D’ ( mm ) | 124 | 205 | 206 | ||
The Dual 180˚ carrier requires its own proprietary tube supports and foot mounts. See dimensional information. Breakaway torque will also increase when using the Auxiliary carrier or the Dual 180˚ carrier options. When ordering, determine working stroke and enter this value into the configuration string. Overall actuator length will automatically be calculated.
Deflection Considerations: In applications where substantial Mx or My moments come into play, deflection of the cylinder tube, carrier and supports must be considered. The deflection factors shown in the Load Deflection charts on the following page are based on cylinder mounted with tube supports at minimum recommended spacing. If more rigidity is desired, refer to the Auxiliary or Dual Carrier options.
*Loads shown in table are at minimum “D” dimension, for ratings with longer “D” dimension see graphs in B3 Catalog 3600-4176
Dimensions

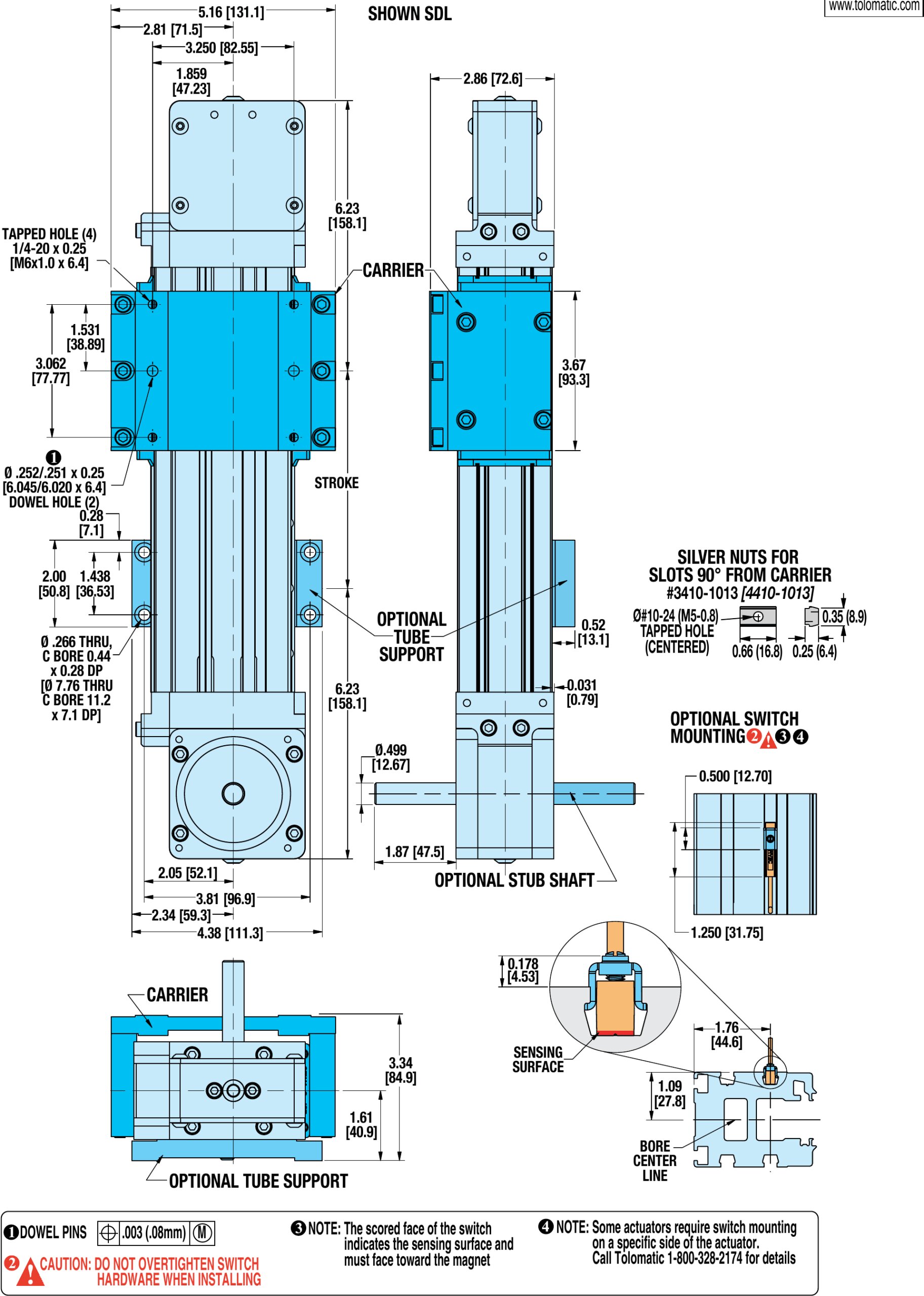

B3W10 Actuator & Options Dimensions

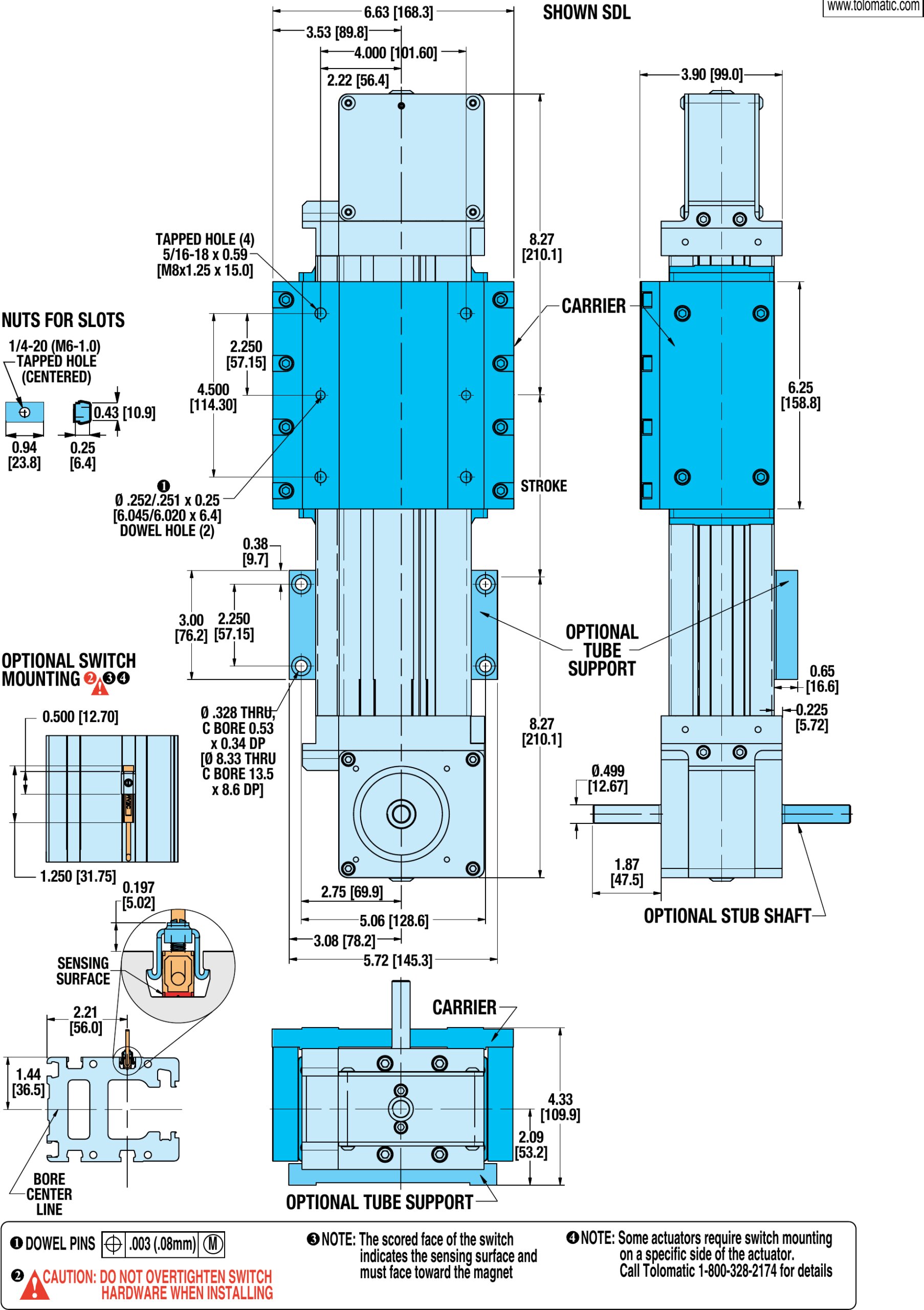

B3W15 Actuator & Options Dimensions
B3W20 Actuator & Options Dimensions
B3W10 Dual 180º Option Dimensions
B3W15 Dual 180º Option Dimensions
B3W20 Dual 180º Option Dimensions
Get CAD
Manuals & Part Sheets
Additional Resources
Information Center:
Application Checklists
Catalogs & Brochures
- Corporate Overview-Linear Motion Solutions Brochure (English)
- SOLUCIONES DE CONTROL DE MOVIMIENTO (Spanish, Corporate Overview-Motion Control Solutions Brochure)
- Unternehmensübersicht (German, Corporate Overview brochure)
- Brochure sur l'entreprise Tolomatic (French, Corporate Overview-Linear Motion Solutions Brochure)
- B3S/B3W Electric Rodless Actuators Catalog
- Aplicaciounes de la Ind. Automotriz (Auto Appl SP)
- Gantry & Multi-Axis Solutions Brochure
- Soluciones Gantry y Multieje (^ES Gantry brochure)
- Medical and Life Sciences brochure
- OEM Actuator Solutions Brochure
Certifications
Guides
Tech Bulletins
Terms & Conditions
White Papers
- Electric actuators vs. pneumatic cylinders: A comparison based on total cost of ownership
- Select the right linear actuator: Making sense of manufacturer specifications
- Specifying electric rodless actuators: Ten tips for maximizing actuator life and system performance
- Rules of actuator and guide alignment in linear motion systems
- IP ratings and the manufacturing environment: How to apply linear actuators for quality, safety and long service life.
- Minimizing electrical noise in actuator drive systems for maximum reliability and performance
- Screw-driven vs. belt-driven rodless actuators: How to select drive trains for reliability, efficiency and long service life
- Introduction to accuracy and repeatability in linear motion systems
- Elektrische Stangenantriebe vs. Hydraulikzylinder: Ein Vergleich der Vor- und Nachteile beider Technologien weißes Papier (Electric vs Hydraulic WP, German)
- Designing Gantry and Multi-Axis Automation Systems
