Intensifier Kit for Caliper Disc Brakes
Tolomatic’s intensifier is intended for use with all non-spring retracting hydraulic caliper disc brakes and increases the output pressure to obtain the brake’s high torque handling capabilites without the use of high pressure hydraulic systems.
- Reduce the number of required brake calipers
- Operates at a 10:1 ratio of output pressure (hydraulic fluid) to input pressure (air)
- 0.44 cubic inches of displacement
Order Intensifier
Part Number
1770-0002
1770-0003
1770-0004
Description
Intensifier kit with Buna-N Seal
Intensifier kit with EPR Seal
Intensifer kit with Viton Seal
Max. Output Pressure
1,000 psi
1,000 psi
1,000 psi
Max. Input Pressure
100 psi
100 psi
100 psi
Input to Output Ratio
1:10
1:10
1:10
Price
$535.73
USD
USD
$536.14
USD
USD
$535.96
USD
USD
Intensifier Features

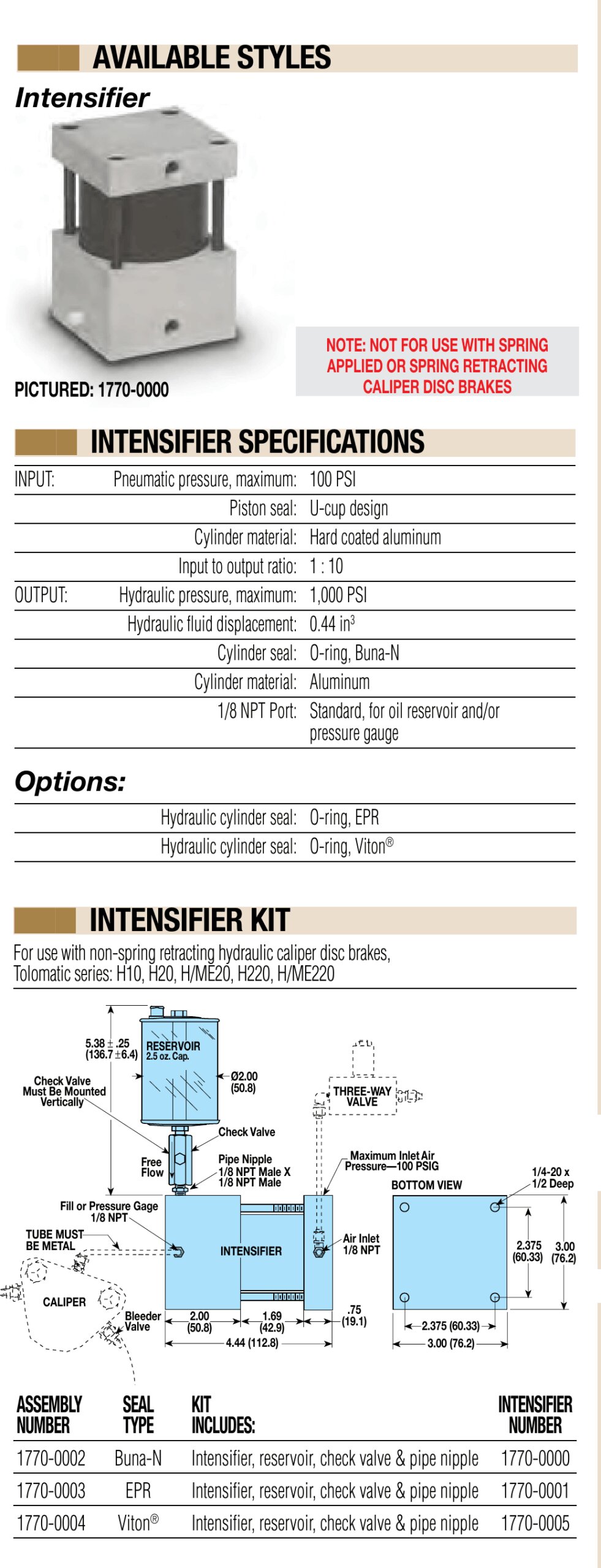

Intensifier Specs & Dimensions
