Robust Gantry Systems Designed to AccommodateHigh Duty Cycle, Large Weight & Size
In partnership with

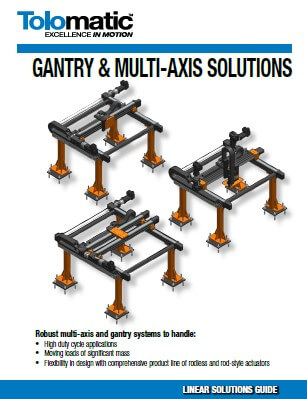

Download the Gantry & Multi-Axis
Solutions Brochure
Easy Three Step Design Process
-
Download pre-configured multi-axis gantry system CAD model
-
Identify needed modifications and preferences
-
Find Your Distributor or Request a Quote
Pre-Engineered Gantry System Configurations and CAD Files
Two Axis XX’-Y(D) Gantry
24 x 24 CAD File – 36 x 36 CAD File – 48 x 48 CAD File
Two Axis XX’-YY'(D) Gantry
24 x 24 CAD File – 36 x 36 CAD File – 48 x 48 CAD File
Three Axis XX’-Y(D)-Z Gantry
24 x 24 CAD File – 48 x 48 CAD File
Three Axis XX’-YY'(D)-Z Gantry
When Do You Need a Custom Designed Gantry System?
If you have weight, force or size challenges that don’t fit standard gantry system designs, you can always go custom. Tolomatic offers flexible, robust, high duty multi axis gantry systems to meet your needs. We make gantry systems bigger, stronger and more configurable — whatever you need to get the job done.

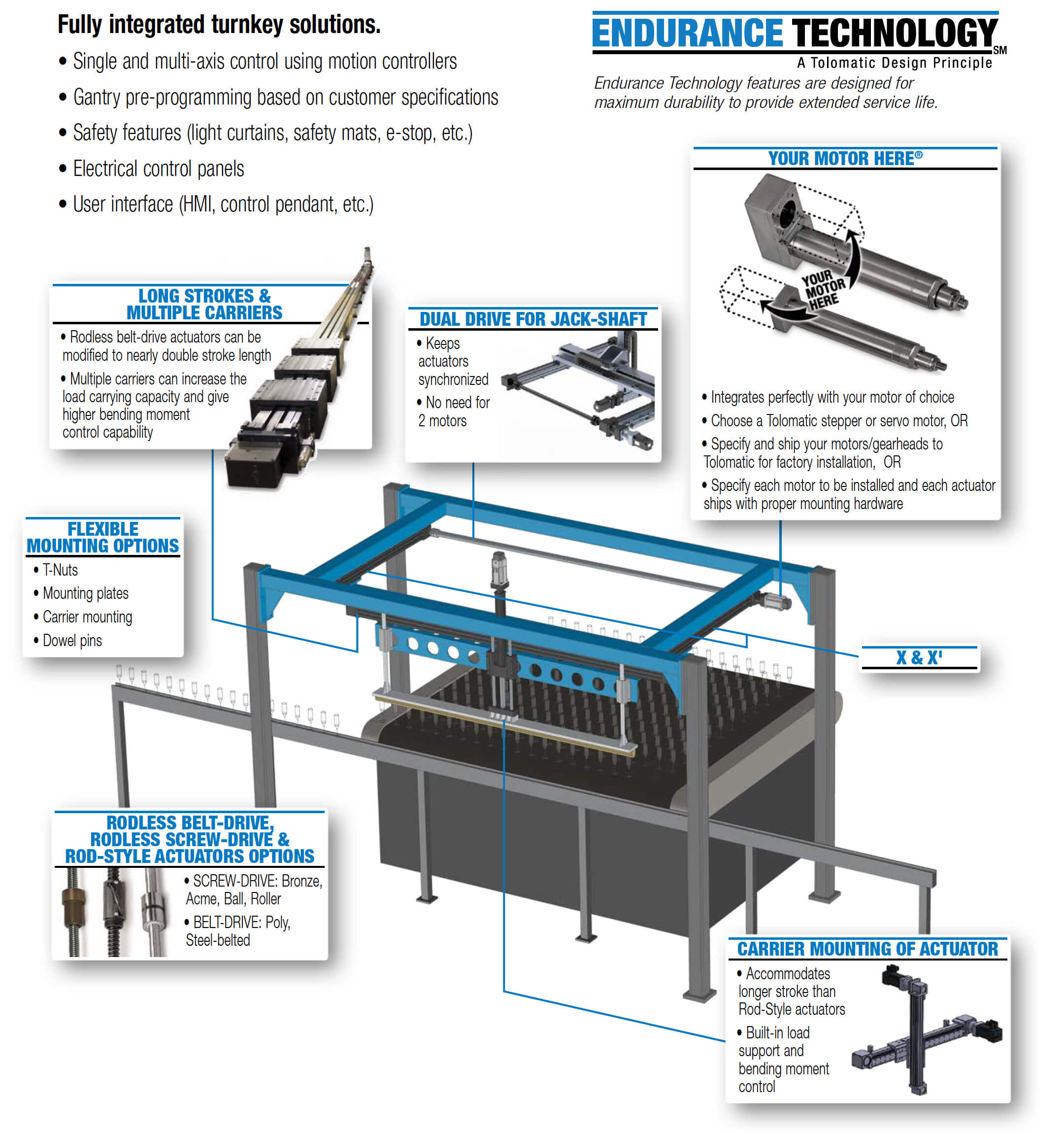

- Configurable, built-to-order solutions
- Maximize flexibility, speed, efficiency and throughput
- Easy integration with existing systems using “Your Motor Here”
- Flexible mounting, including carrier mounting
- Engineered to meet unique load, force and size requirements
Simplified Gantry Design
Designing and building the complete solution for your challenge
Begin with: |
Key Design Considerations |
Quote and Order |
||
Download pre-configured gantry system CAD model
|
 |
Pre-set configurations can be ordered as is or identify any needed modifications: |
|
Find your Distributor
|
|
|
|
