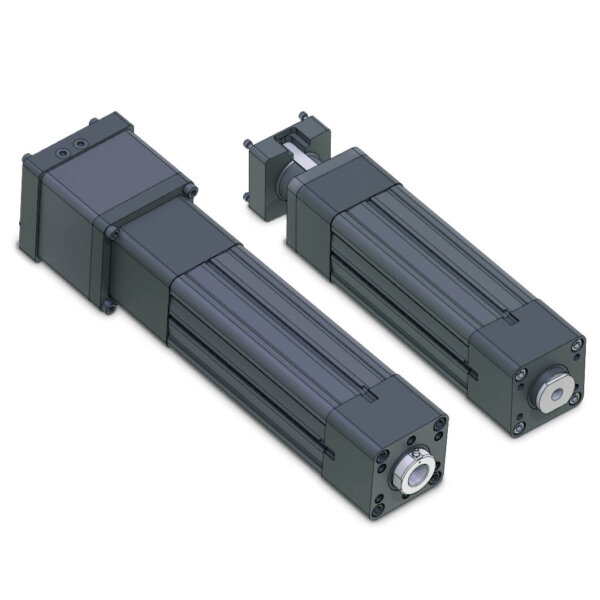

RSA Electric Linear Actuators

The RSA Electric Linear Rod Actuator combines excellent accuracy with a low-to-high thrust capacity in tough environments

RSA electric linear rod actuators feature accurate and high force performance, making them ideal for replacing pneumatic & hydraulic cylinders. RSA actuators are suitable for general motion control, valve actuation, punch press, injection molding and many more applications.

  • 6 body sizes with built-to-order stroke lengths and mounting options
  • Stroke lengths up to 60 inches (1,524 mm)
  • Forces up to 13,039 lbf (58,001 N)
  • Acme, Ball, and Roller Screw options
  • IP67 option to protect against dust and water ingress
Download Brochure Watch Video Download Flyer Your Motor Here® Size Your Actuator Request a Quote Contact an Engineer

Order Now

Quick ship flyer

Order RSA 32

Part Number
1132-0864
1132-0865
1132-0866
1132-0867
Description
RSA32 BN02 SK6.000 LMI ST1
RSA32 BN02 SK12.000 LMI ST1
RSA32 BN05 SK6.000 LMI ST1
RSA32 BN05 SK12.000 LMI ST1
Stroke
6" (152 mm)
12” (305 mm)
6" (152 mm)
12” (305 mm)
Max Thrust
534 lbf (2,375 N)
534 lbf (2,375 N)
950 lbf (4,226 N)
950 lbf (4,226 N)
Max Speed
34 in/sec (850 mm/sec)
34 in/sec (850 mm/sec)
13 in/sec (330 mm/sec)
13 in/sec (330 mm/sec)
Screw Lead
0.5 in/rev
0.5 in/rev
0.2 in/rev
0.2 in/rev
Lead Accuracy
0.0015 in
0.0015 in
0.0030 in
0.0030 in
Weight
8.90 lbs
11.65 lbs
8.90 lbs
11.65 lbs
Price
$2,936.02
USD
$3,097.92
USD
$2,936.02
USD
$3,097.92
USD

Features & Ordering

Download the RSA Brochure for full details on features

RSA Brochure

RSA-ST Electric Rod Actuator Features

View and Print

RSA-HT Electric Rod Actuator Features

View and Print

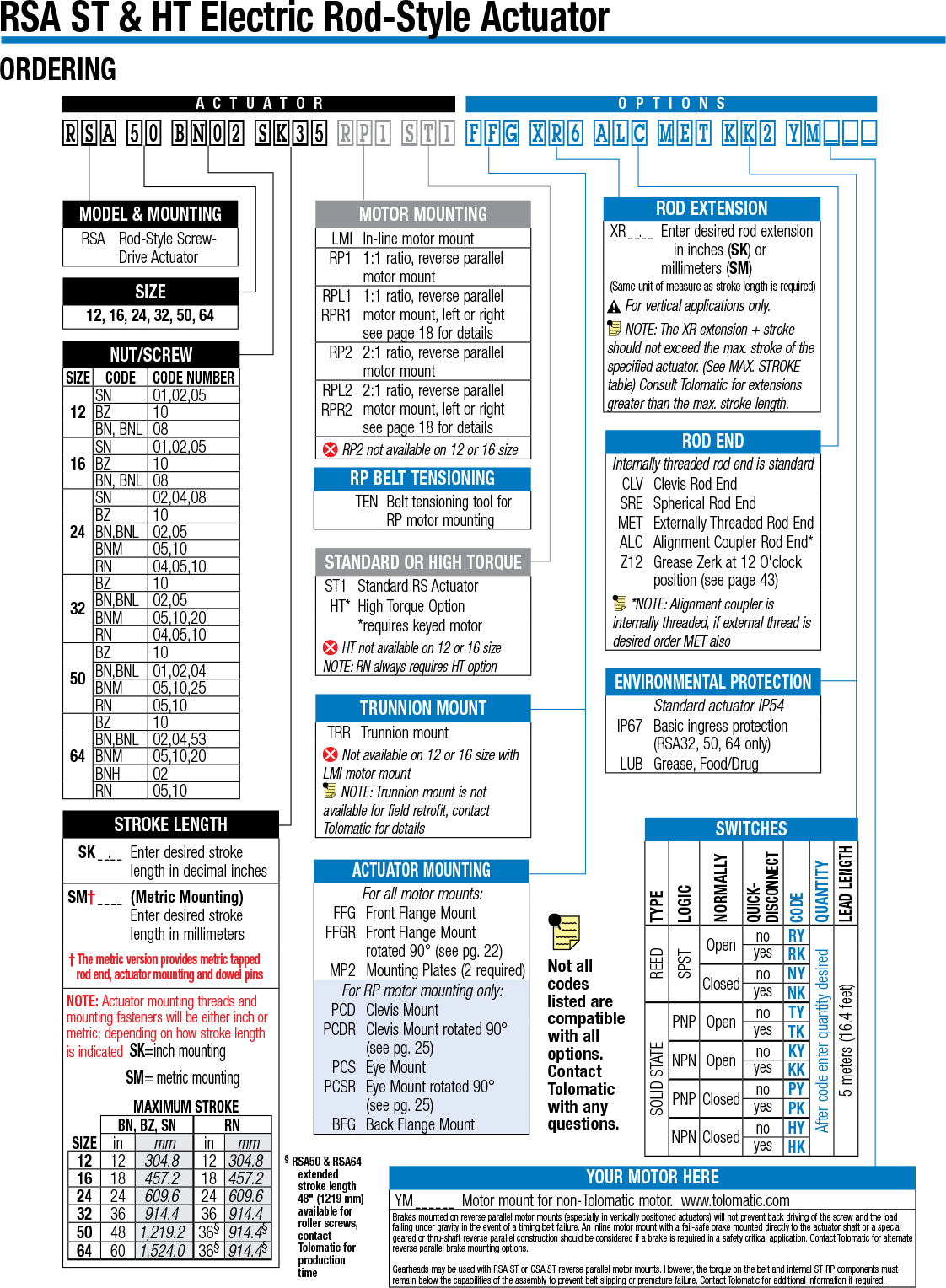

RSA-ST and RSA-HT Ordering

View and Print

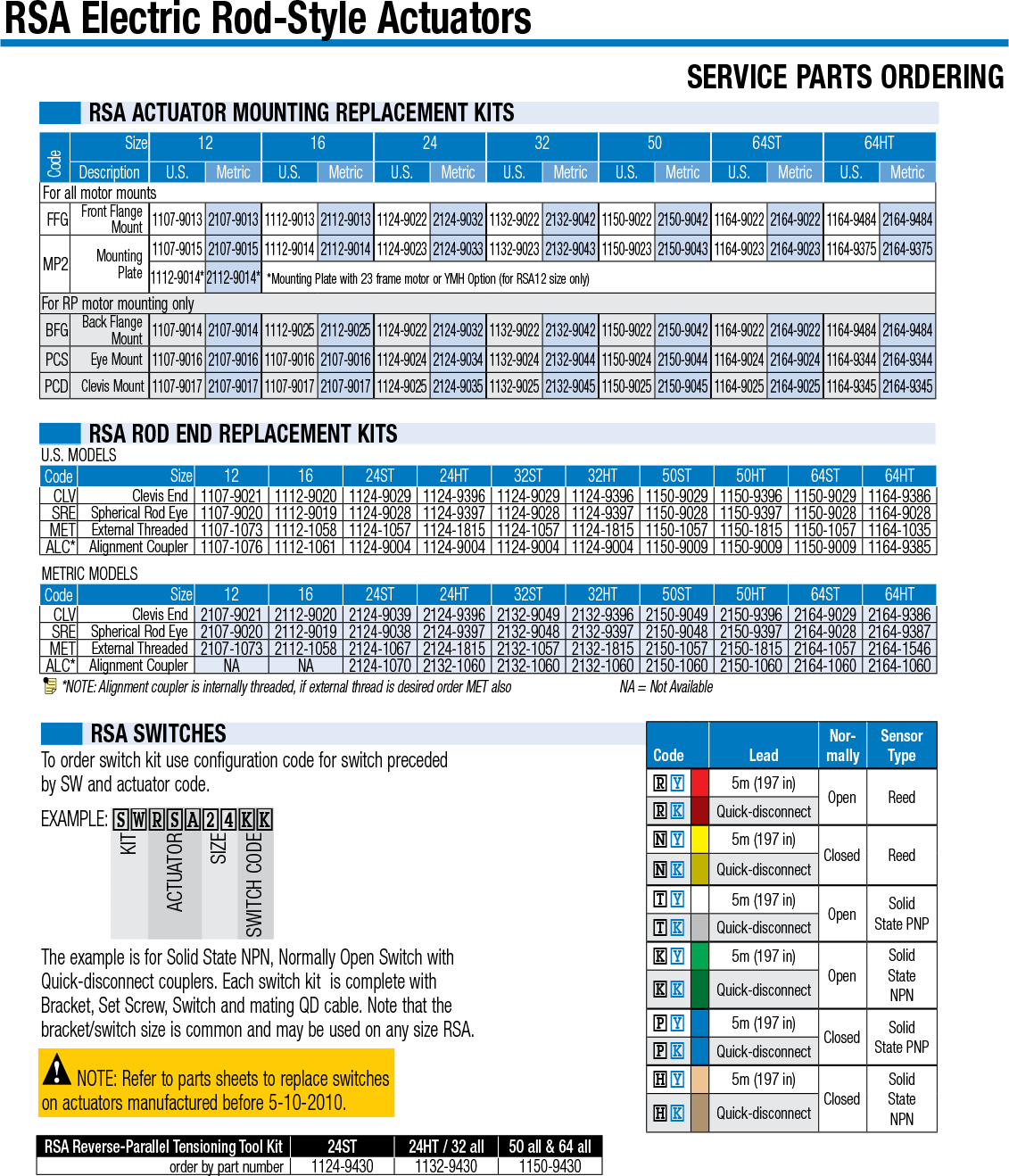

RSA-ST, RSA-HT Service Parts Ordering

View and Print

Specifications

RSA Electric Linear Actuators Specifications
Specification Units RSA12 RSA16 RSA24 RSA32 RSA50 RSA64
Maximum Stroke in (mm) 12 (305) 18 (457) 24 (610) 36 (914) 48 (1,219) 60 (1,524)
Maximum Force lbf (N) 130 (578) 130 (578) 1,700 (7,562) 4,159 (18,500) 7,868 (35,000) 13,039 (58,000)
Maximum Speed in/sec (mm/sec) 123 (3,120) 123 (3,120) 50 (1,270) 52 (1,320) 52 (1,320) 62 (1,570)

IMAGE-RSA-ST Actuator Specs (US Conv.)

View and Print

IMAGE-RSA-ST Actuator Specs (Metric)

View and Print

IMAGE-RSA-HT Actuator Specifications (US Conv.)

View and Print

IMAGE-RSA-HT Actuator Specifications (Metric)

View and Print

RSA-HT Weight, Inertia - US Measurements

RSA SIZE WEIGHT REDUCTION INERTIA
BASE LMI RP1 RP2 per in of stroke LMI RP1 RP2
lb lb lb lb lb/in lb-in2 lb-in2 lb-in2
24 3.8 2.4 2.5 2.2 0.33 0.56 0.38 0.11
32 BN 5.3 5.4 2.9 3.3 0.48 2.35 0.25 0.18
32 RN 10.1 5.2 5.7 6.0 1.18 2.35 1.38 0.66
50 BN 12.6 9.1 5.7 5.9 0.84 6.36 1.47 0.73
50 RN 21.5 11.9 16.3 16.8 0.98 6.36 8.72 4.09
64 39.6 17.7 23.7 24.6 1.42 13.55 13.67 6.95

*Temperature Range (˚F): Standard: 40 to 130 Extended:-40 to 140
Gasket Kit providing ingress protection against dust and splashing water available upon request
* Heat generated by the motor and drive should be taken into consideration as well as linear velocity and work cycle time. For applications that require operation outside of the recommended temperature range, contact Tolomatic.

LARGE FRAME MOTORS AND SMALLER SIZE ACTUATORS: Cantilevered motors need to be supported, if subjected to continuous rapid reversing duty and/or under dynamic conditions.

SIDE LOADING CONSIDERATIONS: Rod screw actuators are designed to push guided and supported loads and are not meant for applications that require substantial side loading. Please contact Tolomatic for details regarding side loading capabilities.

RSA-HT Weight, Inertia - Metric Measurements

RSA SIZE WEIGHT REDUCTION INERTIA
BASE LMI RP1 RP2 per mm of stroke LMI RP1 RP2
kg kg kg kg g/mm kg-cm2 kg-cm2 kg-cm2
24 1.73 1.09 1.13 1.00 5.93 1.641 1.113 0.322
32 BN 2.40 2.45 1.32 1.50 8.50 6.886 0.733 0.527
32 RN 4.59 2.36 2.59 2.72 21.01 6.886 4.043 1.934
50 BN 5.73 4.13 2.59 2.68 14.98 18.635 4.307 2.139
50 RN 9.74 5.40 7.39 7.62 17.50 18.635 25.550 11.984
64 17.97 8.03 10.75 11.16 25.30 39.702 40.053 20.364

*Temperature Range (˚C): Standard: 4 to 54 Extended -40 to 60
Gasket Kit providing ingress protection against dust and splashing water available upon request
* Heat generated by the motor and drive should be taken into consideration as well as linear velocity and work cycle time. For applications that require operation outside of the recommended temperature range, contact Tolomatic.

LARGE FRAME MOTORS AND SMALLER SIZE ACTUATORS: Cantilevered motors need to be supported, if subjected to continuous rapid reversing duty and/or under dynamic conditions.

SIDE LOADING CONSIDERATIONS: Rod screw actuators are designed to push guided and supported loads and are not meant for applications that require substantial side loading. Please contact Tolomatic for details regarding side loading capabilities.

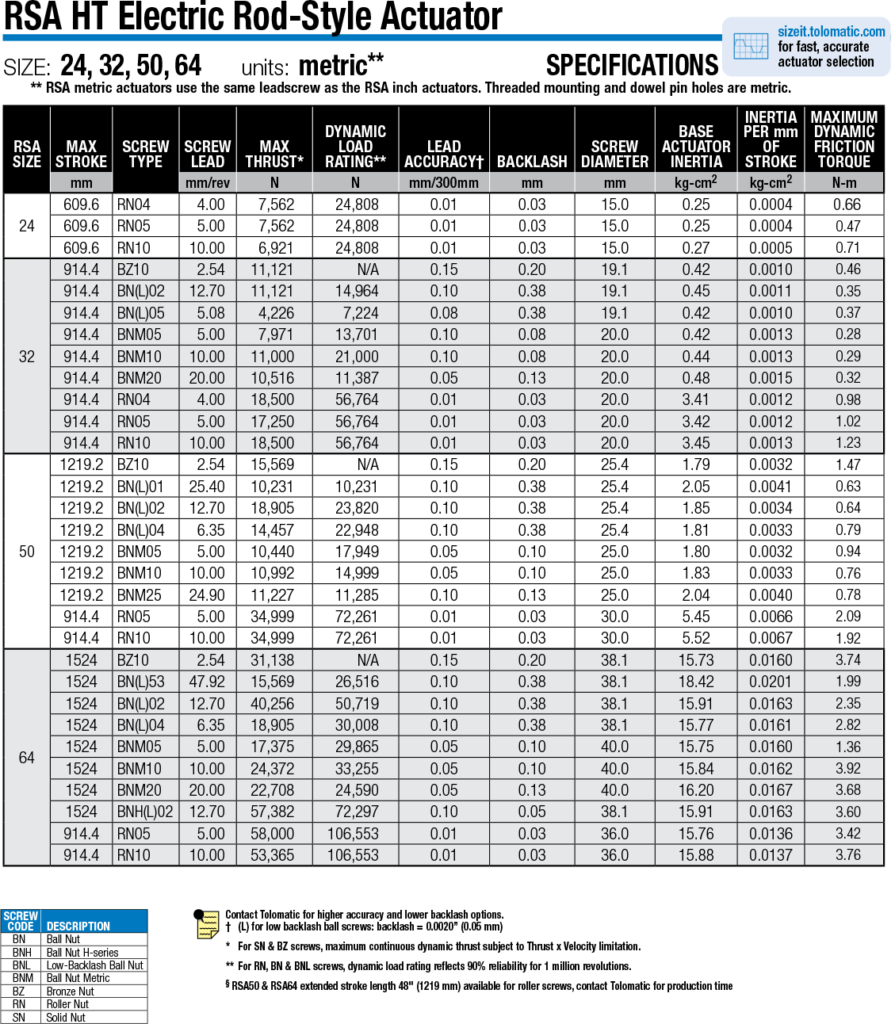

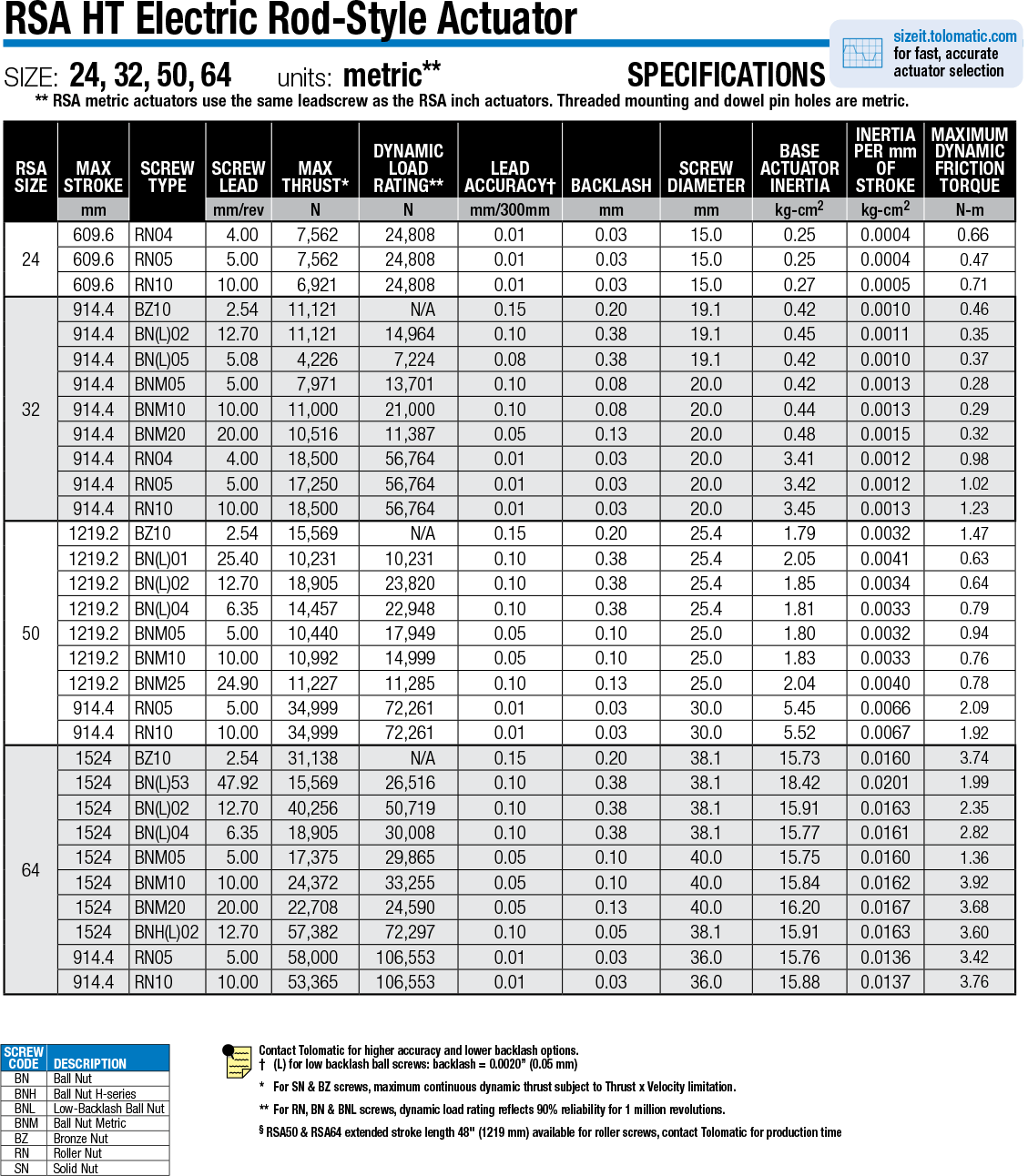

RSA-HT Detailed Specifications - Metric Measurements

RSA SIZE MAX STROKE SCREW TYPE SCREW LEAD MAX THRUST* DYNAMIC LOAD RATING** LEAD ACCURACY† BACKLASH SCREW DIAMETER BASE ACTUATOR INERTIA INERTIA PER mm OF STROKE MAXIMUM DYNAMIC FRICTION TORQUE
mm mm/rev N N mm/300mm mm mm kg-cm2 kg-cm2 N-m
24 609.6 RN04 4.00 7,562 24,808 0.01 0.03 15.0 0.25 0.0004 0.66
609.6 RN05 5.00 7,562 24,808 0.01 0.03 15.0 0.25 0.0004 0.47
609.6 RN10 10.00 6,921 24,808 0.01 0.03 15.0 0.27 0.0005 0.71
32 914.4 BZ10 2.54 11,121 N/A 0.15 0.20 19.1 0.42 0.0010 0.46
914.4 BN(L)02 12.70 11,121 14,964 0.10 0.38 19.1 0.45 0.0011 0.35
914.4 BN(L)05 5.08 4,226 7,224 0.08 0.38 19.1 0.42 0.0010 0.37
914.4 BNM05 5.00 7,971 13,701 0.10 0.08 20.0 0.42 0.0013 0.28
914.4 BNM10 10.00 11,000 21,000 0.10 0.08 20.0 0.44 0.0013 0.29
914.4 BNM20 20.00 10,516 11,387 0.05 0.13 20.0 0.48 0.0015 0.32
914.4 RN04 4.00 18,500 56,764 0.01 0.03 20.0 3.41 0.0012 0.98
914.4 RN05 5.00 17,250 56,764 0.01 0.03 20.0 3.42 0.0012 1.02
914.4 RN10 10.00 18,500 56,764 0.01 0.03 20.0 3.45 0.0013 1.23
50 1219.2 BZ10 2.54 15,569 N/A 0.15 0.20 25.4 1.79 0.0032 1.47
1219.2 BN(L)01 25.40 10,231 10,231 0.10 0.38 25.4 2.05 0.0041 0.63
1219.2 BN(L)02 12.70 18,905 23,820 0.10 0.38 25.4 1.85 0.0034 0.64
1219.2 BN(L)04 6.35 14,457 22,948 0.10 0.38 25.4 1.81 0.0033 0.79
1219.2 BNM05 5.00 10,440 17,949 0.05 0.10 25.0 1.80 0.0032 0.94
1219.2 BNM10 10.00 10,992 14,999 0.05 0.10 25.0 1.83 0.0033 0.76
1219.2 BNM25 24.90 11,227 11,285 0.10 0.13 25.0 2.04 0.0040 0.78
914.4 RN05 5.00 34,999 72,261 0.01 0.03 30.0 5.45 0.0066 2.09
914.4 RN10 10.00 34,999 72,261 0.01 0.03 30.0 5.52 0.0067 1.92
64 1524 BZ10 2.54 31,138 N/A 0.15 0.20 38.1 15.73 0.0160 3.74
1524 BN(L)53 47.92 15,569 26,516 0.10 0.38 38.1 18.42 0.0201 1.99
1524 BN(L)02 12.70 40,256 50,719 0.10 0.38 38.1 15.91 0.0163 2.35
1524 BN(L)04 6.35 18,905 30,008 0.10 0.38 38.1 15.77 0.0161 2.82
1524 BNM05 5.00 17,375 29,865 0.05 0.10 40.0 15.75 0.0160 1.36
1524 BNM10 10.00 24,372 33,255 0.05 0.10 40.0 15.84 0.0162 3.92
1524 BNM20 20.00 22,708 24,590 0.05 0.13 40.0 16.20 0.0167 3.68
1524 BNH(L)02 12.70 57,382 72,297 0.10 0.05 38.1 15.91 0.0163 3.60
914.4 RN05 5.00 58,000 106,553 0.01 0.03 36.0 15.76 0.0136 3.42
914.4 RN10 10.00 53,365 106,553 0.01 0.03 36.0 15.88 0.0137 3.76

Contact Tolomatic for higher accuracy and lower backlash options.
† (L) for low backlash ball screws: backlash = 0.0020” (0.05 mm)
* For SN & BZ screws, maximum continuous dynamic thrust subject to Thrust x Velocity limitation.
** For RN, BN & BNL screws, dynamic load rating reflects 90% reliability for 1 million revolutions.
§ RSA50 & RSA64 extended stroke length 48″ (1219 mm) available for roller screws, contact Tolomatic for production time

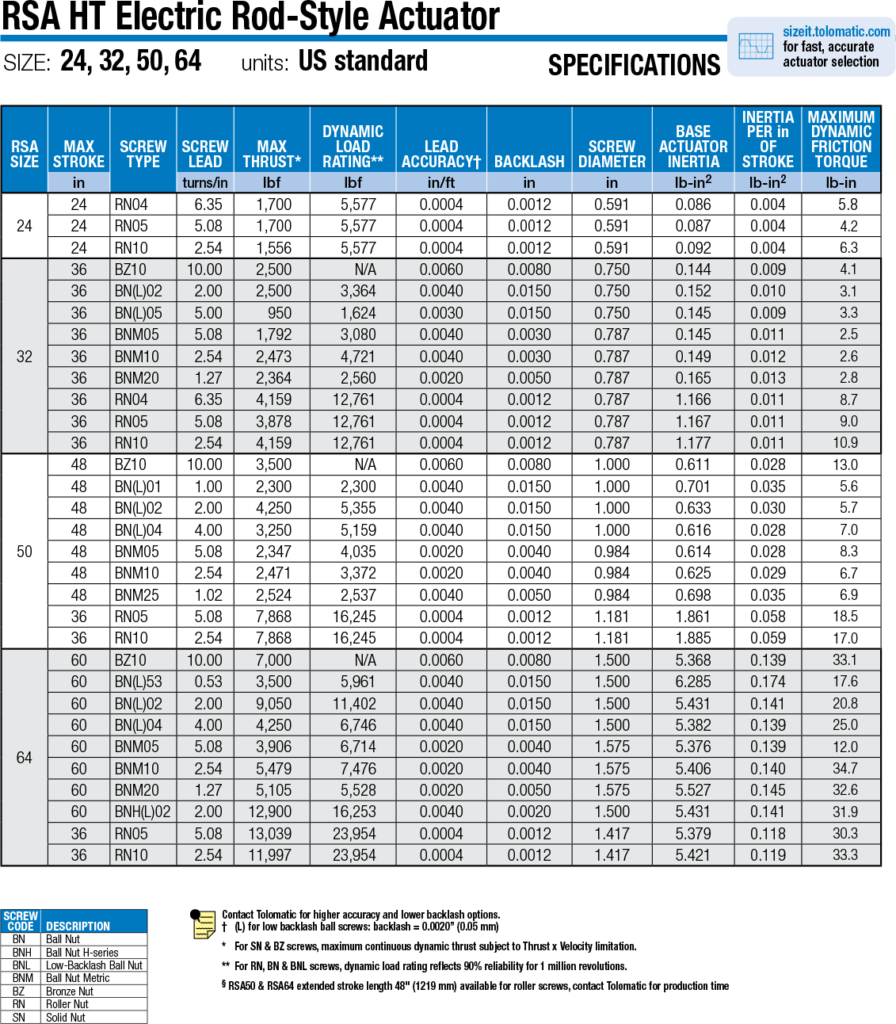

RSA-HT Detailed Specifications - US Measurements

RSA SIZE MAX STROKE SCREW TYPE SCREW LEAD MAX THRUST* DYNAMIC LOAD RATING** LEAD ACCURACY† BACKLASH SCREW DIAMETER BASE ACTUATOR INERTIA INERTIA PER in OF STROKE MAXIMUM DYNAMIC FRICTION TORQUE
in turns/in lbf lbf in/ft in in lb-in2 lb-in2 lb-in
24 24 RN04 6.35 1,700 5,577 0.0004 0.0012 0.591 0.086 0.004 5.8
24 RN05 5.08 1,700 5,577 0.0004 0.0012 0.591 0.087 0.004 4.2
24 RN10 2.54 1,556 5,577 0.0004 0.0012 0.591 0.092 0.004 6.3
32 36 BZ10 10.00 2,500 N/A 0.0060 0.0080 0.750 0.144 0.009 4.1
36 BN(L)02 2.00 2,500 3,364 0.0040 0.0150 0.750 0.152 0.010 3.1
36 BN(L)05 5.00 950 1,624 0.0030 0.0150 0.750 0.145 0.009 3.3
36 BNM05 5.08 1,792 3,080 0.0040 0.0030 0.787 0.145 0.011 2.5
36 BNM10 2.54 2,473 4,721 0.0040 0.0030 0.787 0.149 0.012 2.6
36 BNM20 1.27 2,364 2,560 0.0020 0.0050 0.787 0.165 0.013 2.8
36 RN04 6.35 4,159 12,761 0.0004 0.0012 0.787 1.166 0.011 8.7
36 RN05 5.08 3,878 12,761 0.0004 0.0012 0.787 1.167 0.011 9.0
36 RN10 2.54 4,159 12,761 0.0004 0.0012 0.787 1.177 0.011 10.9
50 48 BZ10 10.00 3,500 N/A 0.0060 0.0080 1.000 0.611 0.028 13.0
48 BN(L)01 1.00 2,300 2,300 0.0040 0.0150 1.000 0.701 0.035 5.6
48 BN(L)02 2.00 4,250 5,355 0.0040 0.0150 1.000 0.633 0.030 5.7
48 BN(L)04 4.00 3,250 5,159 0.0040 0.0150 1.000 0.616 0.028 7.0
48 BNM05 5.08 2,347 4,035 0.0020 0.0040 0.984 0.614 0.028 8.3
48 BNM10 2.54 2,471 3,372 0.0020 0.0040 0.984 0.625 0.029 6.7
48 BNM25 1.02 2,524 2,537 0.0040 0.0050 0.984 0.698 0.035 6.9
36 RN05 5.08 7,868 16,245 0.0004 0.0012 1.181 1.861 0.058 18.5
36 RN10 2.54 7,868 16,245 0.0004 0.0012 1.181 1.885 0.059 17.0
64 60 BZ10 10.00 7,000 N/A 0.0060 0.0080 1.500 5.368 0.139 33.1
60 BN(L)53 0.53 3,500 5,961 0.0040 0.0150 1.500 6.285 0.174 17.6
60 BN(L)02 2.00 9,050 11,402 0.0040 0.0150 1.500 5.431 0.141 20.8
60 BN(L)04 4.00 4,250 6,746 0.0040 0.0150 1.500 5.382 0.139 25.0
60 BNM05 5.08 3,906 6,714 0.0020 0.0040 1.575 5.376 0.139 12.0
60 BNM10 2.54 5,479 7,476 0.0020 0.0040 1.575 5.406 0.140 34.7
60 BNM20 1.27 5,105 5,528 0.0020 0.0050 1.575 5.527 0.145 32.6
60 BNH(L)02 2.00 12,900 16,253 0.0040 0.0020 1.500 5.431 0.141 31.9
36 RN05 5.08 13,039 23,954 0.0004 0.0012 1.417 5.379 0.118 30.3
36 RN10 2.54 11,997 23,954 0.0004 0.0012 1.417 5.421 0.119 33.3

Contact Tolomatic for higher accuracy and lower backlash options.
† (L) for low backlash ball screws: backlash = 0.0020” (0.05 mm)
* For SN & BZ screws, maximum continuous dynamic thrust subject to Thrust x Velocity limitation.
** For RN, BN & BNL screws, dynamic load rating reflects 90% reliability for 1 million revolutions.
§ RSA50 & RSA64 extended stroke length 48″ (1219 mm) available for roller screws, contact Tolomatic for production time

RSA-ST Weight, Inertia - Metric Measurements

RSA SIZE WEIGHT REDUCTION INERTIA
BASE LMI RP1 RP2 per mm of stroke LMI RP1 RP2
kg kg kg kg g/mm kg-cm2 kg-cm2 kg-cm2
12 0.23 0.41 0.32 N/A 1.79 0.0879 0.4395 N/A
16 0.27 0.41 0.36 N/A 2.86 0.0879 0.4395 N/A
24 1.27 0.41 0.77 1.00 6.07 0.0879 0.4395 0.3516
32 2.40 0.64 1.27 1.45 8.57 0.5274 0.4688 0.4688
50 5.53 1.00 2.22 2.36 15.00 1.6408 1.9924 1.1720
64 13.97 2.54 3.95 5.22 25.89 1.6408 2.4026 5.6256

*Temperature Range (˚C): Standard: 4 to 54 Extended -40 to 60
Gasket Kit providing ingress protection against dust and splashing water available upon request
* Heat generated by the motor and drive should be taken into consideration as well as linear velocity and work cycle time. For applications that require operation outside of the recommended temperature range, contact Tolomatic.

LARGE FRAME MOTORS AND SMALLER SIZE ACTUATORS: Cantilevered motors need to be supported, if subjected to continuous rapid reversing duty and/or under dynamic conditions.

SIDE LOADING CONSIDERATIONS: Rod screw actuators are designed to push guided and supported loads and are not meant for applications that require substantial side loading. Please contact Tolomatic for details regarding side loading capabilities.

RSA-ST Weight, Inertia - US Measurements

RSA SIZE WEIGHT REDUCTION INERTIA
BASE LMI RP1 RP2 per in of stroke LMI RP1 RP2
lb lb lb lb lb/in lb-in2 lb-in2 lb-in2
12 0.5 0.9 0.7 N/A 0.10 0.03 0.15 N/A
16 0.6 0.9 0.8 N/A 0.16 0.03 0.15 N/A
24 2.8 0.9 1.7 2.2 0.34 0.03 0.15 0.12
32 5.3 1.4 2.8 3.2 0.48 0.18 0.16 0.16
50 12.2 2.2 4.9 5.2 0.84 0.56 0.68 0.40
64 30.8 5.6 8.7 11.5 1.45 0.56 0.82 1.92

*Temperature Range (˚F): Standard: 40 to 130 Extended:-40 to 140
Gasket Kit providing ingress protection against dust and splashing water available upon request
* Heat generated by the motor and drive should be taken into consideration as well as linear velocity and work cycle time. For applications that require operation outside of the recommended temperature range, contact Tolomatic.

LARGE FRAME MOTORS AND SMALLER SIZE ACTUATORS: Cantilevered motors need to be supported, if subjected to continuous rapid reversing duty and/or under dynamic conditions.

SIDE LOADING CONSIDERATIONS: Rod screw actuators are designed to push guided and supported loads and are not meant for applications that require substantial side loading. Please contact Tolomatic for details regarding side loading capabilities.

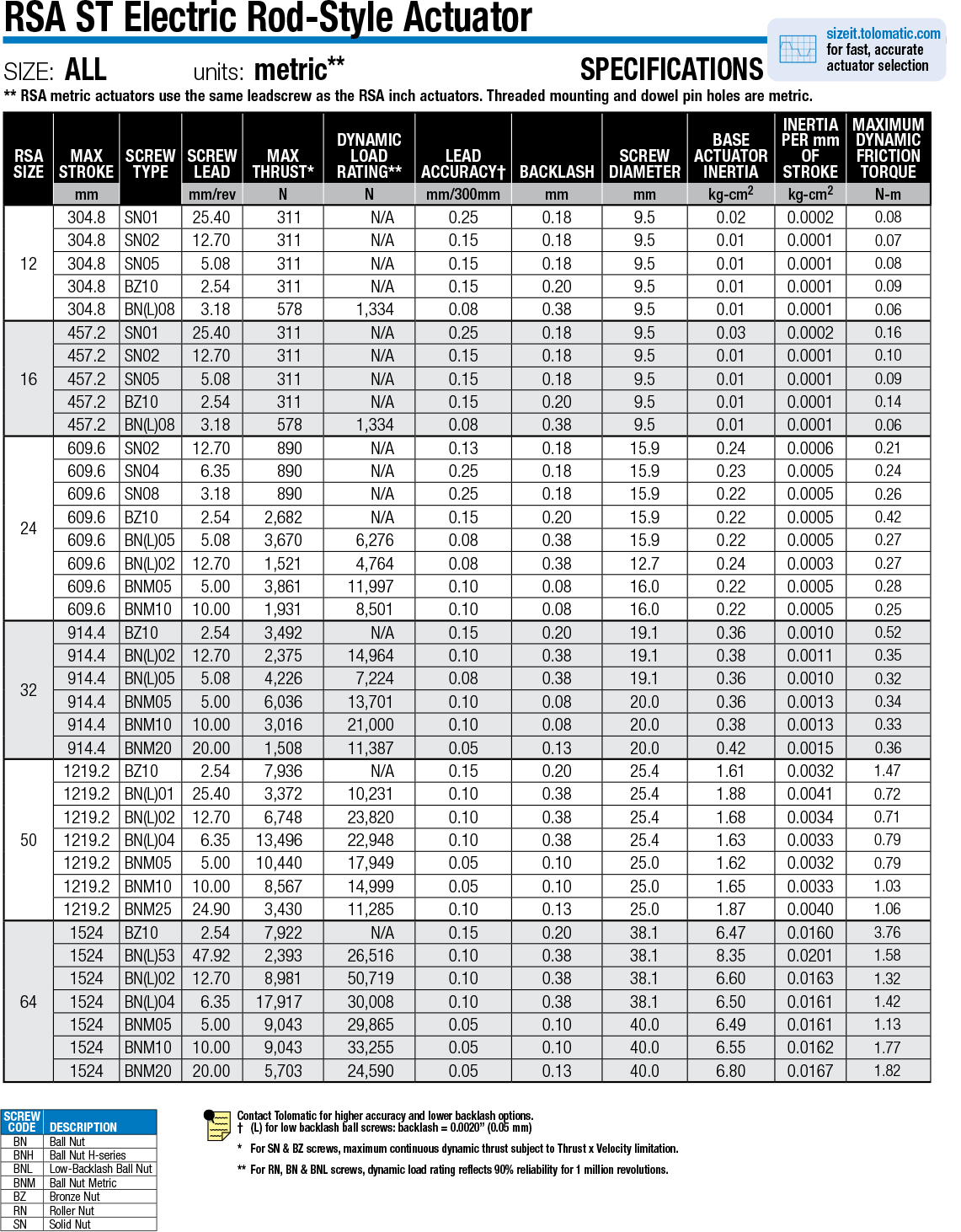

RSA-ST Detailed Specifications - Metric Measurements

RSA SIZE MAX STROKE SCREW TYPE SCREW LEAD MAX THRUST* DYNAMIC LOAD RATING** LEAD ACCURACY† BACKLASH SCREW DIAMETER BASE ACTUATOR INERTIA INERTIA PER mm OF STROKE MAXIMUM DYNAMIC FRICTION TORQUE
mm mm/rev N N mm/300mm mm mm kg-cm2 kg-cm2 N-m
12 304.8 SN01 25.40 311 N/A 0.25 0.18 9.5 0.02 0.0002 0.08
304.8 SN02 12.70 311 N/A 0.15 0.18 9.5 0.01 0.0001 0.07
304.8 SN05 5.08 311 N/A 0.15 0.18 9.5 0.01 0.0001 0.08
304.8 BZ10 2.54 311 N/A 0.15 0.20 9.5 0.01 0.0001 0.09
304.8 BN(L)08 3.18 578 1,334 0.08 0.38 9.5 0.01 0.0001 0.06
16 457.2 SN01 25.40 311 N/A 0.25 0.18 9.5 0.03 0.0002 0.16
457.2 SN02 12.70 311 N/A 0.15 0.18 9.5 0.01 0.0001 0.10
457.2 SN05 5.08 311 N/A 0.15 0.18 9.5 0.01 0.0001 0.09
457.2 BZ10 2.54 311 N/A 0.15 0.20 9.5 0.01 0.0001 0.14
457.2 BN(L)08 3.18 578 1,334 0.08 0.38 9.5 0.01 0.0001 0.06
24 609.6 SN02 12.70 890 N/A 0.13 0.18 15.9 0.24 0.0006 0.21
609.6 SN04 6.35 890 N/A 0.25 0.18 15.9 0.23 0.0005 0.24
609.6 SN08 3.18 890 N/A 0.25 0.18 15.9 0.22 0.0005 0.26
609.6 BZ10 2.54 2,682 N/A 0.15 0.20 15.9 0.22 0.0005 0.42
609.6 BN(L)05 5.08 3,670 6,276 0.08 0.38 15.9 0.22 0.0005 0.27
609.6 BN(L)02 12.70 1,521 4,764 0.08 0.38 12.7 0.24 0.0003 0.27
609.6 BNM05 5.00 3,861 11,997 0.10 0.08 16.0 0.22 0.0005 0.28
609.6 BNM10 10.00 1,931 8,501 0.10 0.08 16.0 0.22 0.0005 0.25
32 914.4 BZ10 2.54 3,492 N/A 0.15 0.20 19.1 0.36 0.0010 0.52
914.4 BN(L)02 12.70 2,375 14,964 0.10 0.38 19.1 0.38 0.0011 0.35
914.4 BN(L)05 5.08 4,226 7,224 0.08 0.38 19.1 0.36 0.0010 0.32
914.4 BNM05 5.00 6,036 13,701 0.10 0.08 20.0 0.36 0.0013 0.34
914.4 BNM10 10.00 3,016 21,000 0.10 0.08 20.0 0.38 0.0013 0.33
914.4 BNM20 20.00 1,508 11,387 0.05 0.13 20.0 0.42 0.0015 0.36
50 1219.2 BZ10 2.54 7,936 N/A 0.15 0.20 25.4 1.61 0.0032 1.47
1219.2 BN(L)01 25.40 3,372 10,231 0.10 0.38 25.4 1.88 0.0041 0.72
1219.2 BN(L)02 12.70 6,748 23,820 0.10 0.38 25.4 1.68 0.0034 0.71
1219.2 BN(L)04 6.35 13,496 22,948 0.10 0.38 25.4 1.63 0.0033 0.79
1219.2 BNM05 5.00 10,440 17,949 0.05 0.10 25.0 1.62 0.0032 0.79
1219.2 BNM10 10.00 8,567 14,999 0.05 0.10 25.0 1.65 0.0033 1.03
1219.2 BNM25 24.90 3,430 11,285 0.10 0.13 25.0 1.87 0.0040 1.06
64 1524 BZ10 2.54 7,922 N/A 0.15 0.20 38.1 6.47 0.0160 3.76
1524 BN(L)53 47.92 2,393 26,516 0.10 0.38 38.1 8.35 0.0201 1.58
1524 BN(L)02 12.70 8,981 50,719 0.10 0.38 38.1 6.60 0.0163 1.32
1524 BN(L)04 6.35 17,917 30,008 0.10 0.38 38.1 6.50 0.0161 1.42
1524 BNM05 5.00 9,043 29,865 0.05 0.10 40.0 6.49 0.0161 1.13
1524 BNM10 10.00 9,043 33,255 0.05 0.10 40.0 6.55 0.0162 1.77
1524 BNM20 20.00 5,703 24,590 0.05 0.13 40.0 6.80 0.0167 1.82

Contact Tolomatic for higher accuracy and lower backlash options.
† (L) for low backlash ball screws: backlash = 0.0020” (0.05 mm)
* For SN & BZ screws, maximum continuous dynamic thrust subject to Thrust x Velocity limitation.
** For RN, BN & BNL screws, dynamic load rating reflects 90% reliability for 1 million revolutions.
§ RSA50 & RSA64 extended stroke length 48″ (1219 mm) available for roller screws, contact Tolomatic for production time

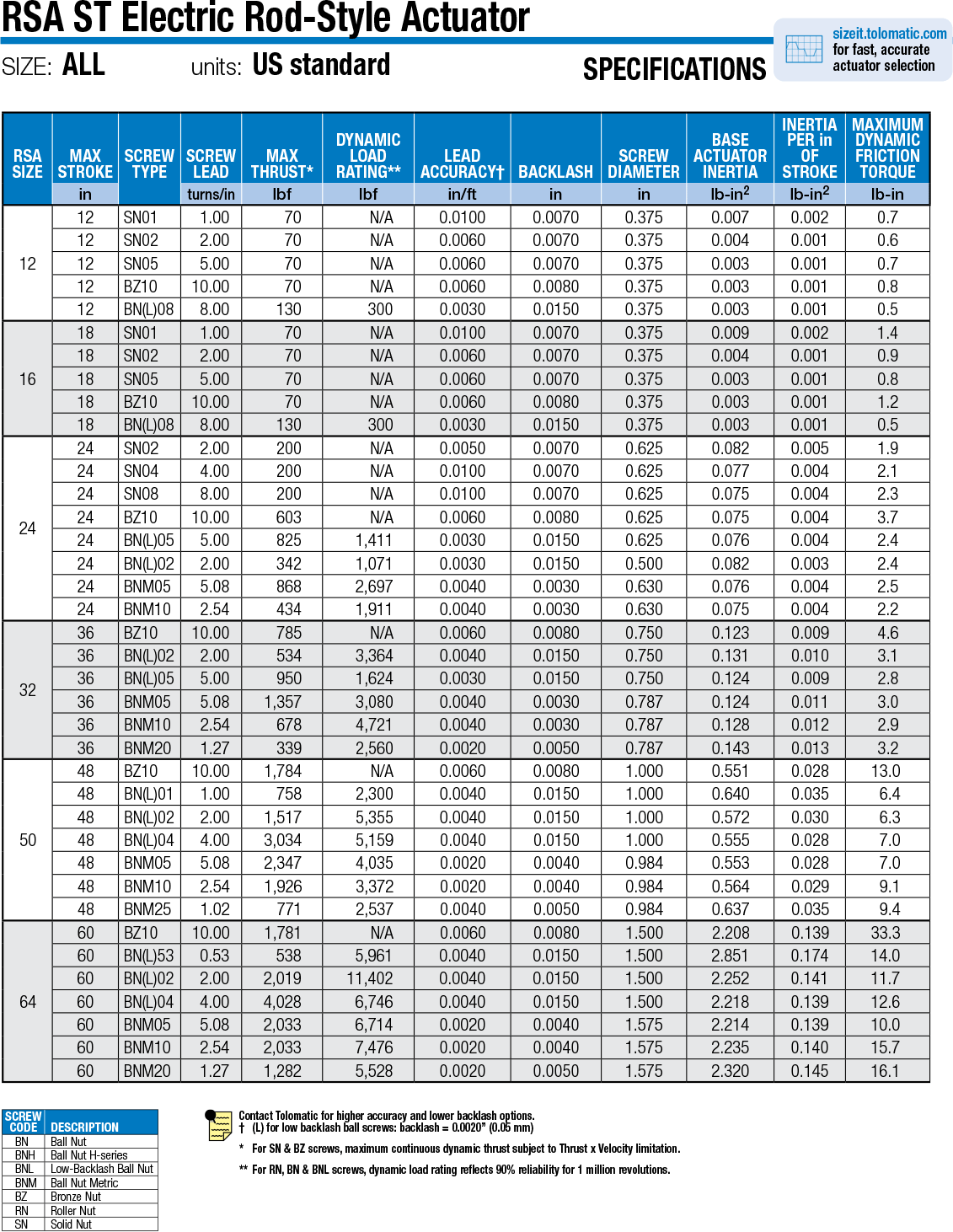

RSA-ST Detailed Specifications - US Measurements

RSA SIZE MAX STROKE SCREW TYPE SCREW LEAD MAX THRUST* DYNAMIC LOAD RATING** LEAD ACCURACY† BACKLASH SCREW DIAMETER BASE ACTUATOR INERTIA INERTIA PER in OF STROKE MAXIMUM DYNAMIC FRICTION TORQUE
in turns/in lbf lbf in/ft in in lb-in2 lb-in2 lb-in
12 12 SN01 1.00 70 N/A 0.0100 0.0070 0.375 0.007 0.002 0.7
12 SN02 2.00 70 N/A 0.0060 0.0070 0.375 0.004 0.001 0.6
12 SN05 5.00 70 N/A 0.0060 0.0070 0.375 0.003 0.001 0.7
12 BZ10 10.00 70 N/A 0.0060 0.0080 0.375 0.003 0.001 0.8
12 BN(L)08 8.00 130 300 0.0030 0.0150 0.375 0.003 0.001 0.5
16 18 SN01 1.00 70 N/A 0.0100 0.0070 0.375 0.009 0.002 1.4
18 SN02 2.00 70 N/A 0.0060 0.0070 0.375 0.004 0.001 0.9
18 SN05 5.00 70 N/A 0.0060 0.0070 0.375 0.003 0.001 0.8
18 BZ10 10.00 70 N/A 0.0060 0.0080 0.375 0.003 0.001 1.2
18 BN(L)08 8.00 130 300 0.0030 0.0150 0.375 0.003 0.001 0.5
24 24 SN02 2.00 200 N/A 0.0050 0.0070 0.625 0.082 0.005 1.9
24 SN04 4.00 200 N/A 0.0100 0.0070 0.625 0.077 0.004 2.1
24 SN08 8.00 200 N/A 0.0100 0.0070 0.625 0.075 0.004 2.3
24 BZ10 10.00 603 N/A 0.0060 0.0080 0.625 0.075 0.004 3.7
24 BN(L)05 5.00 825 1,411 0.0030 0.0150 0.625 0.076 0.004 2.4
24 BN(L)02 2.00 342 1,071 0.0030 0.0150 0.500 0.082 0.003 2.4
24 BNM05 5.08 868 2,697 0.0040 0.0030 0.630 0.076 0.004 2.5
24 BNM10 2.54 434 1,911 0.0040 0.0030 0.630 0.075 0.004 2.2
32 36 BZ10 10.00 785 N/A 0.0060 0.0080 0.750 0.123 0.009 4.6
36 BN(L)02 2.00 534 3,364 0.0040 0.0150 0.750 0.131 0.010 3.1
36 BN(L)05 5.00 950 1,624 0.0030 0.0150 0.750 0.124 0.009 2.8
36 BNM05 5.08 1,357 3,080 0.0040 0.0030 0.787 0.124 0.011 3.0
36 BNM10 2.54 678 4,721 0.0040 0.0030 0.787 0.128 0.012 2.9
36 BNM20 1.27 339 2,560 0.0020 0.0050 0.787 0.143 0.013 3.2
50 48 BZ10 10.00 1,784 N/A 0.0060 0.0080 1.000 0.551 0.028 13.0
48 BN(L)01 1.00 758 2,300 0.0040 0.0150 1.000 0.640 0.035 6.4
48 BN(L)02 2.00 1,517 5,355 0.0040 0.0150 1.000 0.572 0.030 6.3
48 BN(L)04 4.00 3,034 5,159 0.0040 0.0150 1.000 0.555 0.028 7.0
48 BNM05 5.08 2,347 4,035 0.0020 0.0040 0.984 0.553 0.028 7.0
48 BNM10 2.54 1,926 3,372 0.0020 0.0040 0.984 0.564 0.029 9.1
48 BNM25 1.02 771 2,537 0.0040 0.0050 0.984 0.637 0.035 9.4
64 60 BZ10 10.00 1,781 N/A 0.0060 0.0080 1.500 2.208 0.139 33.3
60 BN(L)53 0.53 538 5,961 0.0040 0.0150 1.500 2.851 0.174 14.0
60 BN(L)02 2.00 2,019 11,402 0.0040 0.0150 1.500 2.252 0.141 11.7
60 BN(L)04 4.00 4,028 6,746 0.0040 0.0150 1.500 2.218 0.139 12.6
60 BNM05 5.08 2,033 6,714 0.0020 0.0040 1.575 2.214 0.139 10.0
60 BNM10 2.54 2,033 7,476 0.0020 0.0040 1.575 2.235 0.140 15.7
60 BNM20 1.27 1,282 5,528 0.0020 0.0050 1.575 2.320 0.145 16.1

Contact Tolomatic for higher accuracy and lower backlash options.
† (L) for low backlash ball screws: backlash = 0.0020” (0.05 mm)
* For SN & BZ screws, maximum continuous dynamic thrust subject to Thrust x Velocity limitation.
** For RN, BN & BNL screws, dynamic load rating reflects 90% reliability for 1 million revolutions.
§ RSA50 & RSA64 extended stroke length 48″ (1219 mm) available for roller screws, contact Tolomatic for production time

Dimensions

RSA-ST Actuator Dimensions

View and Print

RSA-HT Actuator Dimensions

View and Print

Get CAD

Additional Resources

Information Center:

English
Chinese
German
Spanish

Application Checklists

Case Studies

Catalogs & Brochures

Certifications

E-Books

Flyers

Guides

Tech Bulletins

Terms & Conditions

Videos

White Papers

Success Stories

Theater Prop Actuation

Product Family: Electric
Product Used: RSA50

Fuel Line Processing

Product Family: Electric
Product Used: RSA Rod Actuator

Measurement & Inspection

Product Family: Electric
Product Used: RSA

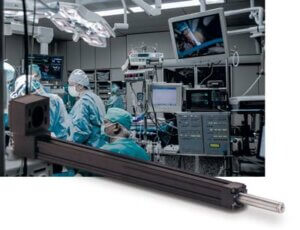

In-Clinic Medical Procedure

Product Family: Electric
Product Used: RSA Rod Actuator

Life Testing Power Drill

Product Family: Electric
Product Used: RSA Screw Actuator

Case Packing Changeover

Product Family: Electric
Product Used: RSA Rod Actuator

Cosmetic Powder Forming/Pressing/Packing

Product Family: Electric
Product Used: RSA50 Rod Actuator with RP

Coolant Head Positioning

Challenge: Moving a manifold of coolant jets.
Product Family: Electric
Product Used: RSA

Process Controls-Electronic Boards

Challenge: Quality control identified improper soldering and insulation of components due to inconsistent dispensing of glue/solder paste material.
Product Family: Electric
Product Used: RSA

Lifting Material Conveyors

Challenge: Directing product to secondary conveyor line.
Product Family: Electric
Product Used: RSA32 Electric Linear Actuator

Product Feeder

Challenge: Product feeding in automotive tire manufacturing.
Product Family: Electric
Product Used: RSA32 Screw-Drive Electric Rod-Style Actuators

Green Tire Transfer

Challenge: Transferring tire in & out of curing station during automotive tire manufacturing
Product Family: Electric
Product Used: RSA32 Screw-Drive Electric Rod-Style Actuators

Plastic Welding

Challenge: Positioning a plastic welding head.
Product Family: Electric
Product Used: RSA Electric Linear Actuator

Powertrain Assembly

Product Family: Electric
Product Used: RSA & RSX Actuators

Fiberglass Rolling

Challenge: A manufacturer of fiberglass automation equipment was using pneumatic cylinders to control the vertical roller and the winding roller used to package fiberglass insulation into rolls.
Product Family: Electric Rod-Style Actuator
Product Used: RSA

Steam Injection

Challenge: Steam injection
Product Family: Electric Actuator
Product Used: RSA12

3D Printing For Home Construction

Application Description
Articulate the concrete slurry dispensing head forming exterior/interior walls used in residential construction.

Conveyor Case Packer Automation

Application Description:
Convert the conveyor packer, located at the end of the conveyor, from pneumatic cylinders to electric actuators. Motions required include: several high-speed push operations, a centering operation, a tipping operation, and a container lift operation.

Dough Pressing

Application Description:
OEM of automated baking equipment for dough pressing

Plastics Thermoforming

Application Description
Open and close door on a clam shell vacuum sealer used for plastics thermoforming.



Steering Linkage Test

Application Description: Pull Tester Assembly – Pull test for steering/strut linkage assemblies

Powder Filling

Challenge: Filling a variety of container sizes.
Product Family: Electric
Product Used: JVL integrated motor and RSA Electric Rod-Style Actuator

Fluid Injection

Product Family: Electric
Product Used: RSA12 Electric Rod Actuators
Product Type: Modified Standard

Application Requirements:
Stroke: 154.9 mm (6.1″)
Speed: >25.4 mm/sec (>1.0″/sec)
Thrust: 448 N (100 lbf)

Additional RSA information

RSA electric linear rod actuators feature accurate and high force performance, making them ideal for replacing pneumatic & hydraulic cylinders. These electric linear actuators feature acme, ball or roller screw selections, with enhanced high thrust bearings and heavy duty internal bumpers. A rigid, strong aluminum housing allows for easy mounting of switches and sensors. The standard grease zerk on HT units extends screw life by making relubrication easy and convenient without disassembly. RSA actuators are suitable for general motion control, valve actuation, punch press, injection molding and many more applications.

  • 6 body sizes with built-to-order stroke lengths and mounting options
  • Stroke lengths up to 60 inches (1,524 mm)
  • Forces up to 13,039 lbf (58,001 N)
  • Acme, Ball, and Roller Screw options
  • IP67 option to protect against dust and water ingress
  • Flexible mounting options
  • Need faster delivery? Quick ship configurations now available below

Learn about roller screw and ball screw technologies

Email CAD File for

Support
Industries
About Us
Products
Info Center
