Fixed Hub & Disc Assemblies
Tolomatic fixed hub and disc assemblies are available with 6-5/16-, 8-, 10-, 12-, and 16-inch discs. Fixed hub and disc assemblies can be used with pneumatic, hydraulic, mechanical, or spring applied disc brakes.
- Carbon 1010 steel disc material
- Hubs are machined from cold rolled steel
- Includes socket head cap screws and keyway set screws
Order Fixed Hub & Disc Assemblies
Part Number
0801-0008
0801-0010
0801-0012
0801-0014
0801-0016
Description
Disc 6-5/16" Fixed Hub & Disc Assembly
Disc 6-5/16" Fixed Hub & Disc Assembly
Disc 6-5/16" Fixed Hub & Disc Assembly
Disc 6-5/16" Fixed Hub & Disc Assembly
Disc 6-5/16" Fixed Hub & Disc Assembly
Disc Diameter
6-5/16"
6-5/16"
6-5/16"
6-5/16"
6-5/16"
Disc Thickness
0.156 in
0.156 in
0.156 in
0.156 in
0.156 in
Bore Size
0.500 in
0.625 in
0.750 in
0.875 in
1.000 in
Key Size
.125 x .125 in
.188 x .188 in
.188 x .188 in
.188 x .188 in
.250 x .250 in
Torque Rating
3,000 in-lb
3,000 in-lb
3,000 in-lb
3,000 in-lb
3,000 in-lb
Max. BTU Per Hour
283.8
283.8
283.8
283.8
283.8
Weight
1.40 lbs
1.40 lbs
1.40 lbs
1.40 lbs
1.40 lbs
Features & Ordering
Fixed Hub & Disc Assemblies Features
Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify, service parts information, and selection guidelines and tips.
Find a Tolomatic distributor
Specifications
Fixed Hub & Disc Assemblies Specs & Performance Data

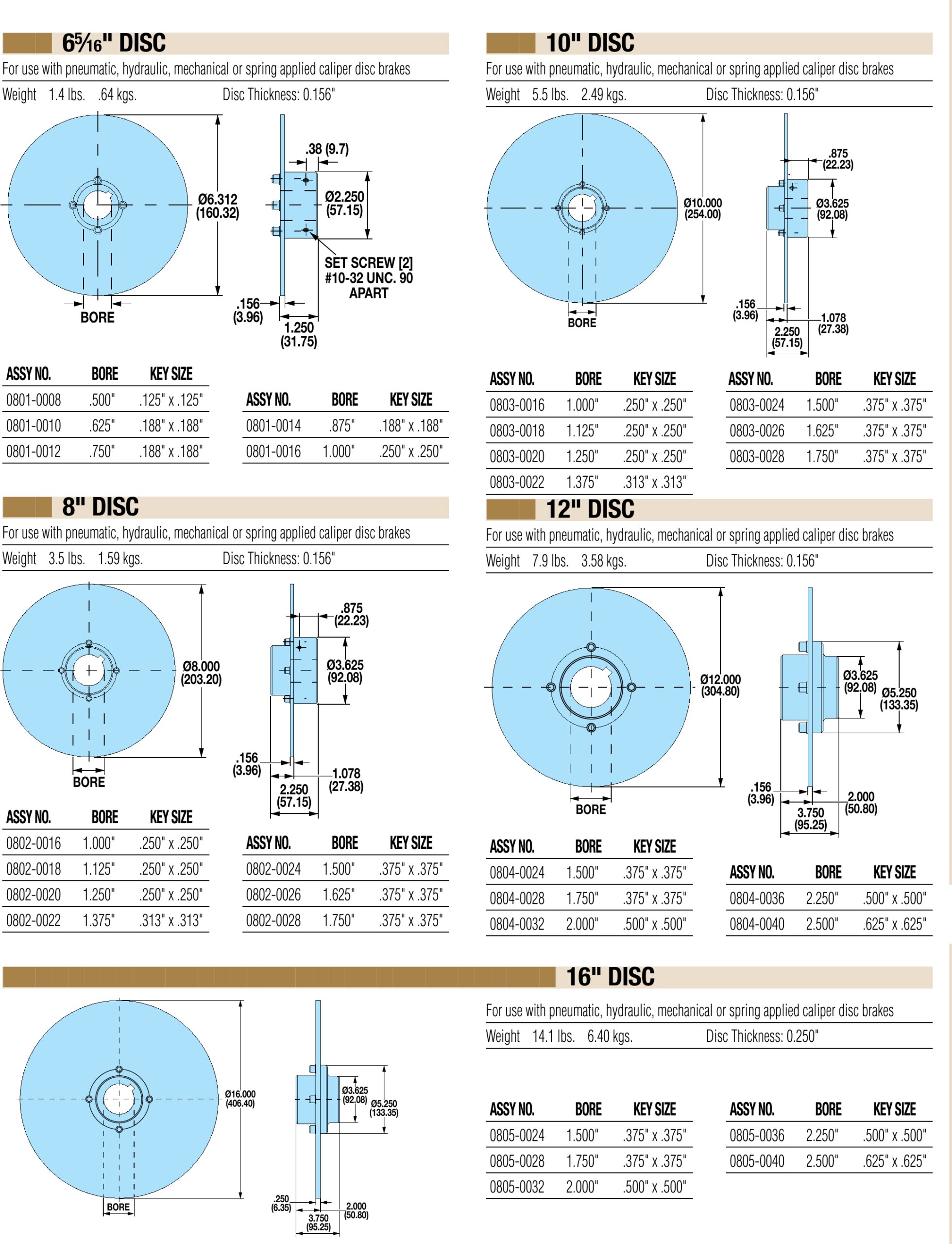

Fixed Hub & Disc Assemblies Dimensions
