MG Magnetic Linear Cylinders
Magnetic cylinders are an excellent choice for applications with environmental concerns.
The MG magnetic linear cylinder has no mechanical connection of the carrier to the piston resulting in easy rotation of its mounting block for mounting flexibility.
- Magnetic coupling strengths up to 100 lbs (45.4 kg)
- Field repairable design minimizes downtime
- Fully enclosed actuator body for contaminant prevention
| Size | MG 100 |
|---|---|
| Standard | 1.00 in |
| Metric | 25 mm |
| Size | MG 100 |
|---|---|
| Standard | 80 in |
| Metric | 2,032 mm |
| Size | MG 100 |
|---|---|
| Standard | 78 lbf |
| Metric | 347 N |
| Size | MG 100 |
|---|---|
| Standard | 100 lb |
| Metric | 445 N |
Features & Ordering
MG Features
Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify and configure your actuator, service parts information, and selection guidelines and tips.
Find a Tolomatic distributor
MG Selection Guidelines

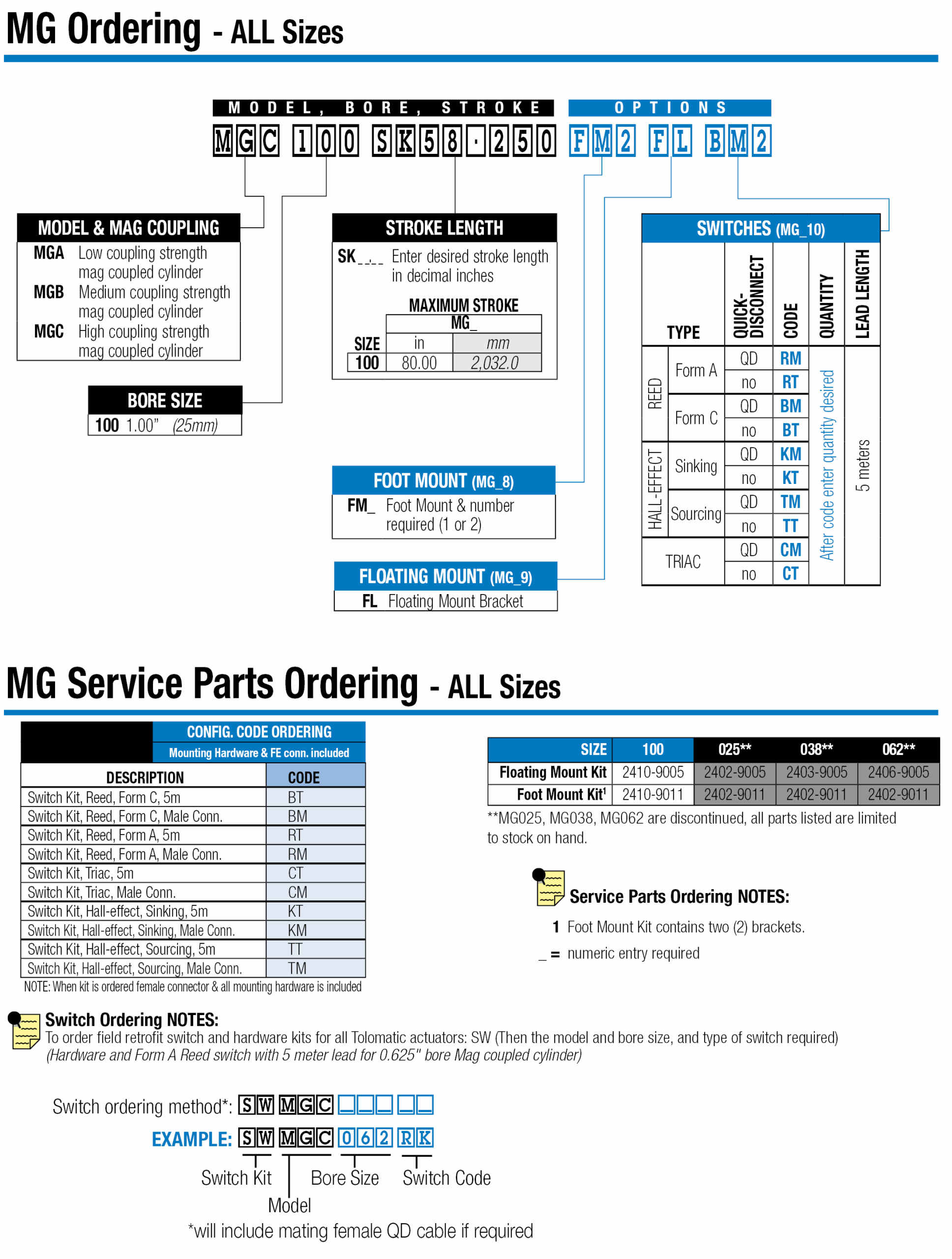

MG Ordering
Specifications
MG Specs

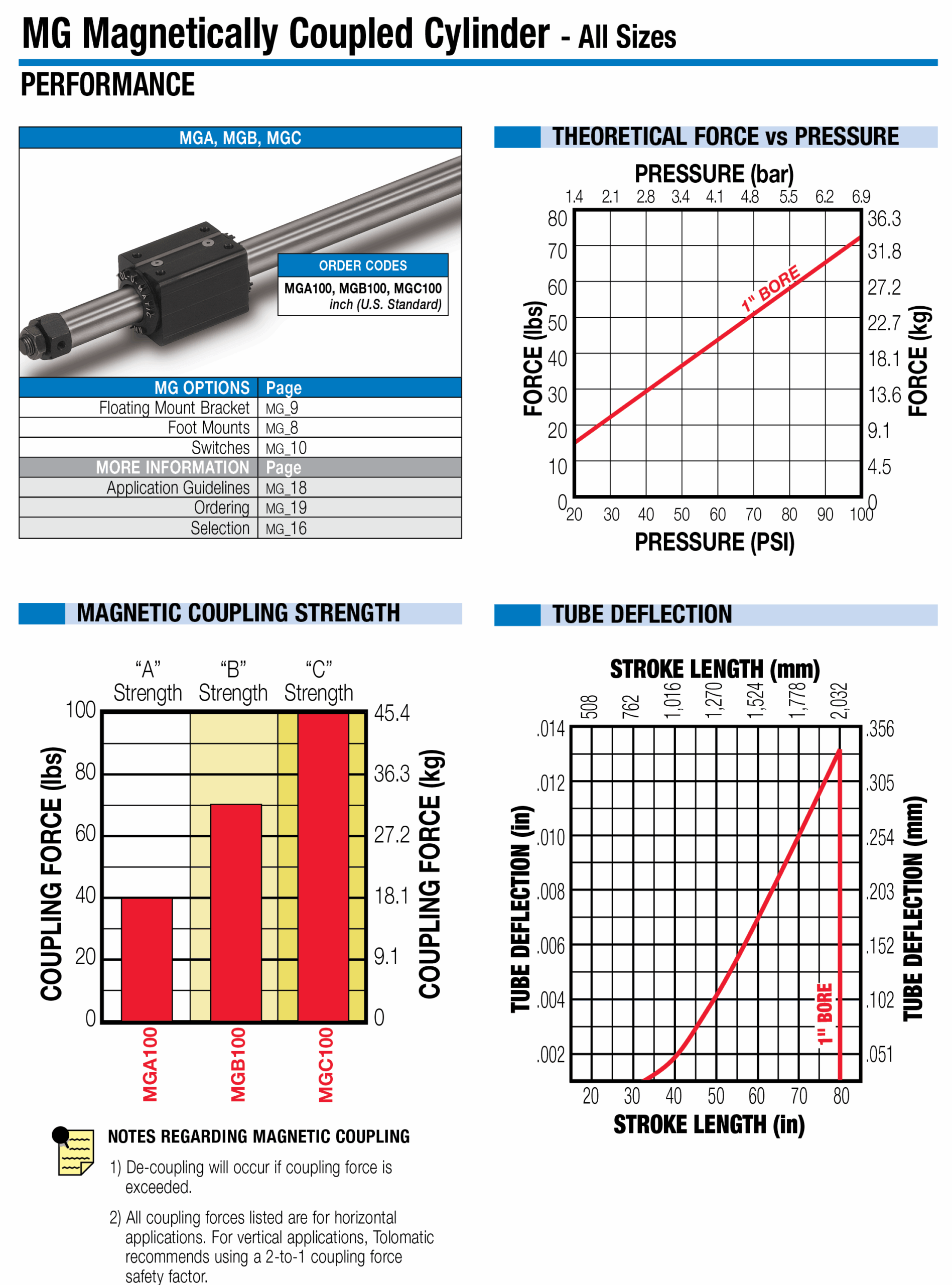

MG Performance Specs
MG Switches
MG & MGS Switches Performance, Wiring & Dimensions
Dimensions
MG Dimensions
MG Floating Mount Dimensions
