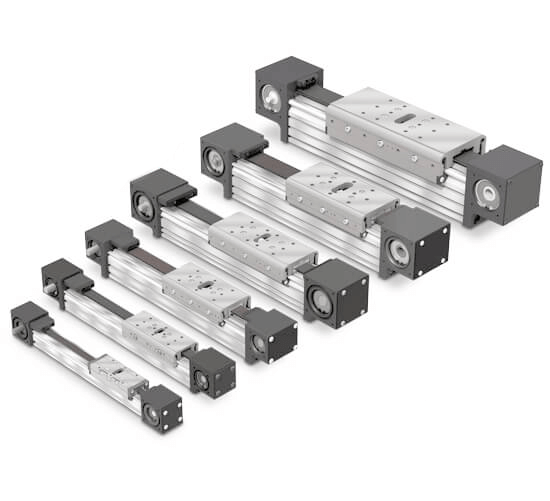

MXB-S Actuators

MXB-S linear belt drive actuators provide optimal performance, rigidity and life.

New Capabilities: Stroke Lengths 400 inches +

The MXB-S is a compact belt drive linear actuator for use in applications requiring light to moderate load carrying and guidance. The bearing system of the MXB-S linear belt drive utilizes two field-replaceable solid bearings that optimize performance, rigidity and life. Featuring a trapezoidal, self-cleaning bearing system, the MXB-s linear belt drive a good choice for applications in paper production or sawmills. This low-cost, economical belt drive actuator features speeds up to 100 in/sec (2540 mm/sec) and thrusts up to 418 lbf (1860 N). All MXB-S linear belt drive actuators are built-to-order in stroke lengths up to 414 inches (10,516 mm).

6 body sizes
Oversized pulley bearings for longer life
High-power polyurethan belt resists stretching
Easy access belt tensioning system with no disassembly required
Field replaceable bearings for extended service life
Large, flexible carrier mounting surface
Your Motor Here® compatible for easy direct drive motor installation

MXB-S Maximum Stroke
Size	MXB-S 16	MXB-S 25	MXB-S 32	MXB-S 40	MXB-S 50	MXB-S 63
Standard	200 in	414 in	413 in	412 in	410 in	217 in
Metric	5,080 mm	10,516 mm	10,490 mm	10,465 mm	10,414 mm	5,512 mm

M XB-S Maximum Force
Size	MXB-S 16	MXB-S 25	MXB-S 32	MXB-S 40	MXB-S 50	MXB-S 63
Standard	38 lbf	151 lbf	209 lbf	250 lbf	325 lbf	418 lbf
Metric	169 N	672 N	930 N	1,112 N	1,446 N	1,859 N

MXB-S Maximum Load
Size	MXB-S 16	MXB-S 25	MXB-S 32	MXB-S 40	MXB-S 50	MXB-S 63
Standard	35 lbs	70 lbs	150 lbs	225 lbs	315 lbs	520 lbs
Metric	16 kg	32 kg	68 kg	102 kg	143 kg	236 kg

MXB-S Maximum Speed
Size	MXB-S 16	MXB-S 25	MXB-S 32	MXB-S 40	MXB-S 50	MXB-S 63
Standard	100 in/sec	100 in/sec	100 in/sec	100 in/sec	100 in/sec	100 in/sec
Metric	2,540 mm/sec	2,540 mm/sec	2,540 mm/sec	2,540 mm/sec	2,540 mm/sec	2,540 mm/sec
