One-Piece Hub & Disc
Tolomatic one-piece hub and disc is available in a 6-inch disc size and can be used with pneumatic, hydraulic, mechanical or spring applied brakes.
- G3000 cast iron
- Flat within .010 inch (.25 mm)
- 80 (RMS) micro-inch finish
- Two key sizes
Order One-Piece Hub & Disc
Part Number
0801-1210
0801-1230
Description
6" One-Piece Hub and Disc
6" One-Piece Hub and Disc
Disc Diameter
6 in
6 in
Disc Thickness
0.187 in
0.187 in
Bore Size
1.000 in
1.000 in
Key Size
.188 x .188 in
.25 x .25 in
Weight
1.80 lbs
1.80 lbs
Features & Ordering
One-Piece Hub & Disc Features
Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify, service parts information, and selection guidelines and tips.
Find a Tolomatic distributor
Specifications

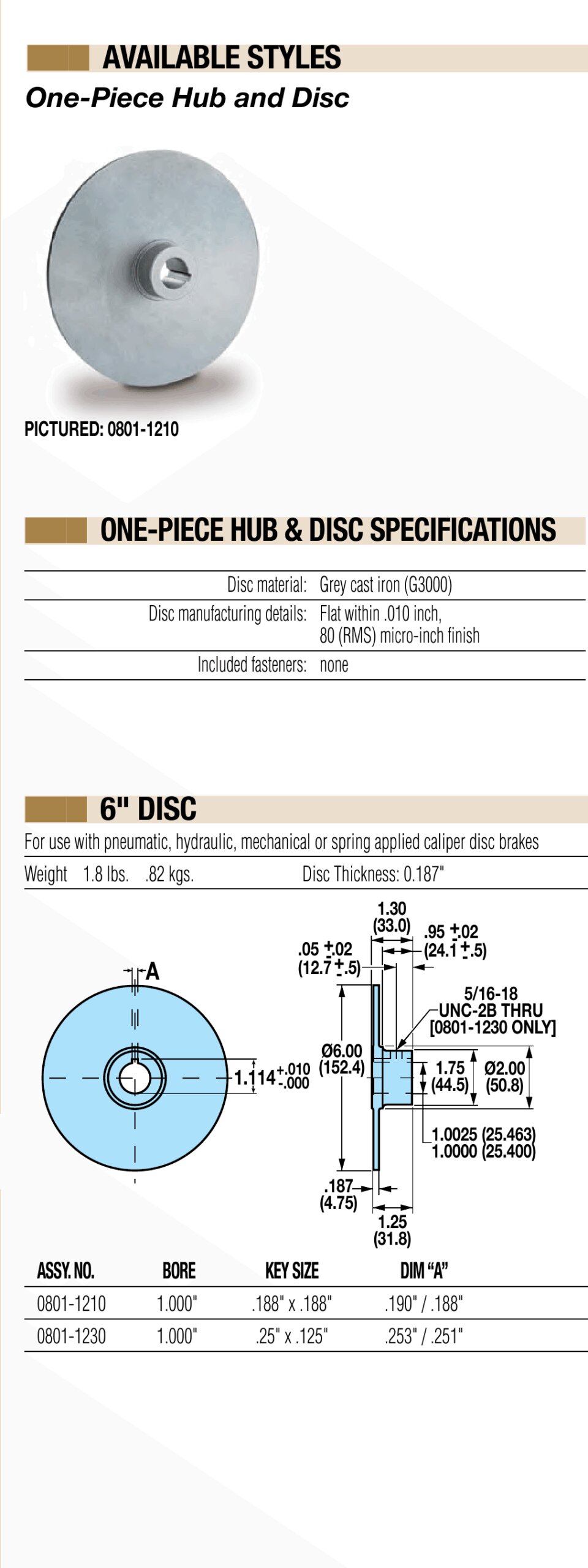

One-Piece Hub & Disc Specs & Dimensions
