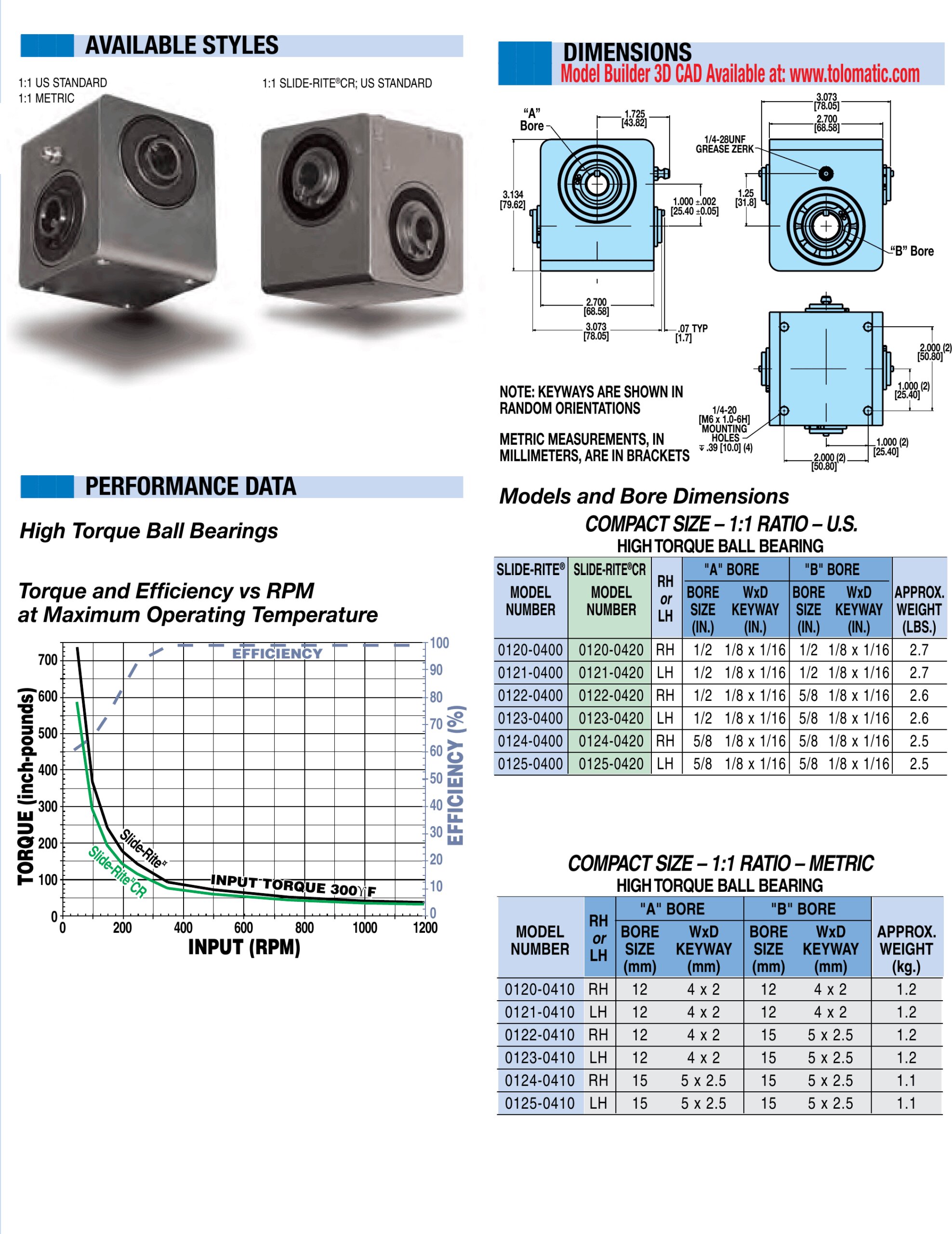

Slide-Rite® Compact 1 to 1 Ratio Right Angle Gearboxes

Tolomatic’s compact 1 to 1 Slide-Rite® right angle gearbox offers a small package but is capable of delivering up to 588 in-lbs (66.4 nm) of torque depending on input RPMs.

• High torque ball bearing design
• Solid one-piece aluminum housing seals gears from outside contaminants for smooth operation
• Right- or left-hand rotation to convert power either direction
• Easily slides axially along the drive or driven shaft for flexible positioning
• Leakproof performance for excellent service life
• Alloy steel helical gears for high performance

Order Slide-Rite® Compact 1:1  – U.S. Customary

Order Slide-Rite® Compact 1:1  – Metric
