Double-Acting Pneumatic Air Cylinders
The Tolomatic double acting pneumatic air cylinder offers the widest variety of sizes and options
Double acting pneumatic air cylinders offer a cost savings over Rod & Rodless cylinders when strokes exceed four feet and provide a versatile space-saving design.
- Strokes up to 7308 mm (287 in). Using couplers stroke lengths of 18 m (720 in) are possible
- 9 different bore sizes from 13 to 127 mm (1/2 to 5 in)
- Optional auto tensioners keeps cable rigid and extends cable and gland seal life
- 3-ported heads for convenient connection
- Aluminum tube standard; steel option available for strength
- Caliper disc brake option for additional holding force in vertical applications
| Units | CC 05 | CC 07 | CC 10 | CC 15 | CC 20 | CC 25 | CC 30 | CC 40 | CC 50 | CC 52 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Bore Size | in (mm) | 0.50 (13) | 0.75 (19) | 1.00 (25) | 1.50 (38) | 2.00 (51) | 2.50 (64) | 3.00 (76) | 4.00 (102) | 5.00 (127) | 2.00 (51) |
| Max. Stroke | in (mm) | 60 (1,524) | 138 (3,505) | 282 (7,163) | 280 (7,112) | 281 (7,137) | 281 (7,137) | 280 (7,112) | 279 (7,087) | 134 (3,404) | 280 (7,112) |
| Max. Force | lbf (N) | 19 (85) | 43 (191) | 78 (347) | 174 (774) | 618 (2,749) | 972 (4,324) | 1,398 (6,219) | 1,249 (5,556) | 1,919 (8,536) | 1,532 (6,815) |
Features & Ordering
CC Features
Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify and configure your actuator, service parts information, and selection guidelines and tips.
Find a Tolomatic distributor
CC Selection Guidelines
CC Ordering
CC Service Parts Ordering
CC Selection Example
CC Caliper Disc Brake Selection Guidelines
CC Caliper Disc Brake Selection Guidelines 2
Specifications
| Units | CC 05 | CC 07 | CC 10 | CC 15 | CC 20 | CC 25 | CC 30 | CC 40 | CC 50 | CC 52 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Bore Size | in (mm) | 0.50 (13) | 0.75 (19) | 1.00 (25) | 1.50 (38) | 2.00 (51) | 2.50 (64) | 3.00 (76) | 4.00 (102) | 5.00 (127) | 2.00 (51) |
| Maximum Stroke | in (mm) | 60 (1,524) | 138 (3,505) | 282 (7,163) | 280 (7,112) | 281 (7,137) | 281 (7,137) | 280 (7,112) | 279 (7,087) | 134 (3,404) | 280 (7,112) |
| Maximum Force | lbf (N) | 19 (85) | 43 (191) | 78 (347) | 174 (774) | 618 (2,749) | 972 (4,324) | 1,398 (6,219) | 1,249 (5,556) | 1,919 (8,536) | 1,532 (6,815) |

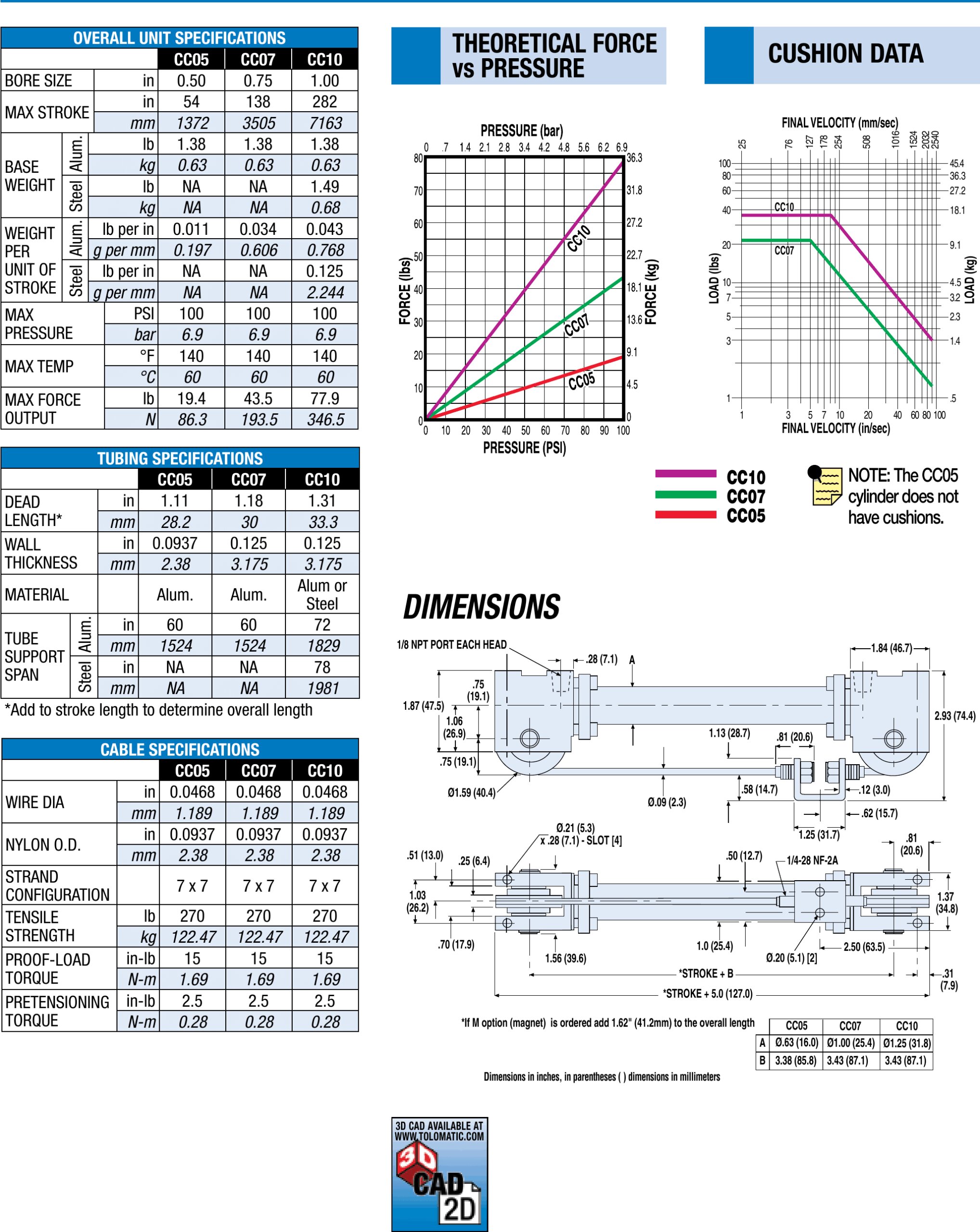

CC 05/07/10 Specs & Dimensions
CC 15 Specs & Dimensions
CC 20/25 Specs & Dimensions
CC 30/40/52 Specs & Dimensions
CC 50 Specs & Dimensions
CC Features & Options
CC Switch Specs
CC Switch Performance, Wiring & Dimensions
CC Automatic Tensioner
CC Brake Combinations
CC Determining Cable Lengths & Lubrication
CC Theoretical Force vs Pressure
CC Proof-Loading and Pretensioning Guidelines
Dimensions
CC 07/10/15/20/25 Automatic Tensioner Dimensions
CC 30/40/52/50 Automatic Tensioner Dimensions
CC 15/20/25 Brake Combination Dimensions
CC 30/40/52 Brake Combination Dimensions
Get CAD
Manuals & Part Sheets
- CC05 Double-Acting Cable Cylinder Part Sheet
- CC07 & CC10 Double-Acting Cable Cylinder Part Sheet
- CC15 Double-Acting Cable Cylinder Part Sheet
- CC20 & CC25 Double-Acting Cable Cylinder Part Sheet
- CC30/40/52 Double-Acting Cable Cylinder Part Sheet
- CC50 Double-Acting Cable Cylinder Part Sheet
- CC60 Double-Acting Cable Cylinder Part Sheet (Discontinued)
- CC80 Double-Acting Cable Cylinder Part Sheet (Discontinued)
Additional Resources
Information Center:
English
Chinese
German
Spanish
Catalogs & Brochures
- Cable Cylinder Catalog
- SOLUCIONES DE CONTROL DE MOVIMIENTO (Spanish, Corporate Overview-Motion Control Solutions Brochure)
- Unternehmensübersicht (German, Corporate Overview brochure)
- Brochure sur l'entreprise Tolomatic (French, Corporate Overview-Linear Motion Solutions Brochure)
- Pneumatic Actuator Catalog
- OEM Actuator Solutions Brochure
Flyers
Guides
Repair Kits
Terms & Conditions
Success Stories
Haunted House
Product Family: Pneumatic
Product Used: Double-Acting Cable Cylinder
Oil Rig Cable Guide
Challenge: Guiding cable onto a spool on an ocean oil rig.
Product Family: Cable Cylinder
Product Used: CC20
