MXP-N Compact Air Cylinders
MXP-N internal bearing compact air cylinder is a low-cost solution for applications requiring limited loads and bending moments.
The Tolomatic MXP-N internal bearing compact air cylinder offers a space-saving design over typical rod type air cylinders.
- Lowest breakaway pressure of the MXP line of cylinders
- Perfect for use in vertical applications
- Permanently lubricated internal bearing for reduced maintenance
| Size | MXP-N 16 | MXP-N 25 | MXP-N 32 | MXP-N 40 | MXP-N 50 | MXP-N 63 |
|---|---|---|---|---|---|---|
| Standard | 0.63 in | 1.00 in | 1.25 in | 1.50 in | 2.00 in | 2.50 in |
| Metric | 16 mm | 25 mm | 32 mm | 38 mm | 50 mm | 64 mm |
| Size | MXP-N 16 | MXP-N 25 | MXP-N 32 | MXP-N 40 | MXP-N 50 | MXP-N 63 |
|---|---|---|---|---|---|---|
| Standard | 206 in | 206 in | 205 in | 203 in | 203 in | 103 in |
| Metric | 5,232 mm | 5,232 mm | 5,207 mm | 5,156 mm | 5,156 mm | 2,616 mm |
| Size | MXP-N 16 | MXP-N 25 | MXP-N 32 | MXP-N 40 | MXP-N 50 | MXP-N 63 |
|---|---|---|---|---|---|---|
| Standard | 31 lbf | 79 lbf | 123 lbf | 177 lbf | 305 lbf | 491 lbf |
| Metric | 136 N | 349 N | 546 N | 786 N | 1,356 N | 2,184 N |
| Size | MXP-N 16 | MXP-N 25 | MXP-N 32 | MXP-N 40 | MXP-N 50 | MXP-N 63 |
|---|---|---|---|---|---|---|
| Standard | 30 lb | 65 lb | 115 lb | 195 lb | 270 lb | 370 lb |
| Metric | 14 kg | 30 kg | 52 kg | 88 kg | 122 kg | 168 kg |
MXP-N Features

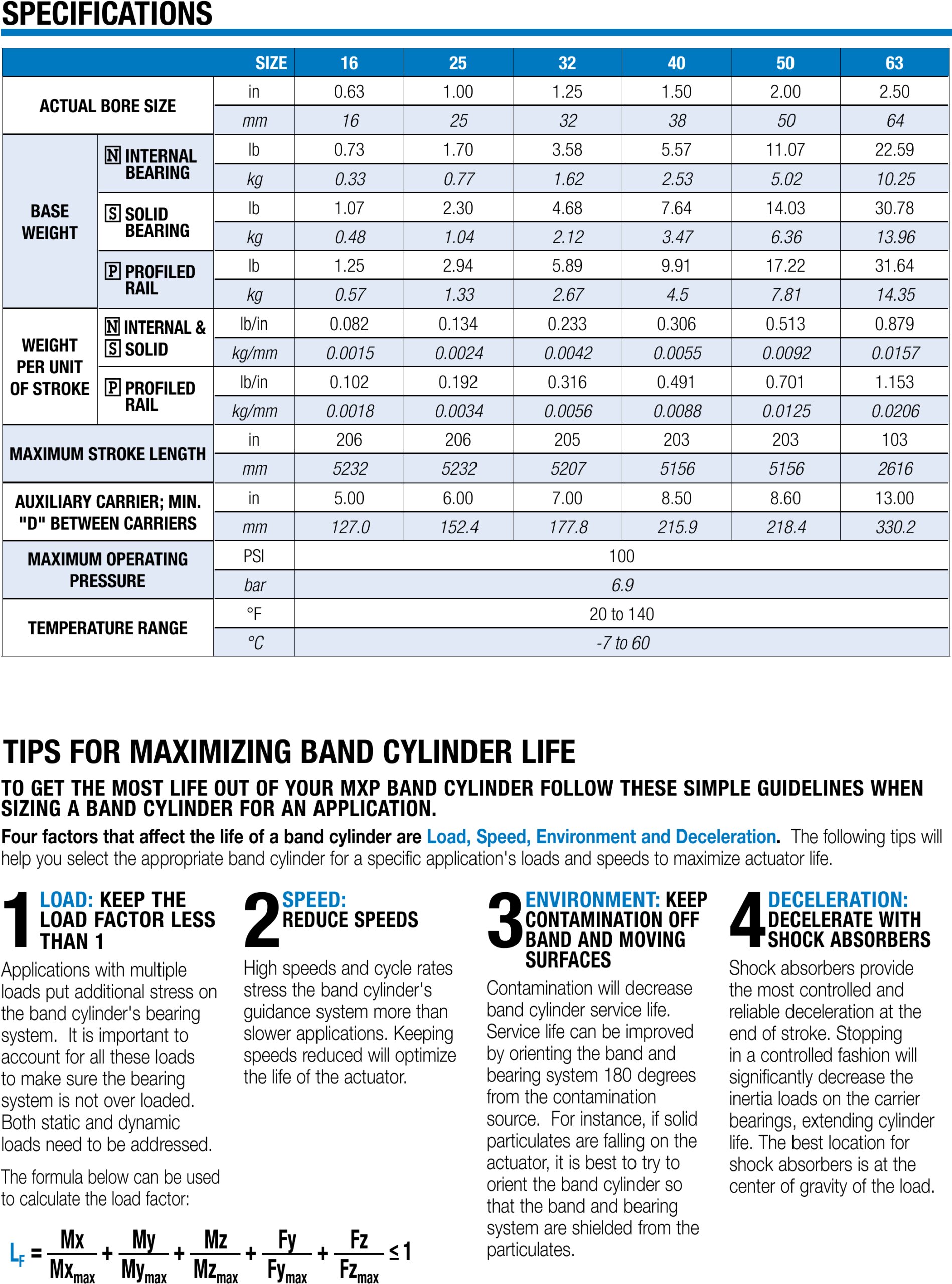

MXP-N General Specifications
MXP-N Auxiliary Moment and Load Capacity
MXP-N Standard Moment and Load Capacity
MXP Switches
MXP Switch Wiring Diagrams
MXP Adjustment Procedures
MXP-N Cushion & Shock Absorber Performance
MXP-N Tube Clamp Requirements

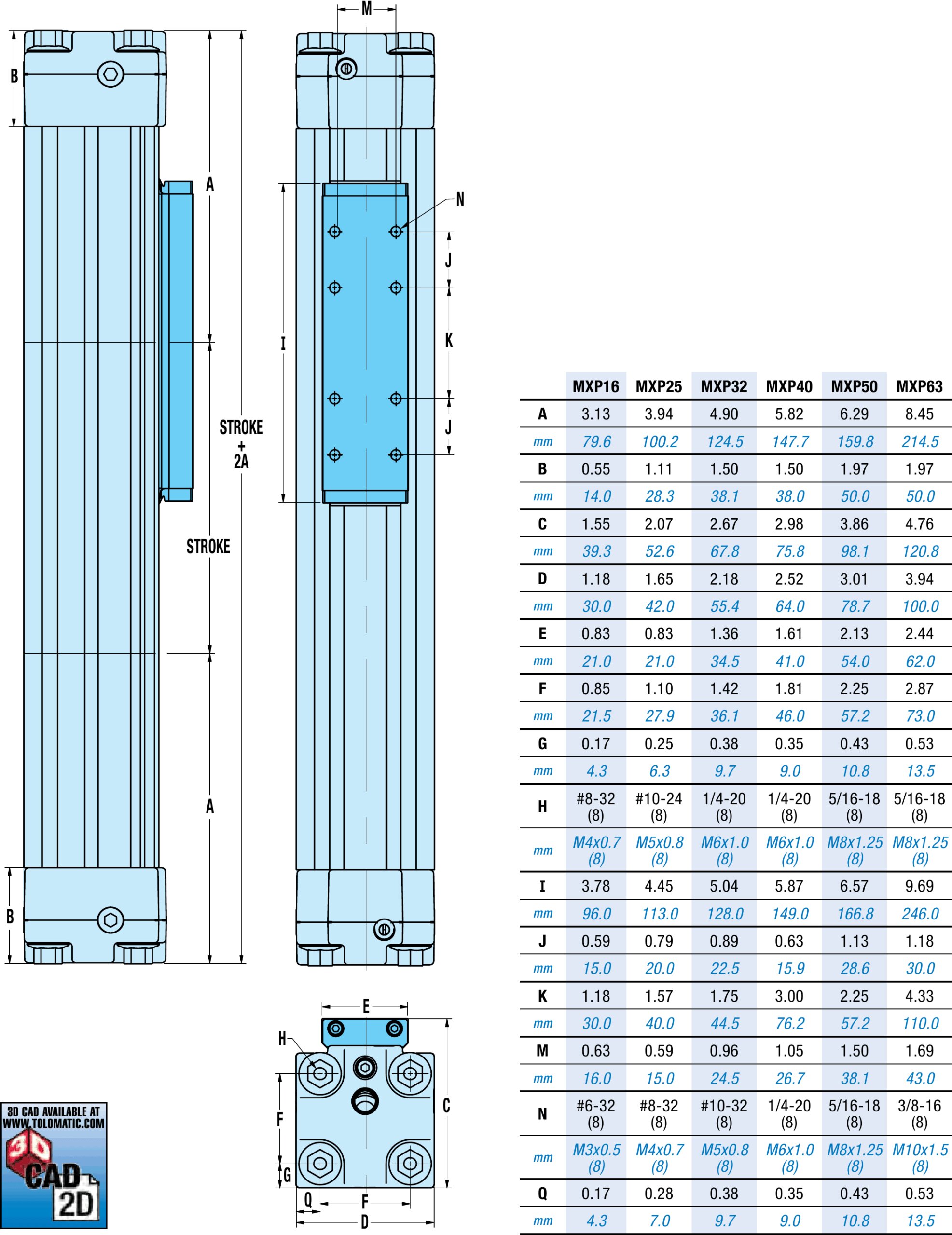

MXP-N Actuator Dimensions
MXP-N Option Dimensions
MXP-N 16/25/32 Porting Dimensions
MXP-N 40/50/63 Porting Dimensions
MXP-N Adjustable and Fixed Shock Absorber Dimensions
MXP Switch Dimensions
Information Center:
English
Chinese
German
Spanish
Application Tips
Catalogs & Brochures
- Corporate Overview-Linear Motion Solutions Brochure (English)
- SOLUCIONES DE CONTROL DE MOVIMIENTO (Spanish, Corporate Overview-Motion Control Solutions Brochure)
- Unternehmensübersicht (German, Corporate Overview brochure)
- Brochure sur l'entreprise Tolomatic (French, Corporate Overview-Linear Motion Solutions Brochure)
- MXP Pneumatic Actuator Catalog (English)
- MX 系列无杆气缸 (Chinese, MXP Pneumatic Actuator Brochure)
- Pneumatic Actuator Catalog
- OEM Actuator Solutions Brochure
- Soluciones Gantry y Multieje (^ES Gantry brochure)
Guides
Parts & Maintenance Sheets
- MXP16N Internal Bearing Compact Air Cylinder Part Sheet
- MXP25N Internal Bearing Compact Air Cylinder Part Sheet
- MXP32N Internal Bearing Compact Air Cylinder Part Sheet
- MXP40N Internal Bearing Compact Air Cylinder Part Sheet
- MXP50N Internal Bearing Compact Air Cylinder Part Sheet
- MXP63N Internal Bearing Compact Air Cylinder Part Sheet
- Conversion Sheet from BC406 to MXP16N
- Conversion Sheet from BC410 to MXP25N
- Conversion Sheet from BC412 to MXP32N
- Conversion Sheet from BC415 to MXP40N
- Conversion Sheet from BC420 to MXP50N
- Conversion Sheet from BC425 to MXP63N
Repair Kits
Terms & Conditions
White Papers
- Pneumatic rodless actuators: The 10 most common sizing mistakes and how to avoid them
- Electric actuators vs. pneumatic cylinders: A comparison based on total cost of ownership
- Select the right linear actuator: Making sense of manufacturer specifications
- Rules of actuator and guide alignment in linear motion systems
- IP ratings and the manufacturing environment: How to apply linear actuators for quality, safety and long service life.
- Introduction to accuracy and repeatability in linear motion systems
- Elektrische Antriebe und Pneumatikzylinder: Ein Vergleich basierend auf den Gesamtbetriebskosten weißes Papier (GERMAN, TCO WhitePaper)
Animatronic Targets
Product Family: Pneumatic
Product Used: MXP Rodless Cylinder
Application Checklists
Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify and configure your actuator, service parts information, and selection guidelines and tips.
Find a Tolomatic distributor
MXP-N Selection Guidelines

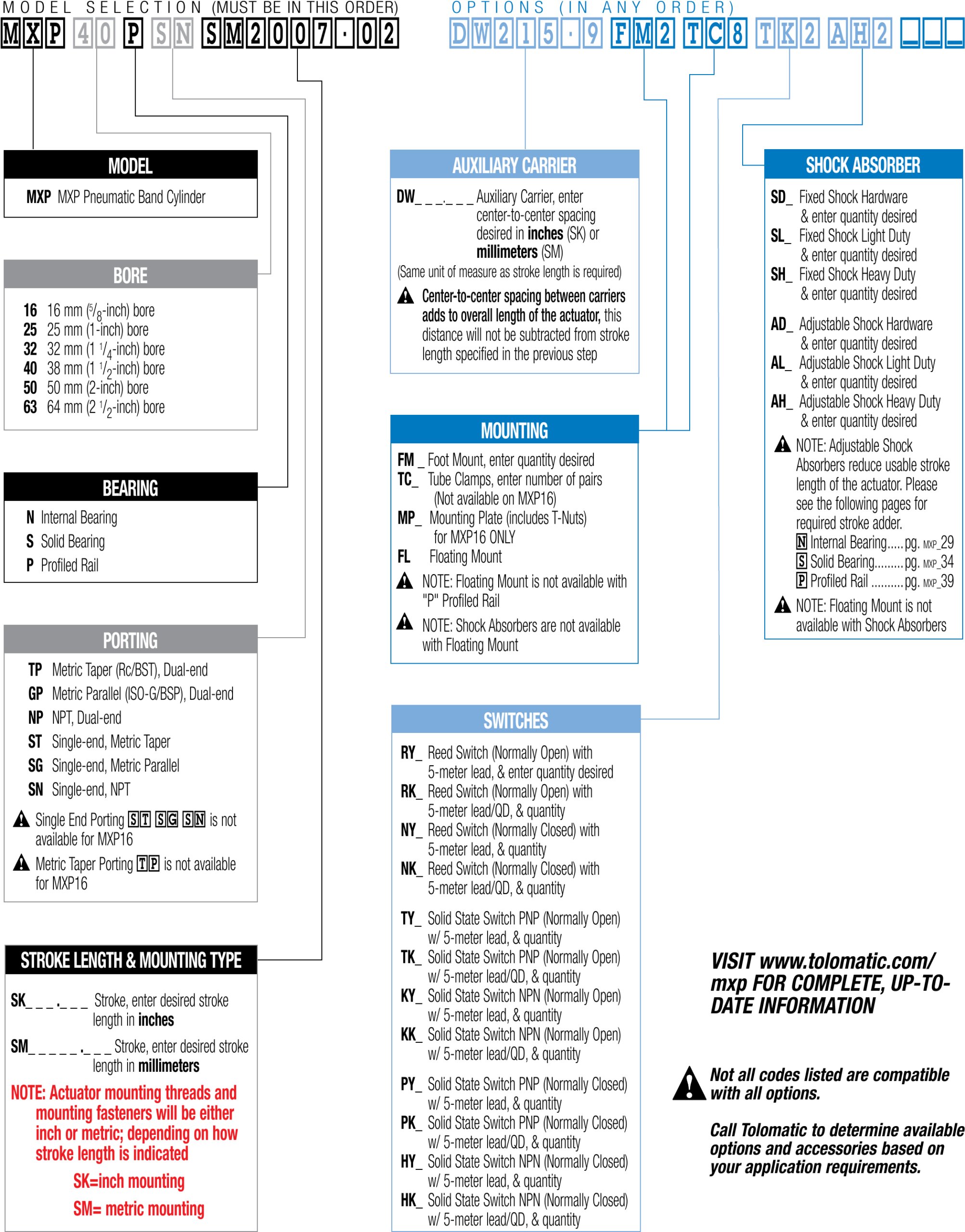

MXP-N Ordering
