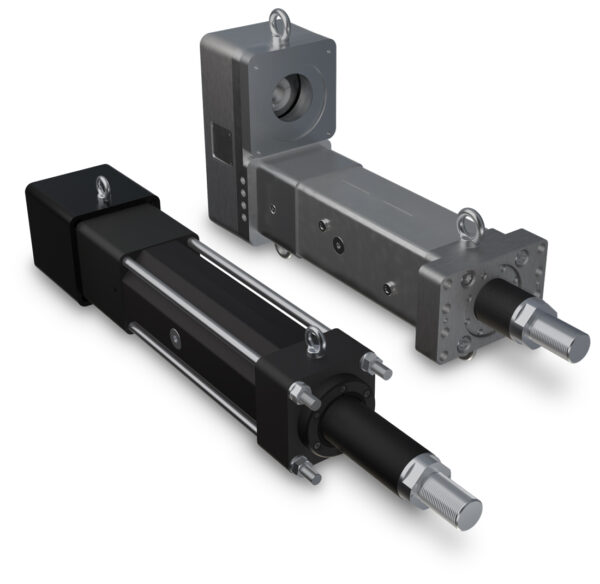

RSX High Force Electric Linear Actuators
Replace hydraulics to eliminate messy leaks and increase system performance
The RSX family of extreme high force electric linear actuators are an excellent alternative to hydraulic cylinders. They’re more efficient, more precise and rugged enough to perform in demanding conditions like extreme cold. Their long life and precision is achieved through the use of Tolomatic’s high precision planetary roller screws. Learn more about the advantages of roller screws.
RSX extreme high force electric linear actuators offer:
- Available in Ball and Planetary roller screw driven designs to fit the needs of your application. Learn about roller screw and ball screw technologies
- Type III hard coat anodized aluminum housing to withstand demanding environments
- Standard thrust rod anti-rotation feature
- IP67 option to protect against dust and water ingress
- Compatible with servo motors and gearboxes up to 290mm frame sizes
- Food grade, white epoxy coating and stainless steel thrust rod option
- Oil filled options for high speed / high duty cycle applications
5 New RSX sizes available with forces up to 66,000 lbs.
NOTE: With recent name change, RSX096 has been renamed RSX15 and RSX128 has been renamed RSX25
RSX high force linear actuators are also available with ball screws based on application.
| Size | RSX10 | RSX15 | RSX20 | RSX25 | RSX33* | RSX23P* | RSX33P* |
|---|---|---|---|---|---|---|---|
| US Conv. | 59 in | 59 in | 50 in | 48 in | 48 in | 28 in | 39 in |
| Metric | 1,500 mm | 1,500 mm | 1,270 mm | 1,220 mm | 1,220 mm | 710 mm | 990 mm |
*Extended linear actuator stroke lengths may require longer lead times. If you’re unsure about how this would apply to your high force application, contact the Tolomatic engineering team.
| Size | RSX10 | RSX15 | RSX20 | RSX25 | RSX33* | RSX23P* | RSX33P* |
|---|---|---|---|---|---|---|---|
| US Conv. | 20,000 lbf | 30,000 lbf | 40,000 lbf | 50,000 lbf | 66,000 lbf | 46,000 lbf** | 66,000 lbf** |
| Metric | 89 kN | 133 kN | 178 kN | 222 kN | 294 kN | 205 kN** | 294 kN** |
**Max. force only in extend
| Size | RSX10 | RSX15 | RSX20 | RSX25 | RSX33* | RSX23P* | RSX33P* |
|---|---|---|---|---|---|---|---|
| US Conv. | 30 in/sec | 30 in/sec | 30 in/sec | 30 in/sec | 20 in/sec | 30 in/sec | 20 in/sec |
| Metric | 760 mm/sec | 760 mm/sec | 760 mm/sec | 760 mm/sec | 510 mm/sec | 760 mm/sec | 510 mm/sec |
Specifications
| Size | RSX10 | RSX15 | RSX20 | RSX25 | RSX33* | RSX23P* | RSX33P* |
|---|---|---|---|---|---|---|---|
| US Conv. | 59 in | 59 in | 50 in | 48 in | 48 in | 28 in | 39 in |
| Metric | 1,500 mm | 1,500 mm | 1,270 mm | 1,220 mm | 1,220 mm | 710 mm | 990 mm |
*Extended linear actuator stroke lengths may require longer lead times. If you’re unsure about how this would apply to your high force application, contact the Tolomatic engineering team.
| Size | RSX10 | RSX15 | RSX20 | RSX25 | RSX33* | RSX23P* | RSX33P* |
|---|---|---|---|---|---|---|---|
| US Conv. | 20,000 lbf | 30,000 lbf | 40,000 lbf | 50,000 lbf | 66,000 lbf | 46,000 lbf** | 66,000 lbf** |
| Metric | 89 kN | 133 kN | 178 kN | 222 kN | 294 kN | 205 kN** | 294 kN** |
**Max. force only in extend
| Size | RSX10 | RSX15 | RSX20 | RSX25 | RSX33* | RSX23P* | RSX33P* |
|---|---|---|---|---|---|---|---|
| US Conv. | 30 in/sec | 30 in/sec | 30 in/sec | 30 in/sec | 20 in/sec | 30 in/sec | 20 in/sec |
| Metric | 760 mm/sec | 760 mm/sec | 760 mm/sec | 760 mm/sec | 510 mm/sec | 760 mm/sec | 510 mm/sec |

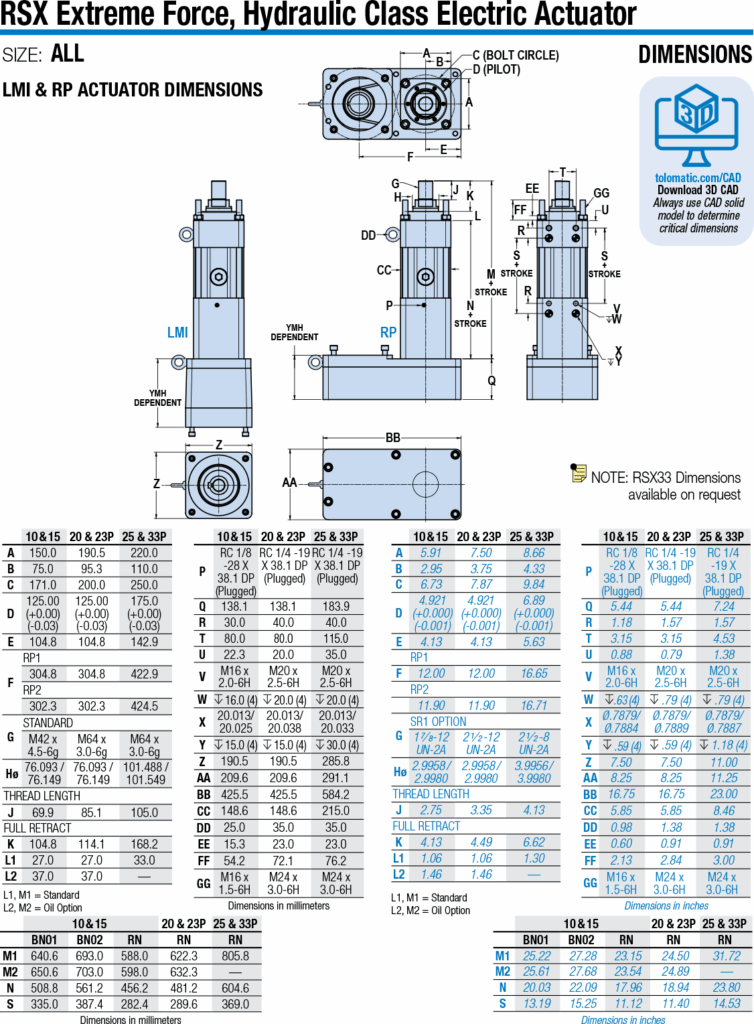

RSX Product Specification
